2750
xinglong
C Type thin blade slitter scorer machine
Computer Type
New
China,Hebei
Customized
Easy to Operate
Provided
1 Year
Provided
High quality

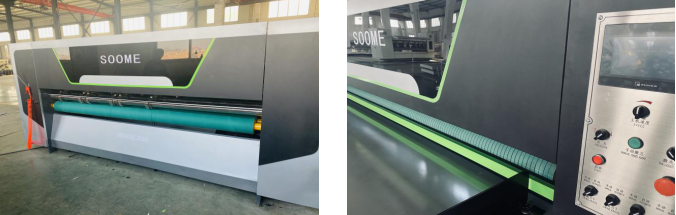

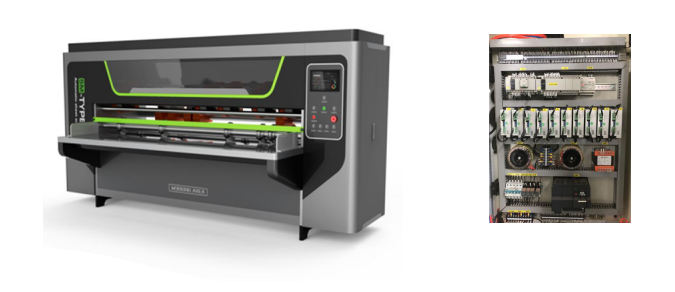

C Type NC Slitter Scorer Machine
MACHINE INTRODUCE:
Human machine interface —PLC control，The system for robot operating system more humanized, simple structure, easy to maintain.
Manual/auto feeder is available.
Pre pressing roller,slitting blade and scorer holder are auto adjusted
Grinding knife is auto/manual
Cardboard thickness and press power are auto adjusted（customer required）
Jog for fine-adjusted
Auto counter
Slitting and press line precision ±0.5mm
Human machine interface —PLC control，cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
Operation humanized.，no technical content，worker use operation use easy。
Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
The two sides of thin blade are cut separately by rubber wheel press board，surmount not scorer,separate plate,off tracking ,to prevent the bad effect of straight line.
This machine can memory 999 group order，don’t need stop machine can change order and manual change order.
TECHNICAL PARAMETERS
Model | SMBD-ANC-2750 | SMBD-ANC-3250 | ||
No.s of slitting scoring | 4/6 5/8 6/10 | |||
Max.production speed | 180m/min | 180m/min | ||
Max.feeding width | Max.slitting size:2250mm | Max.slitting size:2750mm | ||
Max.slitting width | 2600mm | 3100mm | ||
Min.slitting width | 200mm | 200mm | ||
Min.feeding length | 200mm | 200mm | ||
Min.scoring distance | 40*135mm | 40*135mm | ||
Gap adjustment | Manual | Manual | ||
Main motor power | 10kw | 12kw | ||
Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm | ||
Weigh | 2780kg | 2980kg | ||
