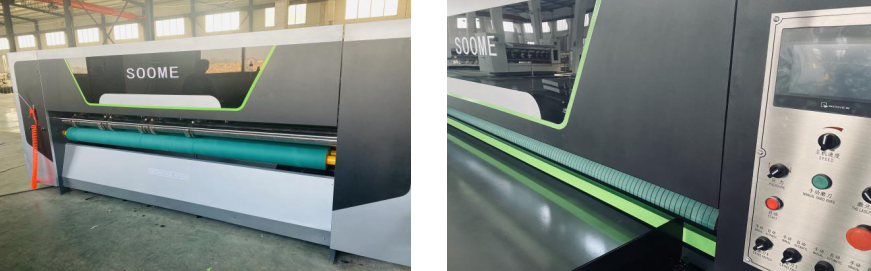

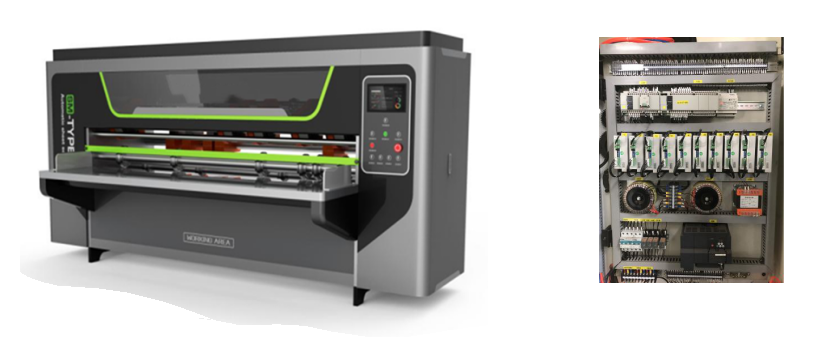

C Type NC Slitter Scorer Machine for corrugated cardboard

C Type NC Slitter Scorer Machine

Functional profile:

Human machine interface —PLC control，The system for robot operating system more humanized, simple structure, easy to maintain.

1.Manual/auto feeder is available

2. Pre pressing roller,slitting blade and scorer holder are auto adjusted

3.Grinding knife is auto/manual

4.Cardboard thickness and press power are auto adjusted（customer required）

5.Jog for fine-adjusted

6.Auto counter

7.Slitting and press line precision ±0.5mm

Auto slitter scorer :

8.Human machine interface —PLC control，cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.

9.Operation humanized.，no technical content，worker use operation use easy。

10Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.

11.The two sides of thin blade are cut separately by rubber wheel press board，surmount not scorer,separate plate,off tracking ,to prevent the bad effect of straight line.

12.This machine can memory 999 group order，don’t need stop machine can change order and manual change order.

TECHNICAL INDEX
