| Quantity: | |
|---|---|
Other
New
Machinery & Hardware
Film
Plastic, Metal, Wood
Semi-Automatic
Electric
220V/380v/410V/440V
11kw-555kw
Hebei, China
XINGLONG
3000kg
customised
CE ISO

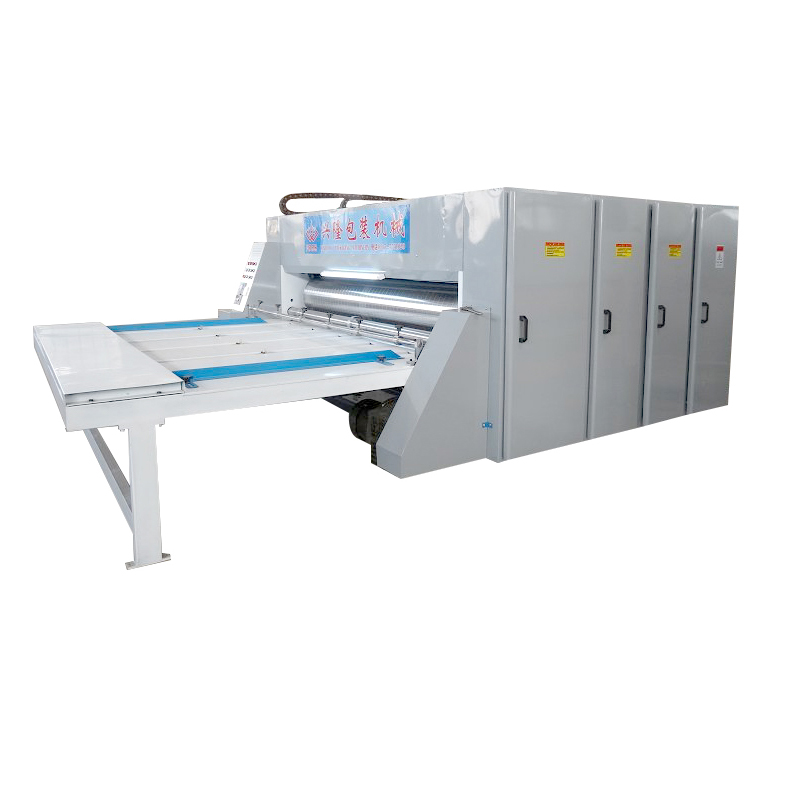

YKW-high speed printing and slotting machine
40-80 Pcs/min
3 Years
Multi Color
Engineers available to service machinery overseas
Description:
1. Chain type hand move feeding cardboard
2. Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately
3. When machine stopped working ink roller can automatic separate with printing roller facer in order to protect it ,
4. Ink roller have the separately turn device to prevent ink dried when machine stopped working
5. Adopt pneumatic locking ,electric separation
6. Ink supply by pneumatic diaphragm pump
7. Main transmission gear made by 45 steel after high frequency quench
8. Transmission part adopt sprinkle lubricating system ,ensure the machine precise and long use time .
Technological parameter:
Model | BYKM 480-2300 | BYKM 480-2600 | BYKM 480-3000 |
Max.feed sheet size | 1400*2200mm | 1400*2500mm | 1400*2900mm |
Effective printing area | 1400*2000mm | 1400*2300mm | 1400*2700mm |
Min.feed sheet size | 350*500mm | ||
Standard thickness of printing plate | 6mm | ||
Design speed | 80 pcs/min | ||
Working speed | 40-60 pcs/min | ||
Printing precision | +/-0.5mm | ||
Thickness of cardboard | 1.2-9mm | ||
3ply/5ply/7ply corrugated production line Customized speed single facer High speed automatic printer slotter
Shaftless mill roll stand Semi automatic gluer Semi automatic stitching machine
Multi color semi auto printer slotter Automatic rotary die cutting machine Rotary slotter grooving machine
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
