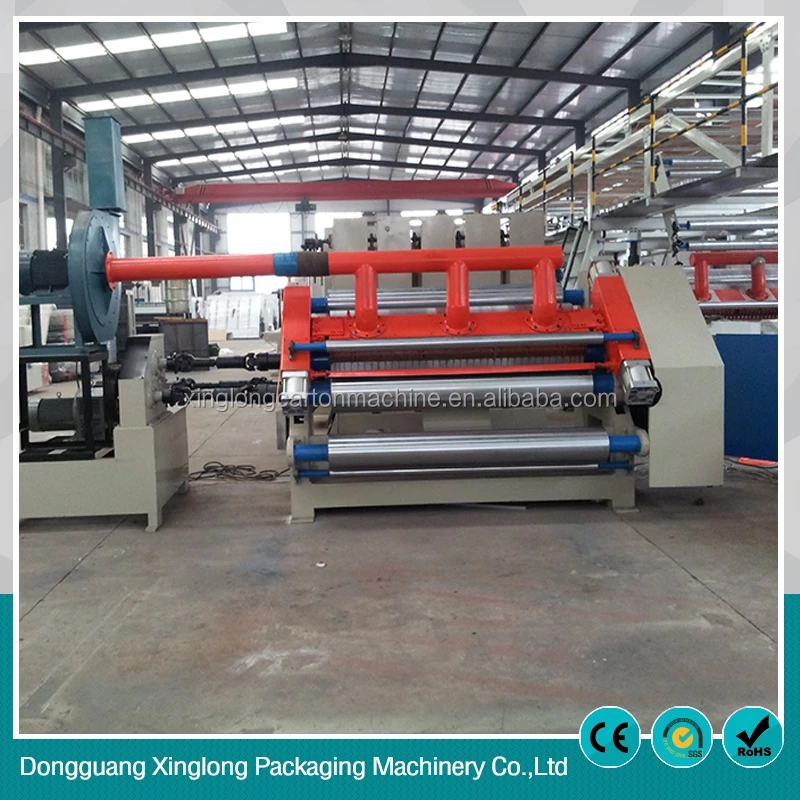

Bottom price cassette type single facer machine

Quantity:
  • Packaging Line

  • New

  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

  • Cartons

  • Paper

  • Automatic

  • Electric

  • 220v/380v

  • 6.6-45KW, 15.5-55kw

  • Hebei, China

  • XINGLONG, Xinglong

  • XL-single facer

  • 112*3*2.5m

  • 12-24ton

  • ISO9001

  • Bottom price cassette type single facer machine

  • 150m/min or customized

  • 1800mm or customized

  • A, B, C, E or depends on your demand

  • 48CrMo alloy stfingerless type single facer machinel or tungsten is op

  • from 50-60degree

  • One year warranty

  • Packaging Line,To make cardboard for two layers

  • Engineers available to service machinery overseas

Bottom price cassette type single facer machine

Specifications:

Design speed

120-180m/min

Effective width

1400-2500mm

Corrugated roller diameter

280-360mm

Flute roller material

48CrMo alloy steel or tungsten is option

Flute type

A, B, C, E flute are available

Flute roller hardness

from 50-60degree

Warranty

one year for spare parts change

Description:

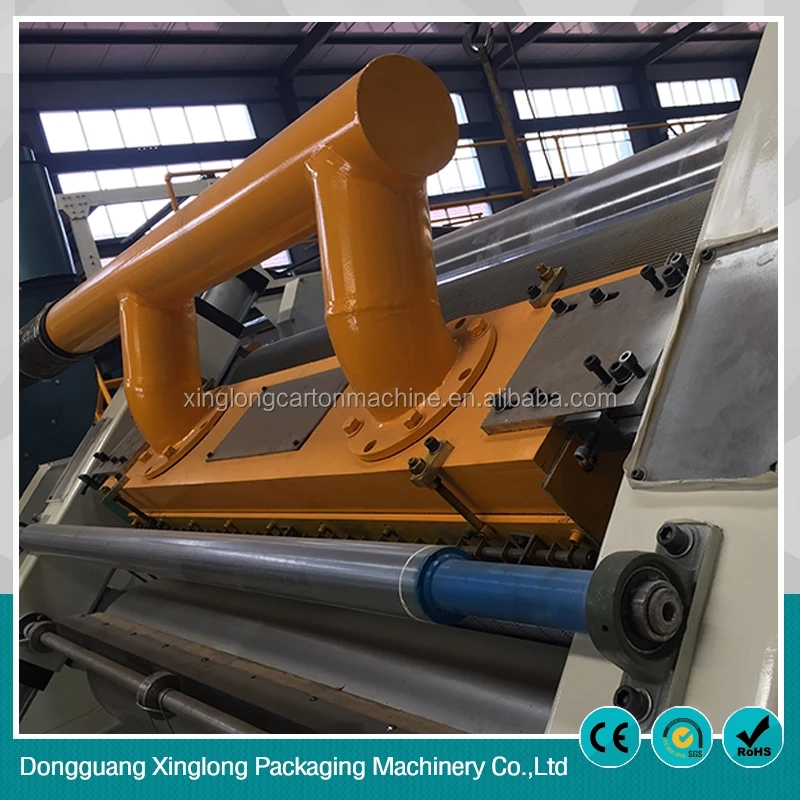

1. Vacuum suction type pulling cardboard with wind control device.
2. Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
3. Use Gimbal drive with independent gear box, transmission more stable, close style gear transmission oiliness lubricated, prolong the use life of gear.
4. The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.
5. Flute roller and pressure roller adopt high temperature resistant lubrication grease.
6. Manual adjust the gluing quantity or electric adjustment.
7. The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. the rigidity is HRC58-60°, the surface are whetted and plating chrome.

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.

If you meet any other questions, please feel free to contact us. click here
