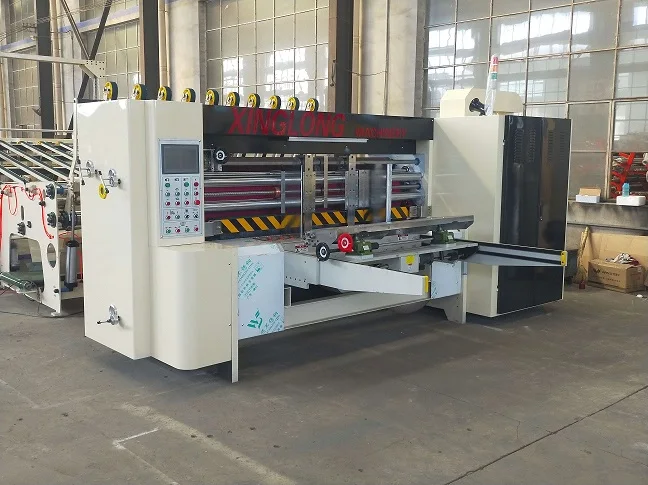

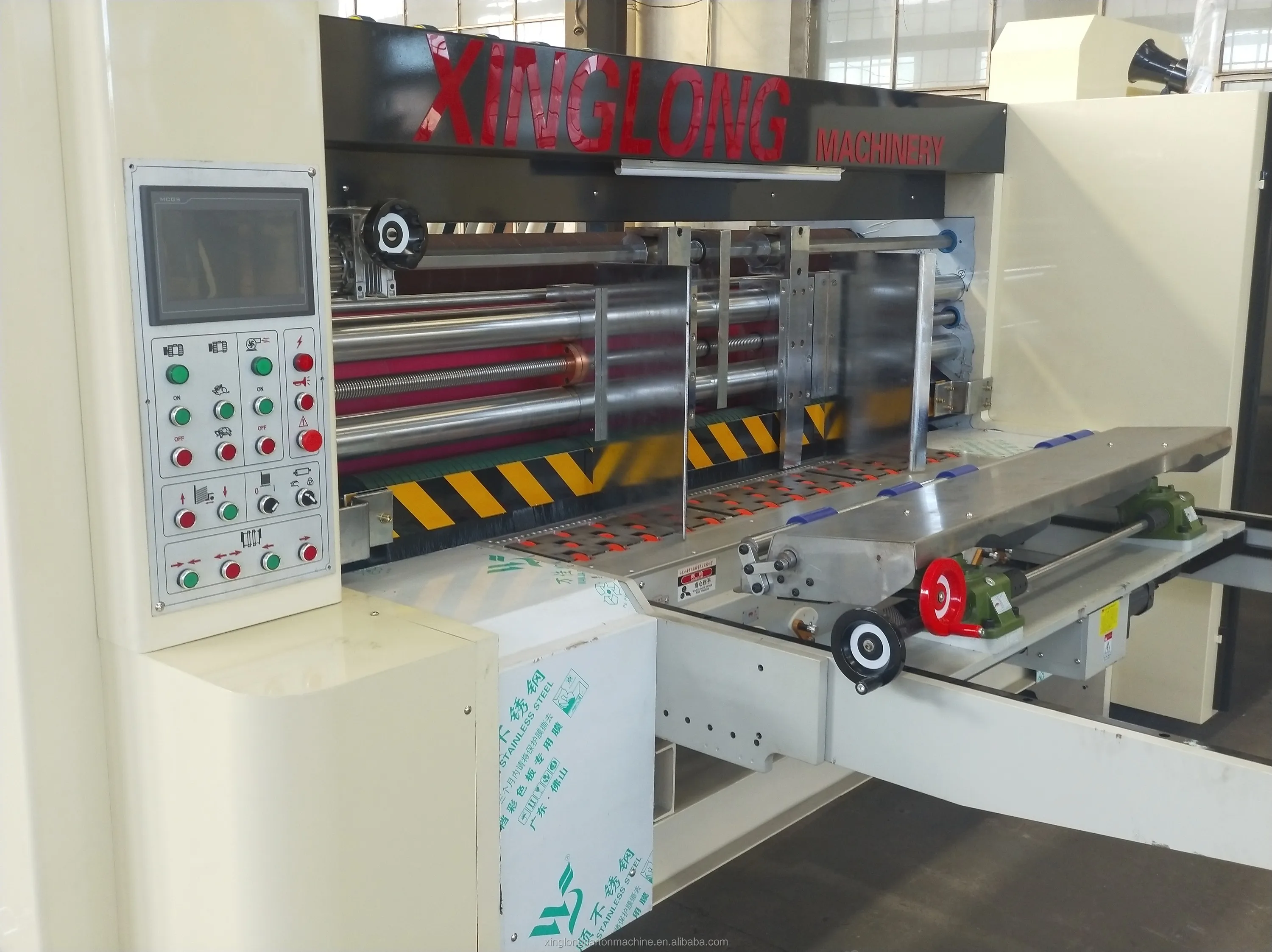

Bottom Price XLMQA -1750 Automatic Rotary Die-Cutting Machine(lead edge feeding)

Quantity:
Inquire Add to Basket

  • Other

  • Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Textiles

  • Cartons

  • Plastic, Wood

  • Automatic

  • Electric

  • 380V 50HZ

  • 4KW

  • Hebei, China

  • XINGLONG

  • about 1500kg

  • customized

  • CE

  • Easy to Operate

  • XLMQA -1750 Automatic Rotary Die-Cutting Machine, Engineers available to service machinery overseas

  • XLMQA -1750 Automatic Rotary Die-Cutting Machine

  • 1450*1350mm

  • 350*500mm

  • 40-60pcs/min

  • 410mm

  • 1 Year

Product Description
Performance:

Feeding part:
1. The machine used roller-type lead edge feeder with adsorption system, feeding fast and high accurately.
2. Fan motor is frequency type, air volume can be adjusted arbitrarily.
3. Phase adjustment by computer control, planetary gear type in 360 degree, fast and accurate.
4. The front baffle is adjusted by hand synchronously, the side baffle is adjusted by computer, and the rear gearbox is adjusted
by electric driving.
5. Grooving glue surface of the paper guiding roll, preventingdamages to strength of cardboard and increasing the accuracy of
paper feeding.

Die-cutting part

1. Die cutting rolls are made of high quality steel, wall thickness 30m,dynamic balance correcting, hard chromium plating.
2. The wallboard is made of high quality cast iron material HT200, wall thickness 50mm.
3. Gears after high frequency heating and surface finishing.
4. 4. Soft rollers adopts automatic grinding mechanism, which can be repaired for 3-4 times , improving the reusing rate of
rubber sleeve.
5. 5. The soft roller adopts mechanical cam type, moves transversely +40mm, keeps wear and tear of the rubber evenly and
prolongs the service life of the rubber sleeve.
6. 6. Automatic compensation of line speed，to ensure that each batch of carton size is exactly the same.
7. 7. Adopt “Maxdura” brand anvil cover, install conveniently, more than 12 million times die-cutting. (CUE, and DEPAIR brand
for option).
8. 8. The gears are made of 40Cr material, six grade grinding , lower noise and longer service life.
9. Spray lubrication system is adopted in this machine, works simple and efficient.
10. 1 The die cutting rollers adopts automatic cylinder separation device,to reduce wear of rubber pad.

Electronic control part:

1. 1. Man machine interface, fullcomputer PLC precision control system.
2. The main motor is variable frequency motor.
3. The front and rear control panel is concise and centralized, convenient operation.
4. 4. System of complete machine is unitedly controlled by photo, electricity and gas.

5.Adopt famous brand electric accessories.

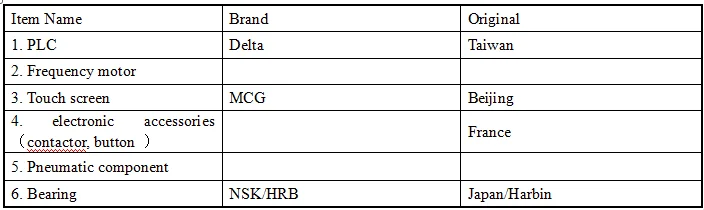

Electric accessories:
Packing&Shipping
After Sales Service
INSTALL MACHINE IN THAILAND CUSTOMER'S FACTORY
Warranty: One year since the buyers get the machines. The supplier are not responsible for the maintenance, however, if machine
had any quality problems (excluding the problem issued by the voltage instability and wrong operation) the sellers can supply the
spare parts (except the damageable parts) to the buyers free for charge.
Company Introduction
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to
visit our company.

2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are
also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned
us a high reputation among the customers.

3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.

4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
