Bestselling paper board pizza box rotary die cutter making machine

Quantity:
  • Other, automatic
  • Manufacturing Plant, Food & Beverage Factory, Farms
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
  • Film, Case
  • Plastic, Wood
  • Automatic
  • Electric
  • 380/440
  • 5kw
  • Hebei, China
  • xinglong
  • 5 T
  • 580*420*210
  • CE,SGS
  • Easy to Operate
  • Engineers available to service machinery overseas, Overseas service center available
  • 150pcs/min
  • customized
  • oe year
  • wooden cases, wooden pallets
  • carton forming
  • Making Carton
  • corrugated carton
  • Auto Feed
Product Description

corrugated carton making machinery rotary die cutting machine

  1. lead edge feeding ,save manpower,high speed.

  2. Youli cushion imported from Taiwan or germany

  3. Double-warm abrasive belt cushion correction facility.

  4. Cushion axial floating automatically to improve the utilization rate of cushion.The range of floating is 0-20mm(from middle to left or right)

  5. Speed difference self-compensating function.

  6. The axial  adjustment of platen roller is electric/manual, range:0-20mm(left to right )

  7. Die-cutting phase is adjusted by electric planet gears, keyless junction.


model
AM1224
design speed
180pcs/min
working speed
150pcs/min
die cutting roller dia.
405/480/540mm

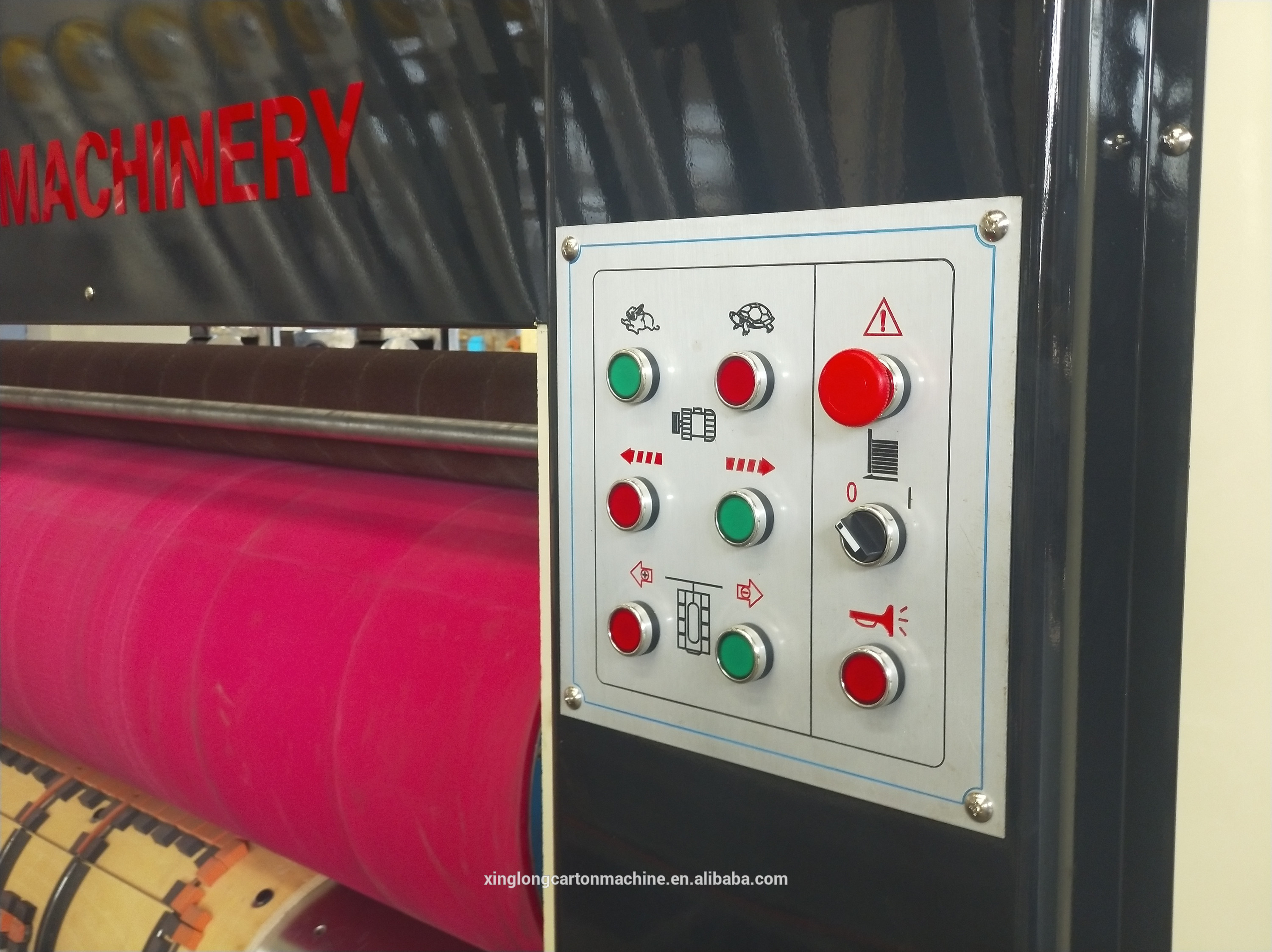

Die-Cutting Part

1. Die-cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating.
2. Wallboard for high-quality cast iron material, 50mm thickness, and large processing center production.
3. Soft-roll automatic grinding institutions to pouches repeat usage, grinding 3-4times;
4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;
5. Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;
6. Mechanical soft roll about 40 mm lateral movement , the pads wear uniform;
7. 40cr material the use of grinding gears for 6,low noise long life;
8. Die-cutting roller cylinder automatic separation devices to reduce wear pouches.

Paper Feeding Part

1. Adsorption automatic feeder, one-slotting, Cut corner, creasing, drilling.
2. Feed 10,000 per hour speed, precision die-cutting from+0.75mm to-0.75mm
3. Phase planetary gear used electric adjustment, turn on and turn down were quick adjustment.
4. Before manually adjust block cardboard side block electric adjustment
5. Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy.
