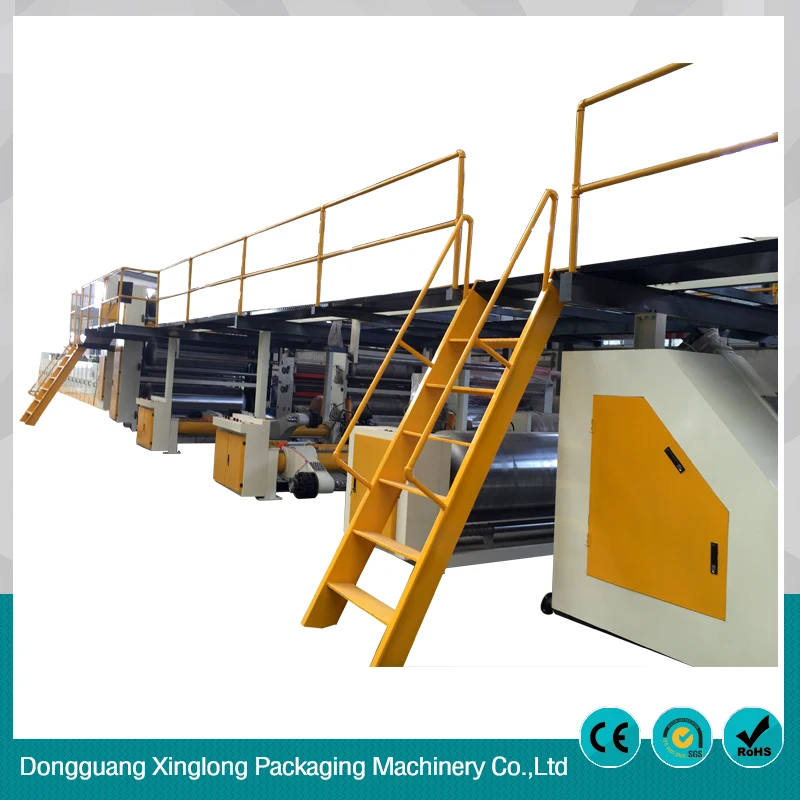

Packaging Line, used corrugated carton box making line
New
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Cartons
Plastic
Automatic
Electric
AC380V 50Hz 3PH
About 150KW
Hebei, China
Xinglong
XL- 5 layer box making machine
Customized
About 130T
ISO9001

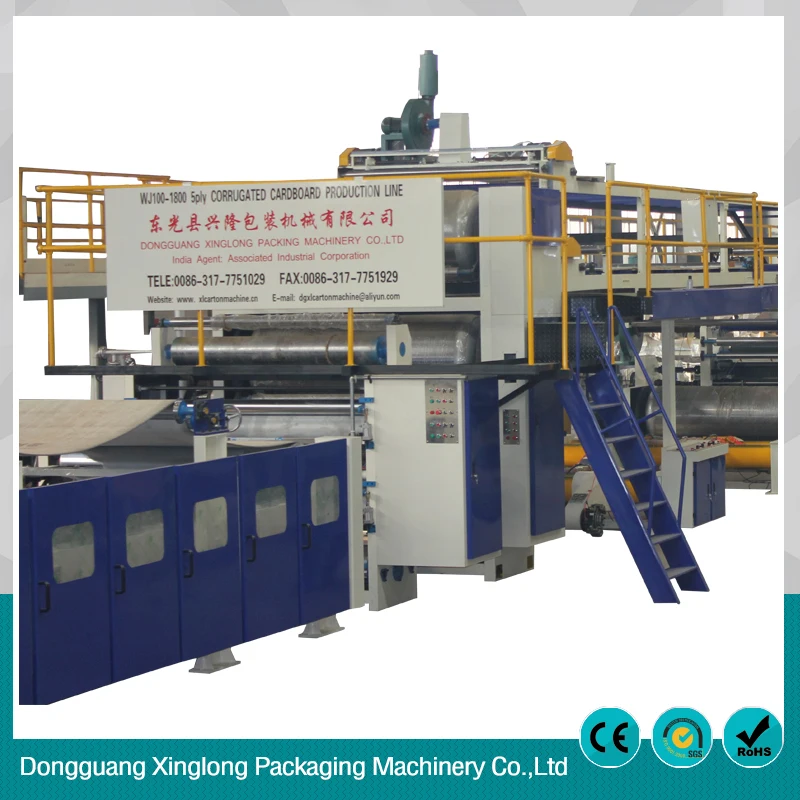

High performance 5 layer fruit carton box making machine
150m/min
100-120m/min
1600-2200mm or customized
Customized
5 layer
±1mm
A, C, B, E(Depends on the customer's requirement)
One year
Engineers available to service machinery overseas

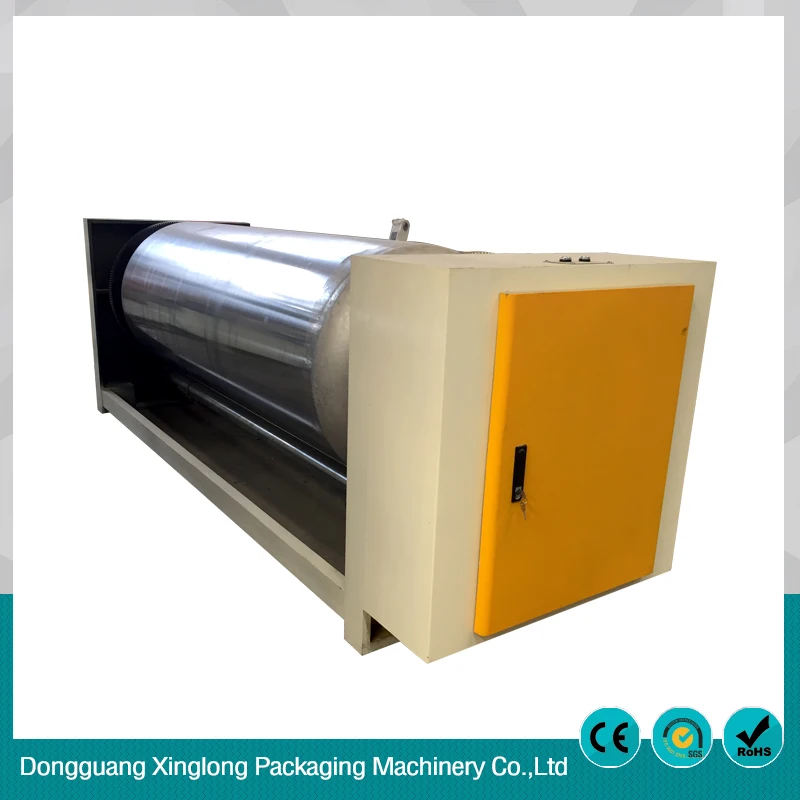

No. | Machine name | Remarks |
1 | Mill roll stand | Full hydraulic control, pneumatic control brake, inner expansion chuck, hydraulic station adopt Taiwan product, multiple point tension control. |
2 | Railing and track | Include railing and track. |
3 | Pre-heater | Diameter 1000mm, electric adjust wrapping angle |

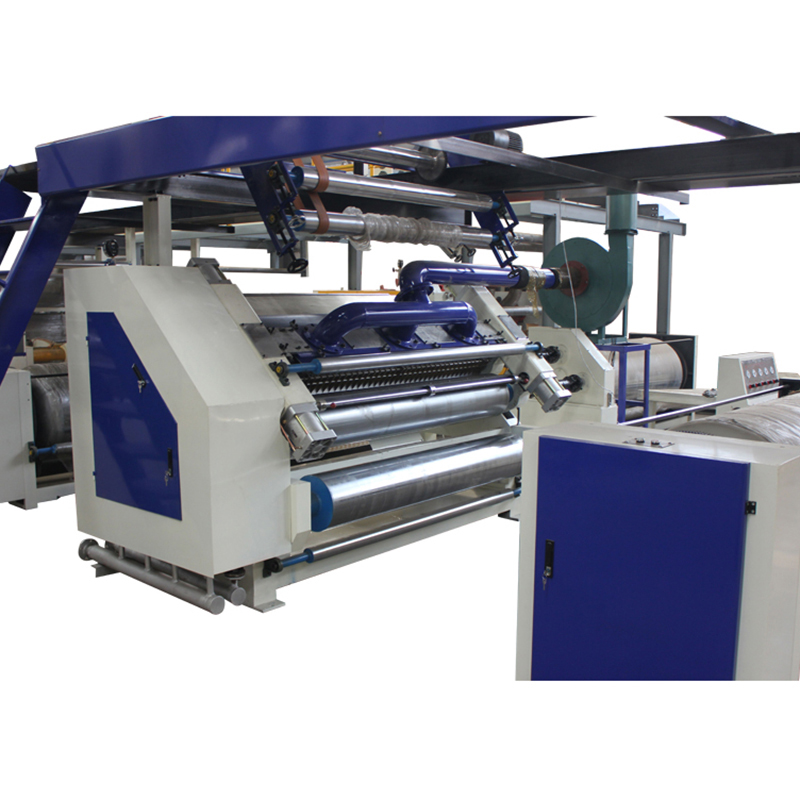

4 | Single facer | Corrugating roll diameter 360mm, adopt 48CrMo alloy steel, main bearing adopt Japan NSK brand,gluing part could level move out from machine,gluing holder adopt stainless steel,according to the speed PLC automatic adjust the glue thickness. |
5 | Pre-conditioner | Diameter 1000mm, electric adjust wrapping angle |
6 | Single layer bridge conveyer | Frequency adjust wind adsorption, electric correct error device. |
7 | Pre-heater | Diameter 1000mm, electric adjust wrapping angle |
8 | Gluing machine | Gluing roll diameter 318mm,main beating adopt Japan NSK brand,stainless steel glue plate, according to the speed PLC automatic adjust the glue thickness. |

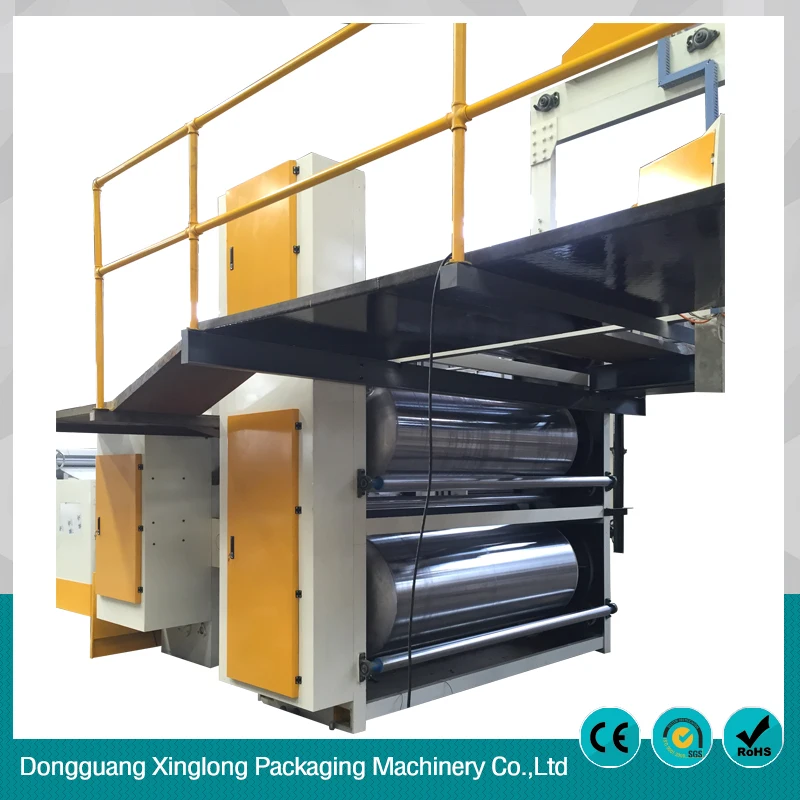

9 | Double facer | Heating plants 600mm×20sets,surface do treated and chromed, pneumatic tension, hydraulic lift-down, include cotton belt |
10 | Main drive | Independent reducer box, gimbal driving. |
11 | NC slitter scorer | Changing order time 8-10 seconds,computer type, 6 blade 10 scorer. |
12 | NC cutoff | adopt Germany servo driver |
13 | Gantry Stacker | Belt level output,transmit two parts. |
14 | Glue making system | Include main pot 1 set, carrier pot 1 set, and storage pot 2set, include glue station pump, single facer glue pump and gluing machine glue pump. Circle supply glue, pipeline provided by customer |
15 | Pneumatic system | Include steam-water separator and gas storage pot, pipeline and air-compressor supply by customer. |
16 | Electric system | Whole line main motor frequency adjust speed, electric part adopt ABB or Schneider product, Motor and reducer adopts Taiwan Teco product, imported transducer. |
17 | Steam system | Adopt imported brand valve and drain valve, pipeline provided by customer |
Drawing
If you are also interested in the following product, please click the link
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have more than 20 years manufacturing experience of different kinds of box making machines in China. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our machine is running well in more than 20 countries. If there have any quality problems, We will help you at any time.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us. click here
No. | Machine name | Remarks |
1 | Mill roll stand | Full hydraulic control, pneumatic control brake, inner expansion chuck, hydraulic station adopt Taiwan product, multiple point tension control. |
2 | Railing and track | Include railing and track. |
3 | Pre-heater | Diameter 1000mm, electric adjust wrapping angle |
4 | Single facer | Corrugating roll diameter 360mm, adopt 48CrMo alloy steel, main bearing adopt Japan NSK brand,gluing part could level move out from machine,gluing holder adopt stainless steel,according to the speed PLC automatic adjust the glue thickness. |
5 | Pre-conditioner | Diameter 1000mm, electric adjust wrapping angle |
6 | Single layer bridge conveyer | Frequency adjust wind adsorption, electric correct error device. |
7 | Pre-heater | Diameter 1000mm, electric adjust wrapping angle |
8 | Gluing machine | Gluing roll diameter 318mm,main beating adopt Japan NSK brand,stainless steel glue plate, according to the speed PLC automatic adjust the glue thickness. |
9 | Double facer | Heating plants 600mm×20sets,surface do treated and chromed, pneumatic tension, hydraulic lift-down, include cotton belt |
10 | Main drive | Independent reducer box, gimbal driving. |
11 | NC slitter scorer | Changing order time 8-10 seconds,computer type, 6 blade 10 scorer. |
12 | NC cutoff | adopt Germany servo driver |
13 | Gantry Stacker | Belt level output,transmit two parts. |
14 | Glue making system | Include main pot 1 set, carrier pot 1 set, and storage pot 2set, include glue station pump, single facer glue pump and gluing machine glue pump. Circle supply glue, pipeline provided by customer |
15 | Pneumatic system | Include steam-water separator and gas storage pot, pipeline and air-compressor supply by customer. |
16 | Electric system | Whole line main motor frequency adjust speed, electric part adopt ABB or Schneider product, Motor and reducer adopts Taiwan Teco product, imported transducer. |
17 | Steam system | Adopt imported brand valve and drain valve, pipeline provided by customer |
Drawing
If you are also interested in the following product, please click the link
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have more than 20 years manufacturing experience of different kinds of box making machines in China. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our machine is running well in more than 20 countries. If there have any quality problems, We will help you at any time.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us. click here
