BFY Thin blade slitter scorer

  • BD2400

  • xinglong

  • New

  • Cartons

  • Electric

  • Hebei,China

  • xinglong

  • customzied

  • Provided

  • Provided

  • Video technical support

  • Ordinary Product

BFY Thin blade slitter scorer

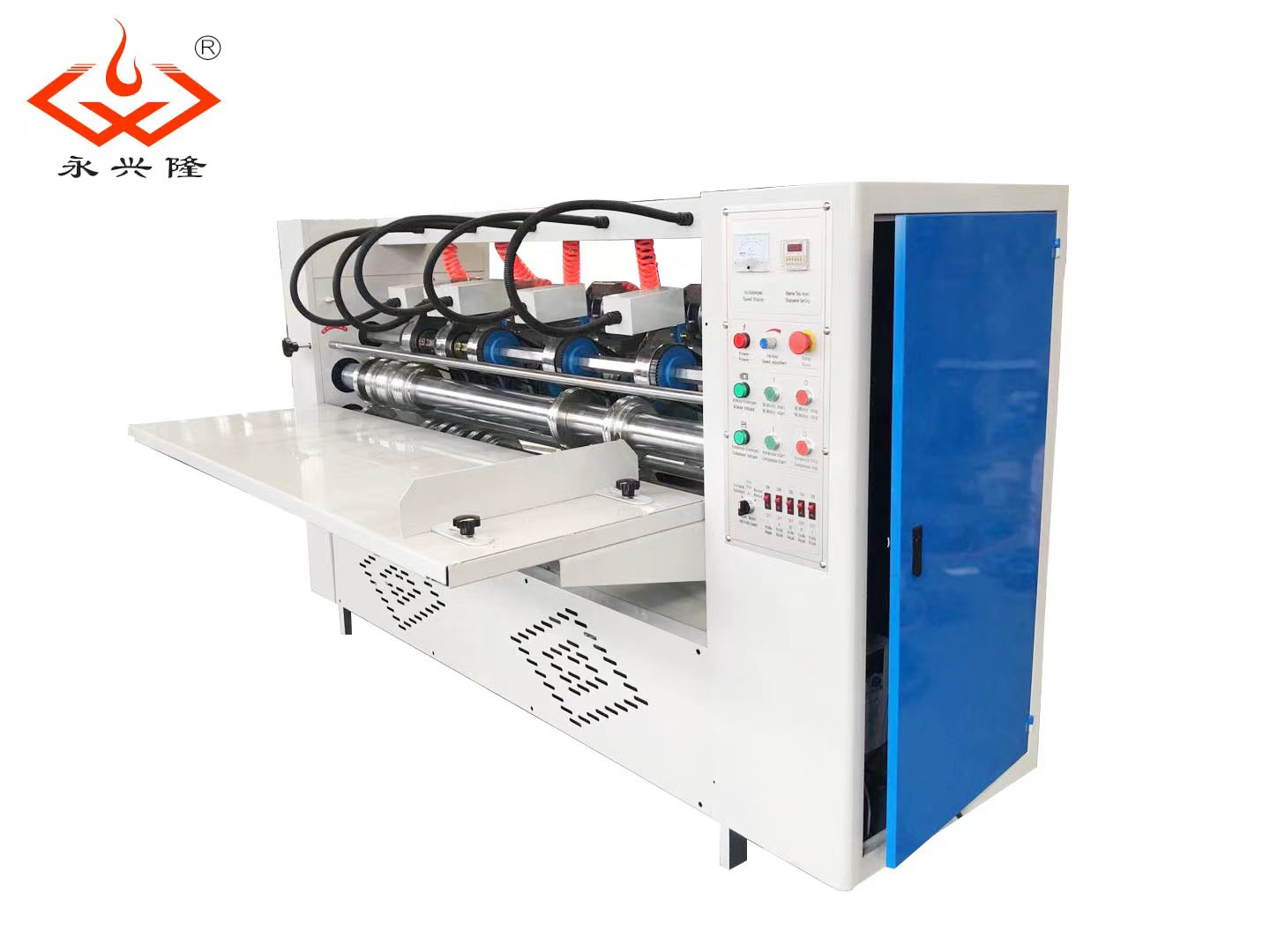

sliter scorer1

Main Use and Characteristics:

1.It adopts thin blade slit, and it is sharp after grind, slitting cardboard edge smooth.

2.First creasing, then slitting, and then pull paper

3.It adopts manual and automatic grind blade type, it can choose grind and stop grind time, keep blade is sharp and cardboard edge smooth.

4.Blade lifting mechanism, it can switch blade according to sli5tting number.

5.Manual regulate crease width

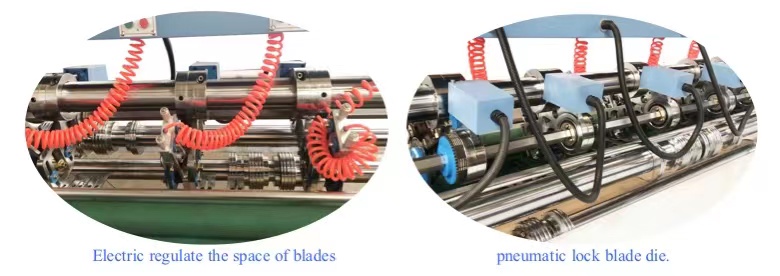

6.Option:Electric regulate the space of blades, pneumatic lock blade die.

slitter scorer细节

Main Technology Parmater

Model BD2000 BD2400
Max sheet width(mm) 1800 2200
Max machine speed 80m/min 80m/min
Slitting knife Qty 4 /5/6 pcs 4 /5/6 pcs
Scorer Qty

6 /8/10 pcs

6 /8/10 pcs

Min slitting width 130*130*260mm 130*130*260mm
Min scorer width 45mm 45mm
Blade out diameter 200mm 200mm
Blade thickness 1.3mm(alloy steel) 1.3mm(alloy steel)
Motor power



Pressure <0.6mpa


Machine dimension 2400×730×1500mm 2800×730×1500mm
Machine weight About 1300kg About 1600kg
Wall thickness 40mm 40mm

关于兴隆why choose us1

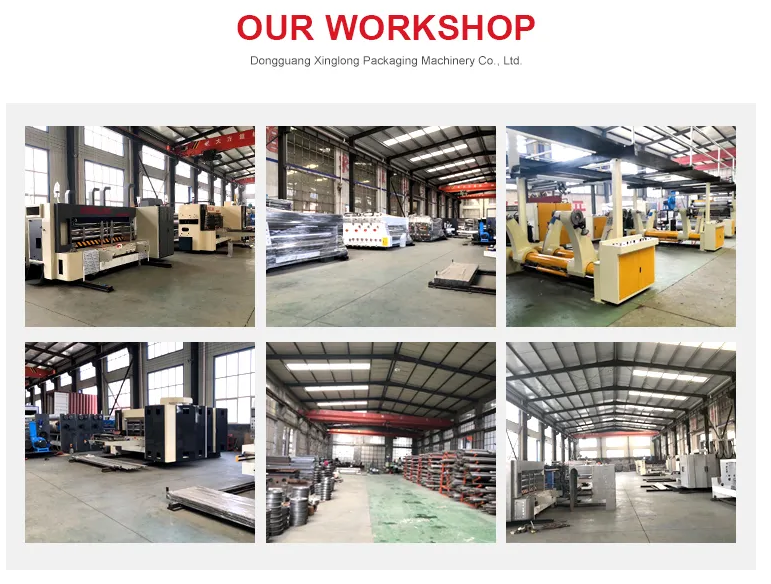

why choose us11why choose us111获奖我们工厂客户来访售后
