BFY Thin blade slitter scorer machine

Availability:
Quantity:
  • BD2400
  • xinglong
  • Thin blade slitter scorer machine
  • New
  • Ordinary Product
  • China,Hebei
  • 1 Year
  • Easy to Operate
  • Semi automatic
  • Provided
  • Provided
  • Manual

封面(蓝)1

BFY Thin Blade Slitter Scorer Machine


普通薄刀机

 Main Use and Characteristics:

  • It adopts thin blade slit, and it is sharp after grind, slitting cardboard edge smooth.

  • First creasing, then slitting, and then pull paper

  • It adopts manual and automatic grind blade type, it can choose grind and stop grind time, keep blade is sharp and cardboard edge smooth.

  • Blade lifting mechanism, it can switch blade according to slitting number.

  • Manual regulate crease width

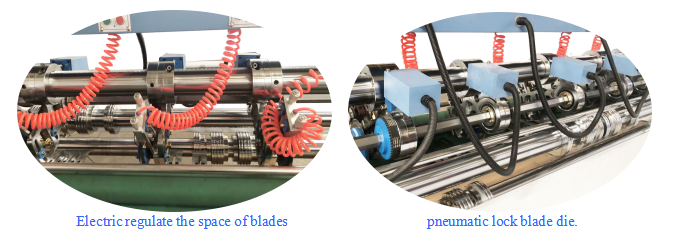

  • Option:Electric regulate the space of blades, pneumatic lock blade die.

普通薄刀机1


 Main Technology Parameter:

Model

BD2000

BD2400

Max sheet width(mm)

1800

2200

Max machine speed

80m/min

80m/min

Slitting knife Qty

4 /5/6 pcs

4 /5/6 pcs

Scorer Qty

6/8/10 pcs

6 /8/10 pcs

Min slitting width

130*130*260mm

130*130*260mm

Min scorer width

45mm

45mm

Blade out diameter

200mm

200mm

Blade thickness

1.3mm(alloy steel)

1.3mm(alloy steel)

Motor power

7.5kw

7.5kw

Pressure

<0.6mpa

<0.6mpa

Machine dimension

2400×730×1500mm

2800×730×1500mm

Machine weight

About 1300kg

About 1600kg

Wall thickness

40mm

40mm

详情(蓝)why choose usconnect us (蓝)
