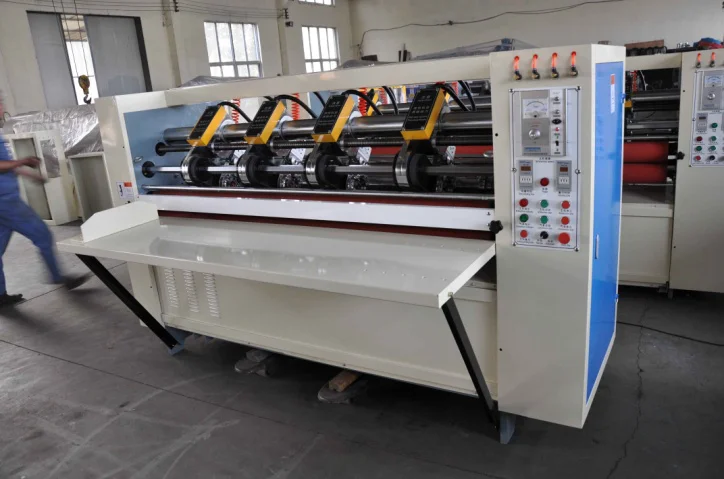

BFY-DDP Thin blade slitter scorer

Quantity:
  • Other
  • Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
  • Cartons
  • Plastic, Wood
  • Automatic
  • Electric
  • 380v 50hz
  • 4kw
  • Hebei, China
  • XINGLONG
  • about 1500kg
  • customized
  • CE
  • Easy to Operate
  • BFY-DDP This blade slitter scorer, Engineers available to service machinery overseas
  • BFY-DDP This blade slitter scorer
  • 2000mm
  • 100pcs/min
  • 4pcs
  • 6pcs
  • 140mm
  • 30mm
  • 200mm
  • 1 YEAR
Product Description

Main Use and Characteristics:

  • Electric regulate the space of blades, pneumatic lock blade die.
  • It adopts thin blade slit, and it is sharp after grind, slitting cardboard edge smooth.
  • First creasing, then slitting, and then pull paper
  • It adopts manual and automatic grind blade type, it can choose grind and stop grind time, keep blade is sharp and cardboard edge smooth.
  • Blade lifting mechanism, it can switch blade according to slitting number.
  • Manual regulate crease width

Main Technology Parameter:

Sheet Width(mm)

2000

2200

Max machine speed

100pcs/min

100pcs/min

Slitting knife number

4pcs

4pcs

Scorer number

6pcs

6pcs

Min slitting width

140mm

140mm

Min scorer width

30mm

30mm

Blade out diameter

200mm

200mm

Blade thickness

1.3mm(alloy steel)

1.3mm(alloy steel)

Motor power

4.0kw

4.0kw

Pressure

0.4mpa

0.4mpa

Machine dimension

3200×1600×1500

3200×1600×1500

Machine weight

About 1500kg

About 1500kg


Packing&Shipping
After Sales Service
Install machinery in customer's factory
Warranty: One year since the buyers get the machines. The supplier are not responsible for the maintenance, however, if machine had any quality problems (excluding the problem issued by the voltage instability and wrong operation) the sellers can supply the spare parts (except the damageable parts) to the buyers free for charge.

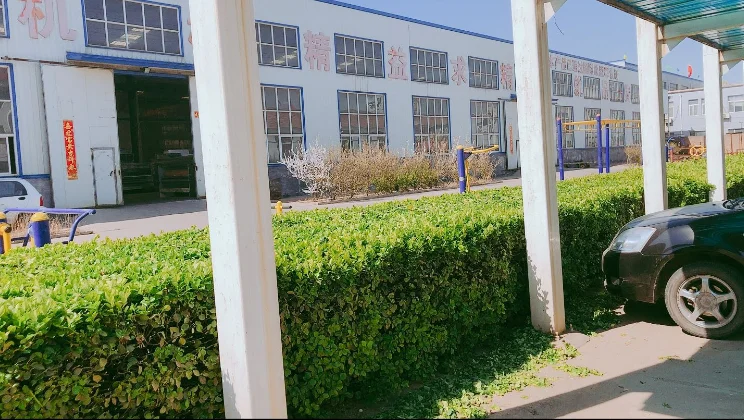

Company Introduction
FAQ

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

3. Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.
