BFY2000
xinglong
BFY thin blade slitter scorer machine
Customized
Manual feeding
1 Year
1 Year
New
Provided
China,Hebei
Ordinary Product
High quality

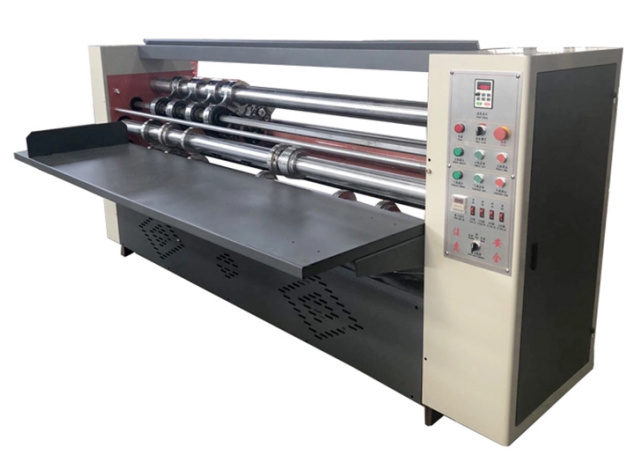

BFY-2000 Thin Blade slitter scorer Machine
Main Use and Characteristics:
It adopts thin blade slit, and it is sharp after grind, slitting cardboard edge smooth.
First creasing, then slitting, and then pull paper
It adopts manual and automatic grind blade type, it can choose grind and stop grind time, keep blade is sharp and cardboard edge smooth.
Blade lifting mechanism, it can switch blade according to sli5tting number.
Manual regulate crease width
Option：Electric regulate the space of blades, pneumatic lock blade holder.
Main Technology Parameter:
| Model | BFY2000 |
| Max sheet width (mm) | 1800 |
| Max machine speed | 80m/min |
| Slitting knife number | 4pcs |
| Scorer number | 6pcs |
| Min slitting width (mm) | 130*130*260 |
| Min scorer width (mm) | 45 |
| Blade out diameter | 200mm |
| Blade thickness | 1.3mm (alloy steel) |
| Motor power | 4.0kw |
| Pressure | ＜0.6mpa |
| Machine dimension (mm) | 2600*730*1500 |
| Machine weight | About 1100kg |
BFY-2000 Thin Blade slitter scorer Machine
Main Use and Characteristics:
It adopts thin blade slit, and it is sharp after grind, slitting cardboard edge smooth.
First creasing, then slitting, and then pull paper
It adopts manual and automatic grind blade type, it can choose grind and stop grind time, keep blade is sharp and cardboard edge smooth.
Blade lifting mechanism, it can switch blade according to sli5tting number.
Manual regulate crease width
Option：Electric regulate the space of blades, pneumatic lock blade holder.
Main Technology Parameter:
| Model | BFY2000 |
| Max sheet width (mm) | 1800 |
| Max machine speed | 80m/min |
| Slitting knife number | 4pcs |
| Scorer number | 6pcs |
| Min slitting width (mm) | 130*130*260 |
| Min scorer width (mm) | 45 |
| Blade out diameter | 200mm |
| Blade thickness | 1.3mm (alloy steel) |
| Motor power | 4.0kw |
| Pressure | ＜0.6mpa |
| Machine dimension (mm) | 2600*730*1500 |
| Machine weight | About 1100kg |
