Packaging Line
New
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Cartons
Paper
Automatic
Electric
380v/410v/440v 50Hz
15 kw
Hebei, China
XINGLONG
XL
33.5*2*1.5 m
about 2500 kg
CE
OPTIONAL
100-150pcs/min
Engineers available to service machinery overseas
Automatic sun wheel feeding die cutting carton machine

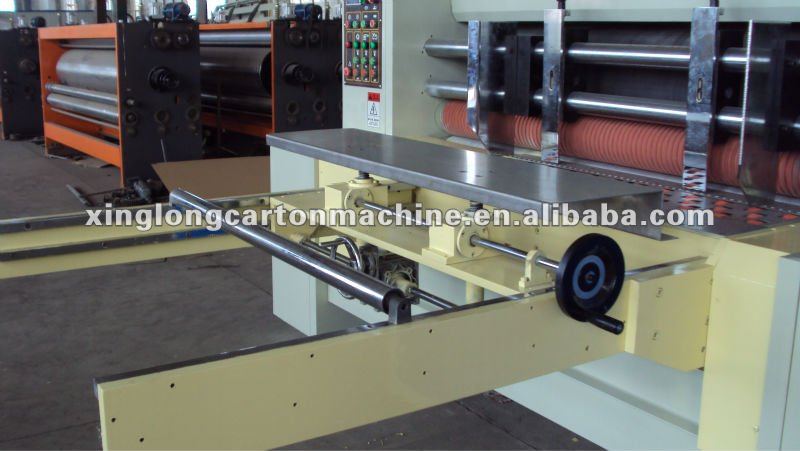

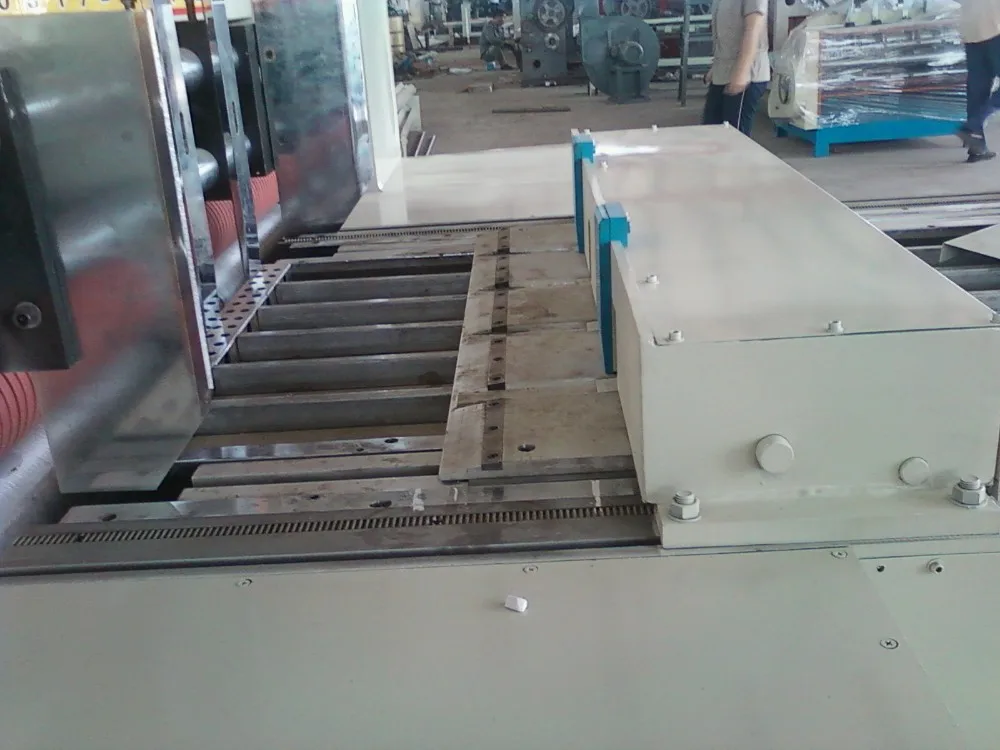

Paper feeding unit:
1. Adopt back-kick feeding system with vacuum adsorption auxiliary feed. (optional equipment Lead edge feeding system)
(lead edge feeding or called sun feeder)
(kick feeder)
2. Speed: 6000sheets/h, die-cutting precision: ±0.75mm
3. Manual adjust former block board, and electric adjust lateral block board
4. Leading paper roll have groove glue surface to prevent the crushed cardboard and increase the accuracy of feeding.
Die-cutting unit:
1. Die-cutting roller is made of quality steel the thickness is 30mm, balance correction, plating chrome
2. The wallboard is quality casting iron the thickness is 50mm

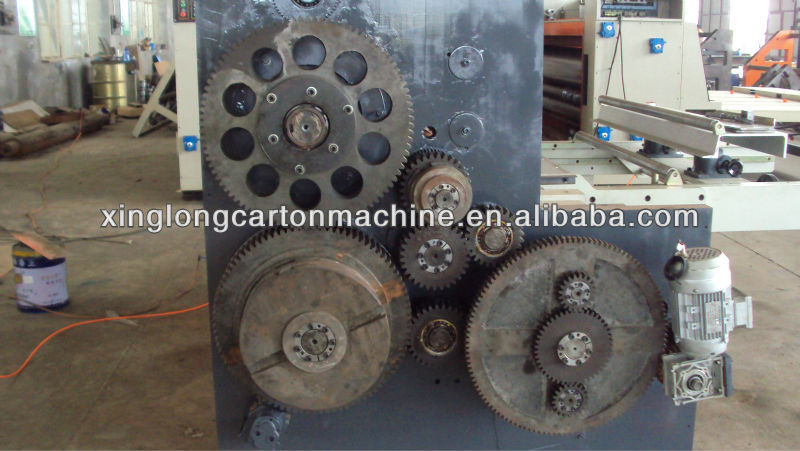

3. All of gears with high frequency hot treatment, surface is grinded.
4. Rubber roll with automatic repair mechanism, improve rubber using life, can repair 3-4 times.
5. Lind speed automatic compensation to ensure that each batch of cartons die-size is fully consistent
6. Quality Rubber from Taiwan, CUE of American or ASTIN of Italy
7. Adopt key-free connection, no gap cross slide adjusting.
8. Adopt planet type electric digital display phase adjustment in 360 degree
9. Die-cutting roll with automatic move horizontally 40mm
10. Used of one couple of die to performing die-cutting and molded board separate from waste paper automatically.
Electrical appliance unit:
1. Main unit adopts adjustable speed motor.
2. Former and back control panel are concise concentration, easy to operation.
3. The machine is consisted of light, electricity and gas joint control system
4. The electrical appliance used of brand production.
Main Technology Parameter:
Model | Roller diameter | Max over sheet size | Min over sheet size | Speed | Main Motor |
MQJ-1500 |
φ410 | 1600*1350mm | 400*500mm | 80-100pcs/min | 5.5kw |
MQJ-1750 | 1850*1350mm | 400*500mm | 80-100pcs/min | 5.5kw | |
MQJ-2000 | 2100*1350mm | 400*500mm | 80-100pcs/min | 5.5kw | |
MQJ-2250 | 2350*1350mm | 400*500mm | 80-100pcs/min | 7.5kw | |
MQJ-2500 | 2600*1350mm | 400*500mm | 80-100pcs/min | 11kw | |
MQJ-1500 |
φ487 | 1600*1350mm | 400*500mm | 80-100pcs/min | 5.5kw |
MQJ-1750 | 1850*1350mm | 400*500mm | 80-100pcs/min | 5.5kw | |
MQJ-2000 | 2100*1350mm | 400*500mm | 80-100pcs/min | 5.5kw | |
MQJ-2250 | 2350*1350mm | 400*500mm | 80-100pcs/min | 7.5kw | |
MQJ-2500 | 2600*1350mm | 400*500mm | 80-100pcs/min | 11kw |
• Our factory is a professional corrugated cardboard carton box making machines manufacturer
for over 20 years.
• We can provide every customer superior quality products at competitive price.
• If you have any interests about the machine, please feel free to contact me.
• Betty zhang
WhatsApp/Skype:15100856622
• DONGGUANG XINGLONG PACKING MACHINERY CO., LTD.
• ADD: MAHAI INDUSTRIAL AREA SOUTH TO DONGGUANG COUNTY, HEBEI PROVINCE,
CHINA
