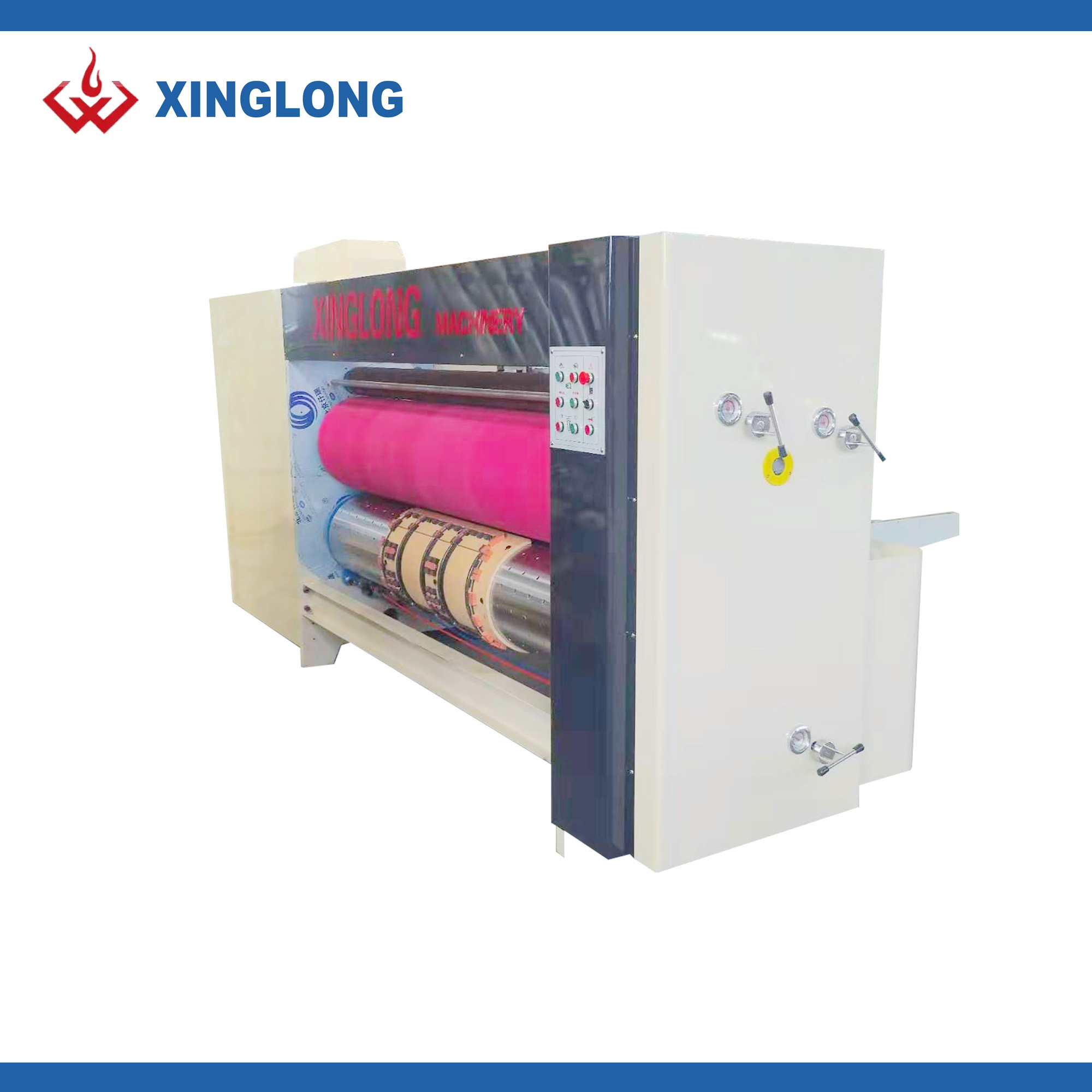

Automatic lead edge rotary die cutting machine for corrugated carton box making machine

Quantity:
  • Other
  • 1.5 years, 1 year
  • Manufacturing Plant, packaging
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, packing
  • Cartons, Bags, Case
  • Plastic, Paper, Metal, Wood
  • Automatic
  • Electric
  • 380V
  • 5.5KW
  • China,HeBei
  • XINGLONG
  • 2000KG
  • 2000*3000mm*2500mm
  • CE,ISO90001
  • Long Service Life
  • Engineers available to service machinery overseas
  • AM-1020
  • 2000*1000mm
  • 350*630mm
  • L12500*W3000*H1600
  • 2-10mm
  • 140pcs/min
Product Description

Function and uses:
The machine adopts automatic lead edge feeding system and double roller rotary type. It can perform all process of slitting,
creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, high speed ,long
service life and low cost.


PARAMETER
Model
AM-918
AM-1020
AM-1222
AM-1424
Max. Cardboard size
1800×900mm
2000*1000mm
2200*1200mm
2400*1400mm
Min. Cardboard size
350×630mm
350*630
350*630
350*700mm
Total power
5.5kw
5.5kw
7.5kw
7.5kw
Max. speed
140pcs/min
130pcs/min
120pcs/min
100pcs/min
Adoptable thickness of paperboard
2-10mm
2-10mm
2-10mm
2-10mm



Main characteristics:

▓Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.▓The lead edge feeding has the advantages of good stability, fast working speed, low failure rate and high efficiency.▓The rubber feeding roller with resorte device, feeding accurately, stably, not destroy paperboard strength if the feeding space is very small.▓The left and right side baffles adopt electric control , the back baffles adopt electric adjustment, the front baffle space manual sync adjustment.▓Equipped with colors touch screen take 360 degree set to die roller, display product speed and set production quantity.▓Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber▓When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.▓Adopt high-quality Germany Depair rubber pad.▓The roller is made of cast steel, with a wall thickness of 45mm,▓Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.▓Electrically adjusted phase die-cutting position▓The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.

Related Products
After Sales Service
●We can send engineers to users factory install machine and traininng.
● we will provide layout, elecric drawing and related documents
● warranty: 1year



FAQ
1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
