AFG2800
xinglong
New
xinglong
Hebei,China
Easy to Operate
Provided
Provided
Automatic
Electric
Cartons,Film
1 Year

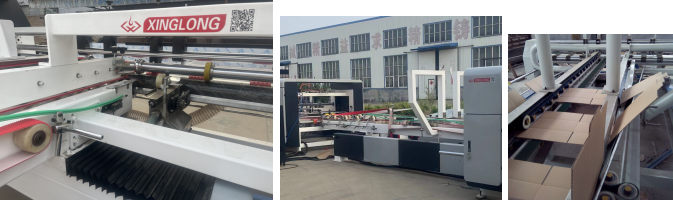

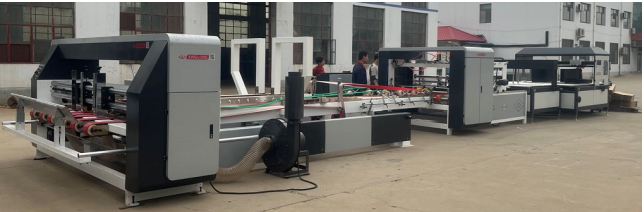

Auto folder gluer + PP strapping inline

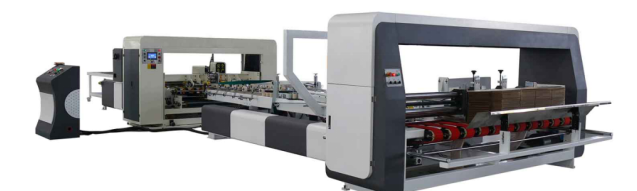

AFG Series Automatic Folder Machine
MACHINE FEATURE
AFG Automatic folder gluer machine mainly consists of three parts:feeding part,folding gluing part and stacking counting part,full machine frame made by good quality.steel welded.It adopts PLC programming control,touch screen operation and frequency conversion to adjust speed.The average speed about 150 sheets/min ,with high speed,saves power labor.
Feeding part
Belt type lead edge with vacuum suction feeding system is more better to feed bend board.
Good quality electromagnetic clutch and brake system,feeding part can be controlled separately,easy operation.
Scorer wheel is adjustable,it suit to cardboard thickness 2-8 mm
It can do second scorer,so correct bad creased board.

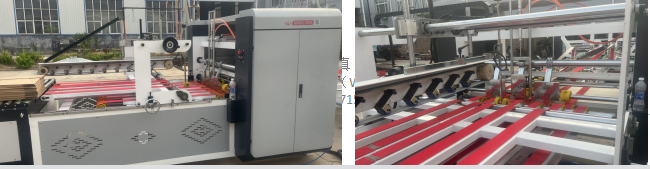

Folding & gluing part
Simple structure,glue amount can be adjustable,easy clean
It adopts stainless steel gluing wheel,gluing even,no fault save glue amount.
Automatically gluing,recycle glue,never stop,don't need add glue by hand,save time and power.
Imported wearable rubber belt convey board,automatically folding .
Equipped with board correction and scorer correction device.
Counting & Stacking part
Stacking and counting are simple and reliable
Digital control,easy operation and reliable.Non-stop enter data,automatically counting and output accurately.
With correction function,correct deviation
Counting and output by pneumatic control,fast and accurately
MAIN TECHNOLOGY PARAMETERS
Model | AFG2800 |
Max cardboard size | 1200×2400 |
Min cardboard size | 170*425 |

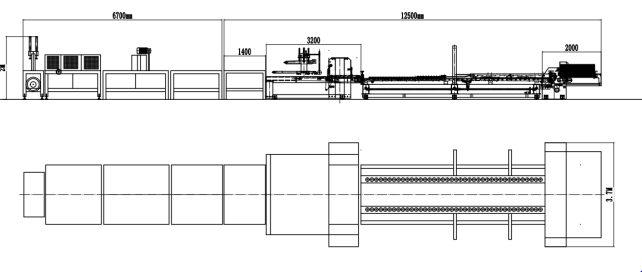

Dimension | L12500*W32008*H1600 |
Motor power | 12kw |
Machine weight | 5500kg |

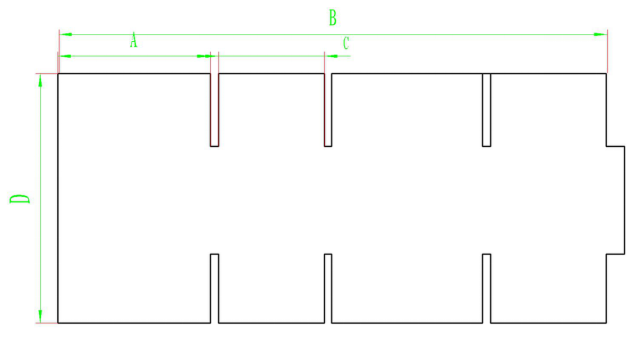

Carton Size:
Model | AFG2800 | |
A | Max | 800mm |
Min | 130mm | |
B | Max | 2500mm |
Min | 420mm | |
C | Max | 400mm |
Min | 70mm | |
D | Max | 1200mm |
Min | 170mm |

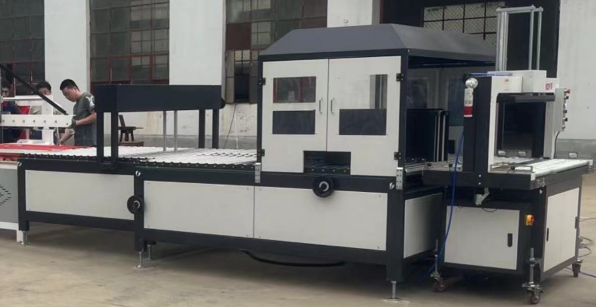

Auto PP strapping machine
MACHINE FEATURE
The strapping machine consists of three units.paper conveyor and steering unit,gather align unit and no-man power strapping unit.
This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery ,electricity and gas.
Fast packing speed:PLC control,stable performance,compact packing time,faster.
Operating capacity:9-18 pieces/min;
Working environment:the relative humidity is less than or equal to 90%,the temperature is 0-40 degrees Celsius,and the noise is less than or equal to 75 dB(A);
The bandwidth is 5 mm(9mm optionally);the tape reel specification:the inner diameter of the paper core with the ring is 200-210 mm,the outer diameter of the belt ring is 400-450mm,and the band width is 175-190mm;
Bonding method: hot fusion;
The bonding mode:the bottom is adhered,the bonding surface is more than or equal to 90 percent,the deviation of the bonding position is less than or equal to millimeters,and the bundling tightness is 0-45Kg;
Air source pressure:0.5-0.8MPa;roller material:stainless steel;roller diameter:50mm,wall thickness:1.2-1,5mm;
Transportation speed:0-50m/min;
Auto folder gluer + PP strapping inline
AFG Series Automatic Folder Machine
MACHINE FEATURE
AFG Automatic folder gluer machine mainly consists of three parts:feeding part,folding gluing part and stacking counting part,full machine frame made by good quality.steel welded.It adopts PLC programming control,touch screen operation and frequency conversion to adjust speed.The average speed about 150 sheets/min ,with high speed,saves power labor.
Feeding part
Belt type lead edge with vacuum suction feeding system is more better to feed bend board.
Good quality electromagnetic clutch and brake system,feeding part can be controlled separately,easy operation.
Scorer wheel is adjustable,it suit to cardboard thickness 2-8 mm
It can do second scorer,so correct bad creased board.
Folding & gluing part
Simple structure,glue amount can be adjustable,easy clean
It adopts stainless steel gluing wheel,gluing even,no fault save glue amount.
Automatically gluing,recycle glue,never stop,don't need add glue by hand,save time and power.
Imported wearable rubber belt convey board,automatically folding .
Equipped with board correction and scorer correction device.
Counting & Stacking part
Stacking and counting are simple and reliable
Digital control,easy operation and reliable.Non-stop enter data,automatically counting and output accurately.
With correction function,correct deviation
Counting and output by pneumatic control,fast and accurately
MAIN TECHNOLOGY PARAMETERS
Model | AFG2800 |
Max cardboard size | 1200×2400 |
Min cardboard size | 170*425 |
Dimension | L12500*W32008*H1600 |
Motor power | 12kw |
Machine weight | 5500kg |
Carton Size:
Model | AFG2800 | |
A | Max | 800mm |
Min | 130mm | |
B | Max | 2500mm |
Min | 420mm | |
C | Max | 400mm |
Min | 70mm | |
D | Max | 1200mm |
Min | 170mm |
Auto PP strapping machine
MACHINE FEATURE
The strapping machine consists of three units.paper conveyor and steering unit,gather align unit and no-man power strapping unit.
This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery ,electricity and gas.
Fast packing speed:PLC control,stable performance,compact packing time,faster.
Operating capacity:9-18 pieces/min;
Working environment:the relative humidity is less than or equal to 90%,the temperature is 0-40 degrees Celsius,and the noise is less than or equal to 75 dB(A);
The bandwidth is 5 mm(9mm optionally);the tape reel specification:the inner diameter of the paper core with the ring is 200-210 mm,the outer diameter of the belt ring is 400-450mm,and the band width is 175-190mm;
Bonding method: hot fusion;
The bonding mode:the bottom is adhered,the bonding surface is more than or equal to 90 percent,the deviation of the bonding position is less than or equal to millimeters,and the bundling tightness is 0-45Kg;
Air source pressure:0.5-0.8MPa;roller material:stainless steel;roller diameter:50mm,wall thickness:1.2-1,5mm;
Transportation speed:0-50m/min;
