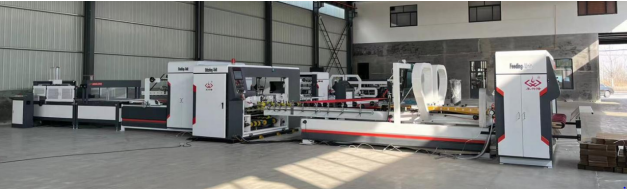

Automatic folder gluer and stitcher machine

  • QS-1600

  • xinglong

  • New

  • Hebei,China

  • xinglong

  • 600time/min

  • 1-99

  • 1 Year

  • Provided

  • Ordinary Product

  • Video technical support

  • Electric

Auto folder gluer and stitcher machine


Main parameters


Model QS-2600

Gluing Stitching
Max.sheet size (A+B)*2 (mm) 2400
Min.sheet size (A+B)*2 (mm) 420 680
Max.Carton length A (mm) 780
Min.Carton length A (mm) 130 210
Max.carton width B (mm) 580
Min.carton width B (mm) 80 170
Max.sheet height (C+D+C) (mm) 1200
Min.sheet height (C+D+C) (mm) 170 300
Max.C (mm) 430
Min.C (mm) 50
Max.height D (mm) 700
Min.height D (mm) 100
Carton tongue width E (mm) 35-40
Nail distance (mm) 30-150
Speed 120m/min 50-70sheet/min
Nail No. 1-99
Wire size

Width 1.85 * thickness 0.75

Total power 20.81HP
Nail speed (time/min) 600
Dimension   (M)

Length 1500mm width 3500height 1800mm

Machine weight  (T) 7.5T
Working air pressure 0.8Mpa
Installation size

Length 1500mm width 3500height 1800mm

Working voltage

220/380/440v or customized

Operator 2-3 workers

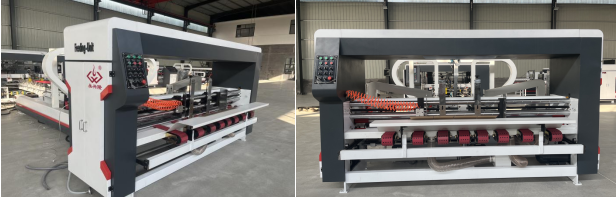

1.Feeding unit


  • Pneumatic side racket device (operating side), can set the frequency of the racket paper on the screen.

  • The drive shaft is attached to the friction clutch to avoid misoperation and damage to the machine.

  • The active motor activates the automatic protection device.

  • All steel quality, more stable, smooth side U mouth, no front mouth, to avoid damage to personnel.

  • The delivery system is controlled by 8 full adsorption belts, and the paper delivery is more accurate, more stable, more durable, to maximize the long-term normal use of the machine.

  • Manual adjust the wind to control the vacuum flow and pressure to match the cardboard size.

  • The air volume can be adjusted to control the vacuum air flow and pressure to match the cardboard size

  • From the front positioning, reduce the paper delivery error, improve the accuracy of the paper delivery

  • The left and right baffle positions are electrically controlled, which can be directly input parameters on the screen to complete the positioning.

  • Electric control before and after, speed up the setting speed.

  • The gap of the front baffle board is manually adjusted, convenient and fast.

  • Can be continuous or skip paper feeding.

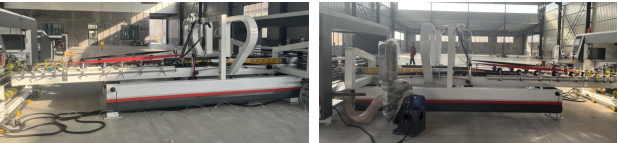

2.Folding gluing unit


  • This fold is composed of 70mm bottom synchronous band and 60mm wide duct belt.

  • The left and right sides complete the second folding line 180 degrees and the fourth folding line 180 degrees completely bonded.

  • The left and right guide wheels are adjusted according to different positions to smooth the folding box, and the lower bearing supports the guide belt to operate correctly.

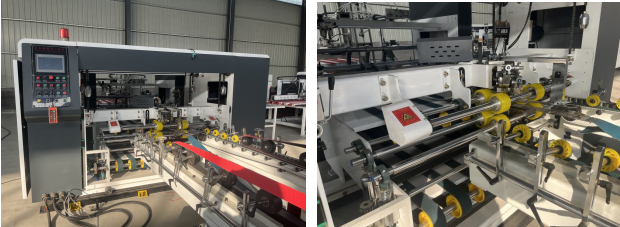

3.Stitching gluing pressing unit


  • The corrected carton is sent to the nail box by four flat wheels, which can be adjusted by themselves according to the thickness of the cardboard.

  • The nailing part can be double nailing and single nailing high speed nose. Under the servo and brake and electric eye drive, the nailing speed exceeds 600 nails / minute, which is directly related to the spacing between the nails.

  • When the nail box is switched to the paste box, the nail head will automatically lift, the speed of the nail box part will cooperate with the host, and the whole machine can move left and right sideways.

4.Stacker unit


  • Automatic counting, photoelectric + infrared point control

  • Automatic stacking, faster, more accurate, more efficient.

Auto PP strapping machine

Technical parameter

Model 1200
Max package size 1200mm*1200mm*400mm (L*W*H)
Belt size Width 5mm Thickness:0.5-0.55m
Speed 9-18 units/min
Machine weight 2000kgs
Dimensions 2100*5040*1670mm
Transportation speed 0-50 m/min
Air source pressure 0.5-0.8Mpa
Bundling tightness 0-45Kg
