Automatic folder gluer Machine and PE bundling Machine

Availability:
Quantity:
  • AFG2800

  • xinglong

  • New

  • Electric

  • China,Hebei

  • Ordinary Product

  • 1 Year

  • Customized

  • Automatic

  • Provided

  • Provided

  • Video technical support

封面(蓝)1

Auto folder gluer machine and PE bundling machine

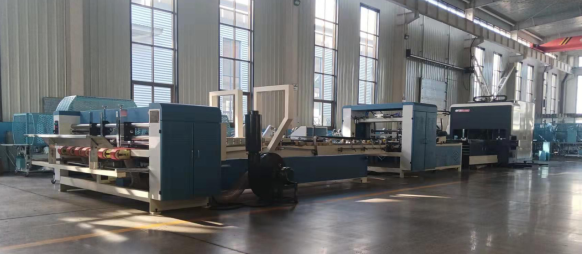

AFG2800粘箱

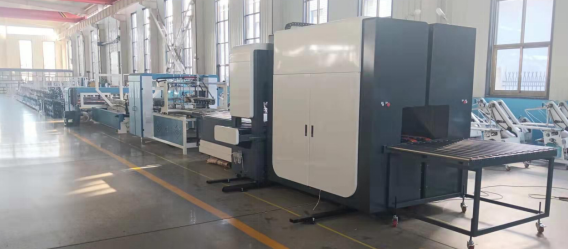

AFG2800粘箱1

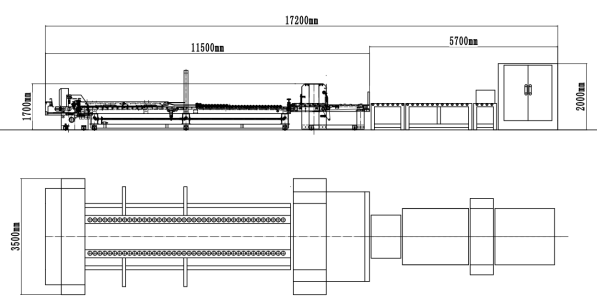

Ground drawing

AFG2800粘箱2

Machine details

AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .

It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed.  The average speed about 150sheets/min, with high speed, saves power and labor.

HX-1400Z fully automatic bounding machine, combined with foreign advanced technology, using domestic and foreign first-class brand accessories, to achieve high stability, high speed, high automation as the goal, truly enable users to achieve high efficiency, energy saving and labor saving. A complete set of the machine is connected to any domestic brand of automatic box sticking machine, automatic nail box machine, the whole machine adjustment using touch screen control, PLC operation, simple operation, stable operation, the maximum processing speed up to 25 packs per minute, solve the problem of restricting the speed of the carton back road binding and packing, not only save 1-2 operators, but also Can further improve the automatic box gluing machine, stitching machine speed, really improve the efficiency.

Main Technology Parameters:

Model

AFG2800

Max cardboard size

1200×2400

Max cardboard size

170*425

Dimension

L12500*W3200*H1600

Motor power

12kw

Machine weight

5500kg

 Carton Size:

AFG2800粘箱3

Model


AFG2800

A

Max

800mm

Min

130mm

B

Max

2400mm

Min

420mm

C

Max

400mm

Min

70mm

D

Max

1200mm

Min

170mm

PE bundling machine

AFG2800粘箱4

Packing parameters

AFG2800粘箱5

         Bundling size parameters
Size Min. Max.
A 360
1300
B 260
1300
C 100
290
D 220
900
E 50
260
