| Quantity: | |
|---|---|
2200
xinglong
Automatic
China,Hebei
Ordinary Product
New
Provided
Easy to Operate
Provided
1 Year
Customized
Automatic feeding paper

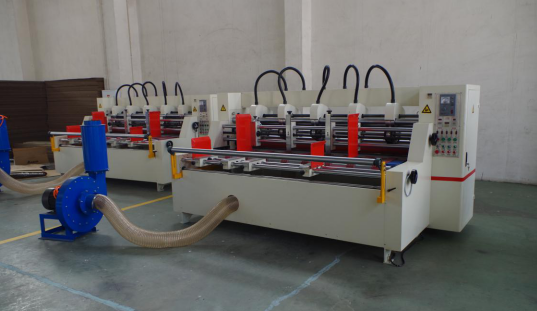

Automatic Feeding paper thin blade machine
MACHINE INTRODUCE:
Automatic feeding paper ,saving labor and labor intensity,prevent cardboard from running and assured the safety of workers.
MACHINE CHOOSE
TYPE | Electric | WIDTH（mm） | BLADE-SCORE | CAN CHOOSE |
SMBD | SLDD | 2000 2200 2500 2800 3000 3500 3800 4000 | 4-6 5-8 6-10 7-12 8-14
| Protective net Synchronous belt Drive Line type |
TECHNICAL INDEX:
| Model | 2000 | 2200 | 2500 | 2800 | 3000 |
| Max slitting size | 1800mm | 2000mm | 2300mm | 2600mm | 2800mm |
| Min slitting size | 130mm | ||||
| Min slitting length | 270mm | ||||
| Min scorer width | 30mm | ||||
| Scorer height | 0.12mm | ||||
| Blade size | 190*105mm | ||||
| Blade/scorer | 4/6 ,5/8 ,6/10,7/12,8/14 | ||||
| Min paper size | 500*270mm | ||||
Machine Dimension (L*W*H) | 2640*1750*1400 | 2840*1750*1400 | 3140*1750*1400 | 3640*1750*1400 | 3830*1750*1400 |
| Power (kw) | 10 | 10 | 13 | 13 | 15 |
FUNCTION AND FEATURES
FEEDING UNIT
The baffle size for screw adjustment,easy to operate.
Can set the qty.of paperboard,automatic stop the feeding after finishing.
Automatic feeding paper, Improve the safe operation,decreased the working load.
Cutting indentation for long cardboard.
SLOTTER SCORER
Electric adjusted the space of slitter blade,auto pneumatic locking,Double guide optical axis,Double locking cylinder,stable operation,Convenient adjustment.The knife rest built-in polyurethane rubber, dust prevention,reduce the failure rate.
Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr
Adopt eight roll , two roll-rang feeding, then scoring ,easy to adjust.It could be do slitting only without scoring, avoid error when scoring.
Adopt automatic and manual two kinds grinding type.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
HRB bearing,long time running.
MACHINE PARTS
