Automatic corrugated caton box die-cutting packing machinery

Quantity:
  • Other
  • Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops
  • New
  • Food, Beverage, Commodity
  • Cartons
  • Paper
  • Automatic
  • Electric
  • 220V/380V or customized
  • 15KW
  • Hebei, China
  • Xinglong
  • 2000kg
  • 4*3*1.5 m
  • CE
  • High-accuracy
  • Engineers available to service machinery overseas

Automatic corrugated caton box die-cutting packing machinery




Product Description

Paper feeding unit


1. Adopt lead edge feeding system with vacuum adsorption auxiliary feed.

2. Speed: 10000sheets/h, die-cutting precision: ±0.75mm

3. Manual adjust front baffle, computer regular side baffle, motorized regular back baffle.

4. Leading paper roll have groove glue surface to prevent the crushed cardboard and increase the accuracy of feeding.


Die-cutting unit


1. Die-cutting roller is made of quality steel the thickness is 30mm, balance correction, plating chrome

2. The wallboard is quality casting iron the thickness is 50mm

3. All of gears with high frequency hot treatment, surface is grinded.

4. Rubber roll with automatic repair mechanism, improve rubber using life, can repair 3-4 times.

5. Lind speed automatic compensation to ensure that each batch of cartons die-size is fully consistent

6. Good quality anvil cover from Maxdura.

7. Grinding gears are made of 40cr, low noise, long service life

8. Adopt planet type electric digital display phase adjustment in 360 degree

9. Die-cutting roll with automatic move horizontally 40mm

10. Used of one couple of die to performing die-cutting and molded board separate from waste paper automatically. (option configuration)


Computer control unit

1. Man-machine interface, equipped PLC precision control system

2. Main unit adopts frequency conversion adjustable speed motor.

3. The machine is consisted of light, electricity and gas joint control system

4. The electrical appliance used of brand production.


Technology Parameters:

Model

MR410-1750

Roll diameter

φ410mm

Max sheet size

1350*1800mm

Max die-cutting size

1350*1600mm

Min sheet size

400*500mm

Speed

80-120pcs/min

Power

About12.6kw



Company Information

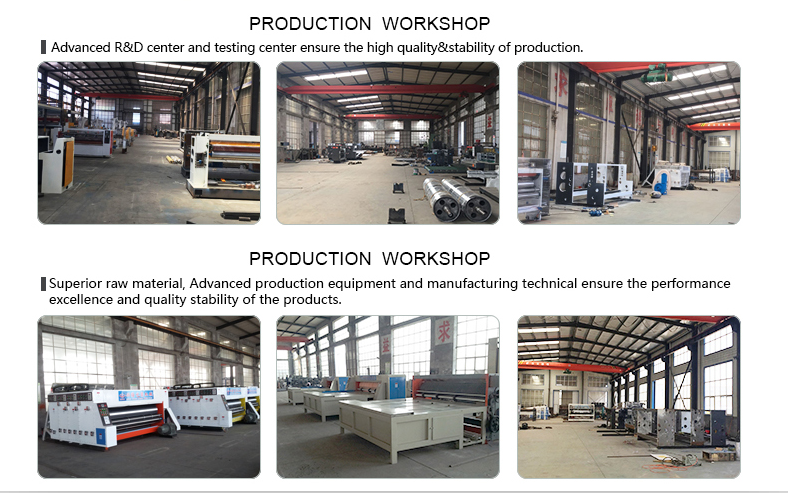

Factory tour
