Automatic corrugated cardboard making line/corrugated machine / carton box manufacturing plant

Quantity:
  • Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Online support
  • None
  • None
  • New
  • corrugated paper making machine
  • paper processing machine
  • China
  • xinglong
  • 380/415/440
  • 180kw
  • 7500*420*350cm
  • 120tons
  • CE
  • 1 YEAR
  • Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
  • 20set per year
  • Provided
  • Provided
  • New Product 2020
  • 1.5 years
  • Engine, Gear
  • Paper Making Machine
  • WJ100-1800
  • Atuomatic
  • Corrugated Board
  • 1-9 Mm Corrugauted Board
  • 80-120m/min
  • 2200mm
  • Optional
  • 0.5mm
  • 380v Three Phase
Product Description

Corrugated cardboard production line

Corrugated cardboard production line is the professional advanced equipment for produce 3ply, 5ply, 7ply corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.

We produce different grade machines according to customers’ demand of speed, function

Main specification

1. width:1400mm, 1600mm, 1800, 2000, 2200, 2500mm

2. Design speed: 200m/min, 150m/min, 120m/min, 100m/min, 80m/min

3. Heating method: steam

Corrugated cardboard type and instruction

Single wall corrugated cardboard (also called 3layer, 3ply board)

1. Our most popular corrugated material used in boxes

2. Available in a wide range of compression strength 125Iib to 275ib

Double wall corrugated cardboard (also called 5layer, 5ply board)

1. Combined of flute B and C, or A and B

2. Extra padding can be add

3. Excellent for stacking heavy item

Double wall corrugated cardboard (also called 7layer, 7ply board)

1. Composed of two layers of flute B/C and one layer of flute B

2. Good resistance to crush during storage and transit.

Flute type:

Flute type

A

B

C

D

E

F

G

Others

Flute shape

UV

UV

UV

UV

UV

UV

UV

Any

Teeth number /300mm

30

±2

50

±2

39

±2

20

±1

90

±10

124

±10

185

±12

Customized

Height of flute

4.6~

4.9

2.6~

2.9

3.6~

3.9

7.2~

7.5

1.1~

1.5

0.7~

0.8

0.5~

0.65

Customized

Shrink rate

1.51~

1.59

1.36~

1.42

1.44~

1.51

1.45~

1.49

1.29~

1.39

1.22~

1.26

1.20~

1.25

Customized

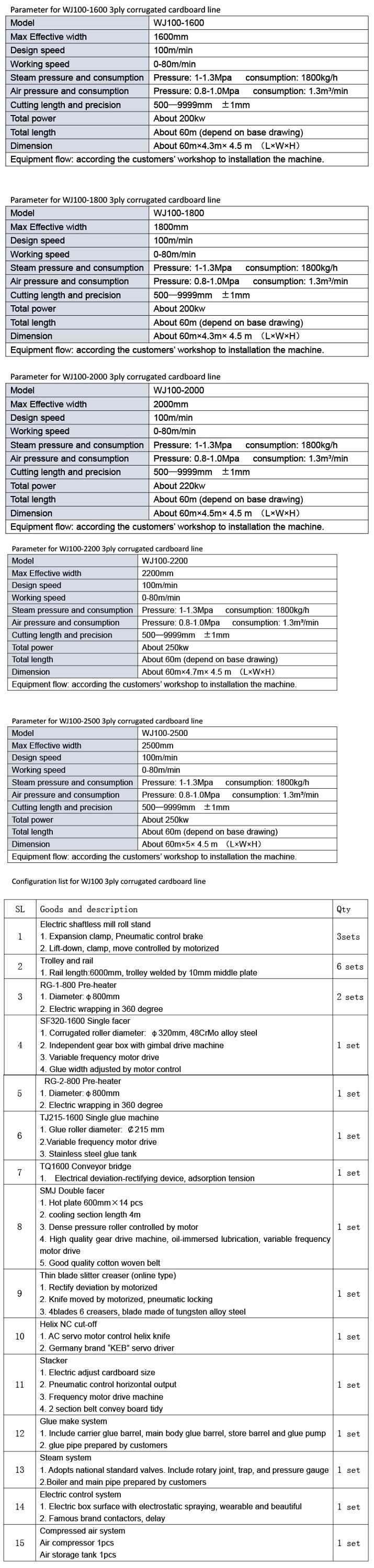

Technical parameter:

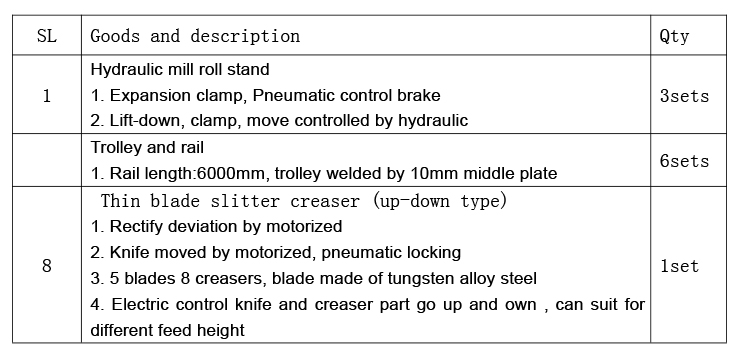

Option:

Detailed Images
Application

Related Products

Company Information
FAQ

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

   (2) Skillful workers care every details in handling the producing and packing process.

   (3) Quality control department are specially responsible for quality in each process.


We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


Q:4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.


Q:5.How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   (2) To solve the problems with videos/pictures.

   (3) One year warranty for spare parts change.


If you meet any other questions, please feel free to contact us.
