SW-9060-8D
xinglong
Packaging line
Electric
Easy to Operate
New
China,Hebei
Customized
Automatic
Provided
1 Year
Provided
Automatic Inserting Machine

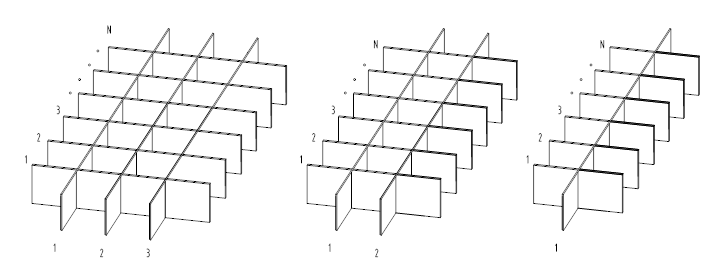

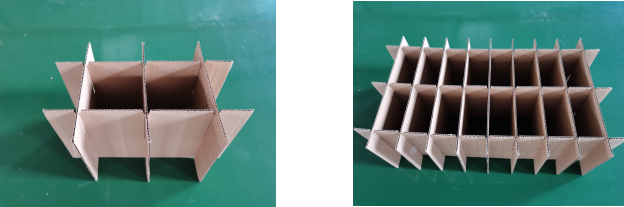

Partitions Form Sketch
* Automatic inserting each kinds clapboard and block
* Cross-cutting slots for paper at the same time, longitudinal and transverse
* Instead of manual， two sets per time.
* Vertical and lateral feed table overall electric adjustment and lifting(electric type)
* Electric adjustment of transverse grid height (electric type)
* Advanced science in mechanical structure, quick adjustment, convenient use

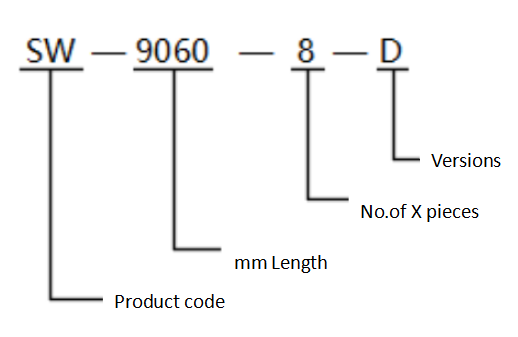

SW-9060--8 D
Name | Unit | Data |
Horizontal inserting width: A | mm | 100~900 |
Lengthways sheets length: B | mm | 210~600 |
Clapboard Height: H | mm | 80~300 |
Lengthways clapboard distance: D | mm | 22~500 |
Horizontal clapboard distance: C | mm | 40-850 |
Lengthways sheets No. | pcs | 1-8 |
Horizontal clapboard No. | pcs | 1-27 |
Carton inserting mouth width：F | mm | ＞board thickness |
Carton thickness:K | mm | 1.5~8mm |
Physical Dimension
Model | Dimension(L x W x H m include sheet delivery ) | Total power |
SW-9060--8D | 8.6×2.0×1.9 | 7.5 |
Grid Application Requirements
* Partition board molding: die cutting molding.
* Partition board interval should have bevel/oblique opening(as shown in the following figure).
The partition plate must have this ramp to be inserted
