XL152-900
xinglong
High speed partition slotter machine
New
Ordinary Product
1 Year
China,Hebei
Easy to Operate
Customized
Provided
High quality
Automatic

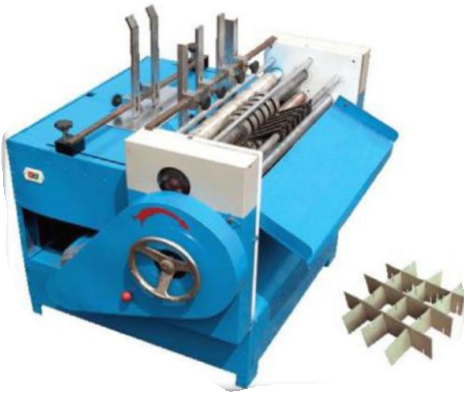

XL Automatic High-Speed Partition Slotter Machine
Machine Introduction
XL Automatic high-speed partition slotter is
special equipment for carton clapboard, it is mainly
used to slot 3 ply 5ply corrugated cardboard and
hard paperboard. Feeding accurate, wide work
range and adjusting range, adaptable, efficient.
Technology Parameter
| Model | XL104-900 | XL152-900 | XL152-1000 | XL152-1200 |
| Cutter die diameter | φ104 | φ152 | φ152 | φ152 |
| Max sheet size (mm) | 300*800 | 450*900 | 450*1000 | 450*1200 |
| Min sheet size (mm) | 100*100 | 150*300 | 150*300 | 150*300 |
| Min slot space (mm) | 40 | 45 | 45 | 45 |
| Slot width (mm) | 3-5 | 3-5 | 3-5 | 3-5 |
| Max slot depth (mm) | 150 | 200 | 200 | 200 |
| Max working speed | 100pcs/min | 80pcs/min | 80pcs/min | 80pcs/min |
| Thickness (mm) | 2-5 | 2-5 | 2-5 | 2-5 |
XL Automatic High-Speed Partition Slotter Machine
Machine Introduction
XL Automatic high-speed partition slotter is
special equipment for carton clapboard, it is mainly
used to slot 3 ply 5ply corrugated cardboard and
hard paperboard. Feeding accurate, wide work
range and adjusting range, adaptable, efficient.
Technology Parameter
| Model | XL104-900 | XL152-900 | XL152-1000 | XL152-1200 |
| Cutter die diameter | φ104 | φ152 | φ152 | φ152 |
| Max sheet size (mm) | 300*800 | 450*900 | 450*1000 | 450*1200 |
| Min sheet size (mm) | 100*100 | 150*300 | 150*300 | 150*300 |
| Min slot space (mm) | 40 | 45 | 45 | 45 |
| Slot width (mm) | 3-5 | 3-5 | 3-5 | 3-5 |
| Max slot depth (mm) | 150 | 200 | 200 | 200 |
| Max working speed | 100pcs/min | 80pcs/min | 80pcs/min | 80pcs/min |
| Thickness (mm) | 2-5 | 2-5 | 2-5 | 2-5 |
