Automatic Folder Gluer/corrugated folder gluer

Share to:

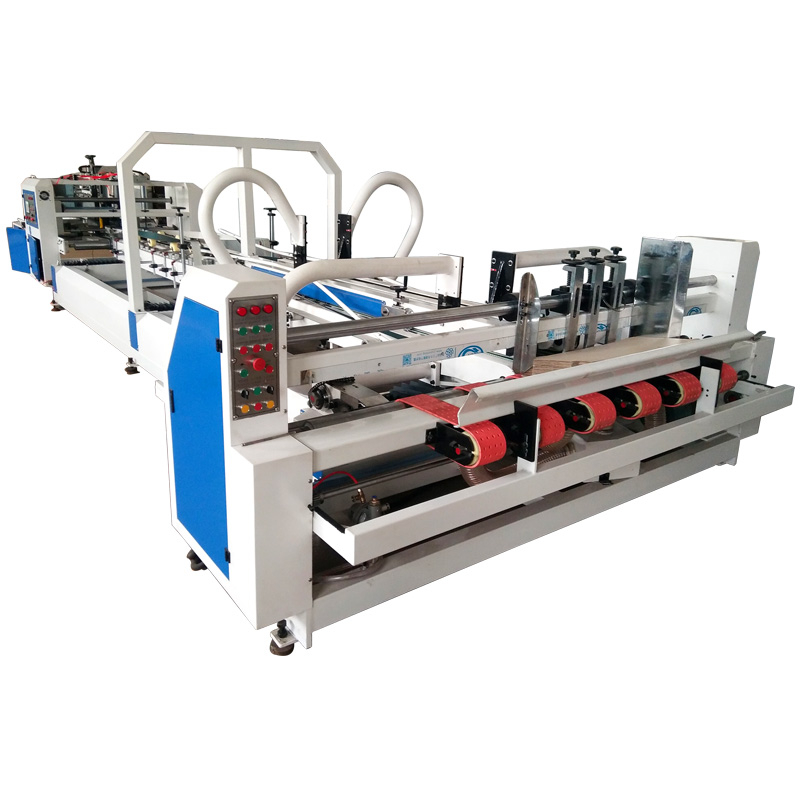

Automatic Folder Gluer/corrugated folder gluer

Quantity:



Inquire Add to Basket

Type:
Other, Packing Machine
Condition:
New
Application:
fold and glue
Packaging Type:
Film, Case
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380/410/440
Power:
6.5
Place of Origin:
Hebei, China
Brand Name:
XINGLONG
Certification:
CE
function:
fold glue
size:
2000
max cardboard:
1000*2000mm
min cardboard:
260*600mm
Installation area:
2400*13500mm
After-sales Service Provided:
Engineers available to service machinery overseas

Product Description

Automatic Folder Gluer

Specifications:
Automatically finishes the top folding and middle folding, meanwhile finishes the glue belt stick of the upper and down part, save labor and time. Available in multiple sizes, can be used in different size of carton and convenient to adjust. This machine works steadily and reliable, the effect is firm. Easy to operate and maintain. Automatic amend the carton in right-angle degree.

Folding Part:
The first folding line is 180 degree;

the third folding line is 135 degree

Technical Specifications:

Model	2000	2400	2800
Max. Cardboard	1000*2000mm	1000*2400mm	1200*2400mm
Min. Cardboard	260*600mm	300*700mm	300*700mm
Installation area	2400*13500mm	2800*15300mm	2800*15300mm
Power Required	6.5kw	8.0kw	8.0kw
