AFG2800
xinglong
Automatic
China,Hebei
New
Ordinary Product
Customzied
Easy to Operate
Provided
1 Year
Provided
Making Corrugated carton box

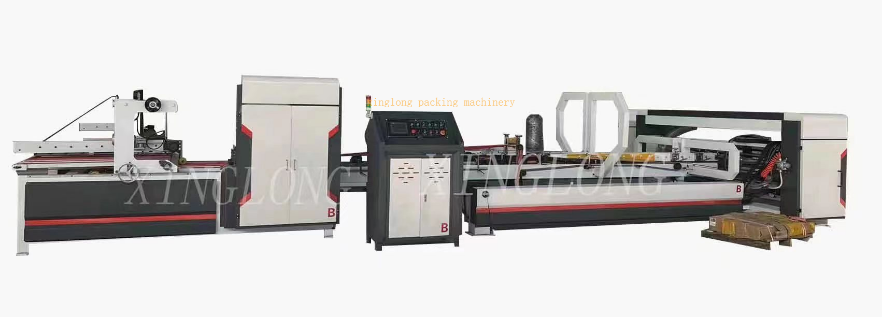

AFG Series Automatic Folder Gluer Machine
MACHINE FEATURE
AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.

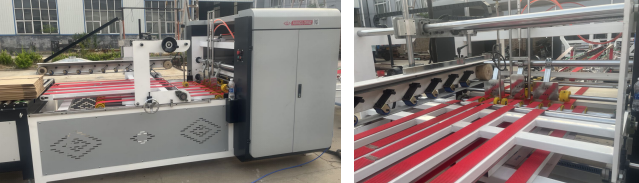

Feeding unit
Belt type lead edge with vacuum suction feeding system is more better to feed bend board
Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.
Scorer wheel is adjustable, it suit to cardboard thickness 2-8mm
It can do second scorer, so correct bad creased board.

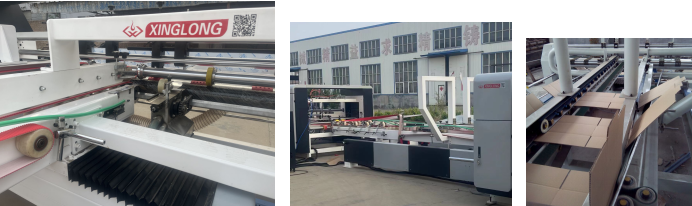

Folding & Gluing unit
Simple structure, glue amount can be adjustable, easy clean
It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.
Automatically gluing, recycle glue, never stop, don’t need add glue by hand, save time and power.
Imported wearable rubber belt convey board, automatically folding.
Equipped with board correction and scorer correction device.

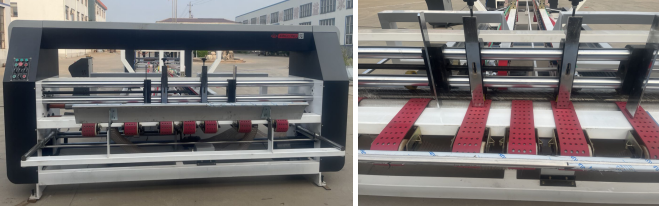

Counting & Stacking unit
Stacking and counting are simple and reliable.
Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.
With correction function, correct deviation
Counting and output by pneumatic control, fast and accurately
MAIN TECHNOLOGY PARAMETERS
| Model | AFG2800 |
| Max cardboard size (mm) | 1200*2400 |
| Min cardboard size (mm) | 170*425 |
| Dimension (mm) | 12500*3200*1600 |
| Motor power | 12kw |
| Machine weight | 5000kg |

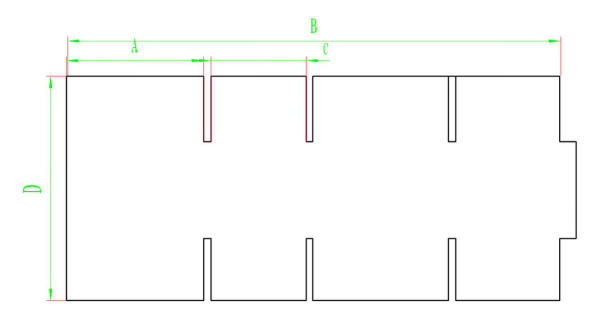

Carton size:
| Model | AFG2800 | |
| A | Max | 800mm |
| Min | 130mm | |
| B | Max | 2400mm |
| Min | 420mm | |
| C | Max | 400mm |
| Min | 70mm | |
| D | Max | 1200mm |
| Min | 170mm |
AFG Series Automatic Folder Gluer Machine
MACHINE FEATURE
AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.
Feeding unit
Belt type lead edge with vacuum suction feeding system is more better to feed bend board
Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.
Scorer wheel is adjustable, it suit to cardboard thickness 2-8mm
It can do second scorer, so correct bad creased board.
Folding & Gluing unit
Simple structure, glue amount can be adjustable, easy clean
It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.
Automatically gluing, recycle glue, never stop, don’t need add glue by hand, save time and power.
Imported wearable rubber belt convey board, automatically folding.
Equipped with board correction and scorer correction device.
Counting & Stacking unit
Stacking and counting are simple and reliable.
Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.
With correction function, correct deviation
Counting and output by pneumatic control, fast and accurately
MAIN TECHNOLOGY PARAMETERS
| Model | AFG2800 |
| Max cardboard size (mm) | 1200*2400 |
| Min cardboard size (mm) | 170*425 |
| Dimension (mm) | 12500*3200*1600 |
| Motor power | 12kw |
| Machine weight | 5000kg |
Carton size:
| Model | AFG2800 | |
| A | Max | 800mm |
| Min | 130mm | |
| B | Max | 2400mm |
| Min | 420mm | |
| C | Max | 400mm |
| Min | 70mm | |
| D | Max | 1200mm |
| Min | 170mm |
