WJ150-2000
xinglong
8441309000
full auto
corrugated carton factory
Video technical support, Online support, Spare par
New
Cartons
Cartons, Film
100-200m/min
autmatic
Electric
China,Hebei
Full Automatic 3/5/7 Layer Corrugated Box Making Paperboard Production Line Packaging Line

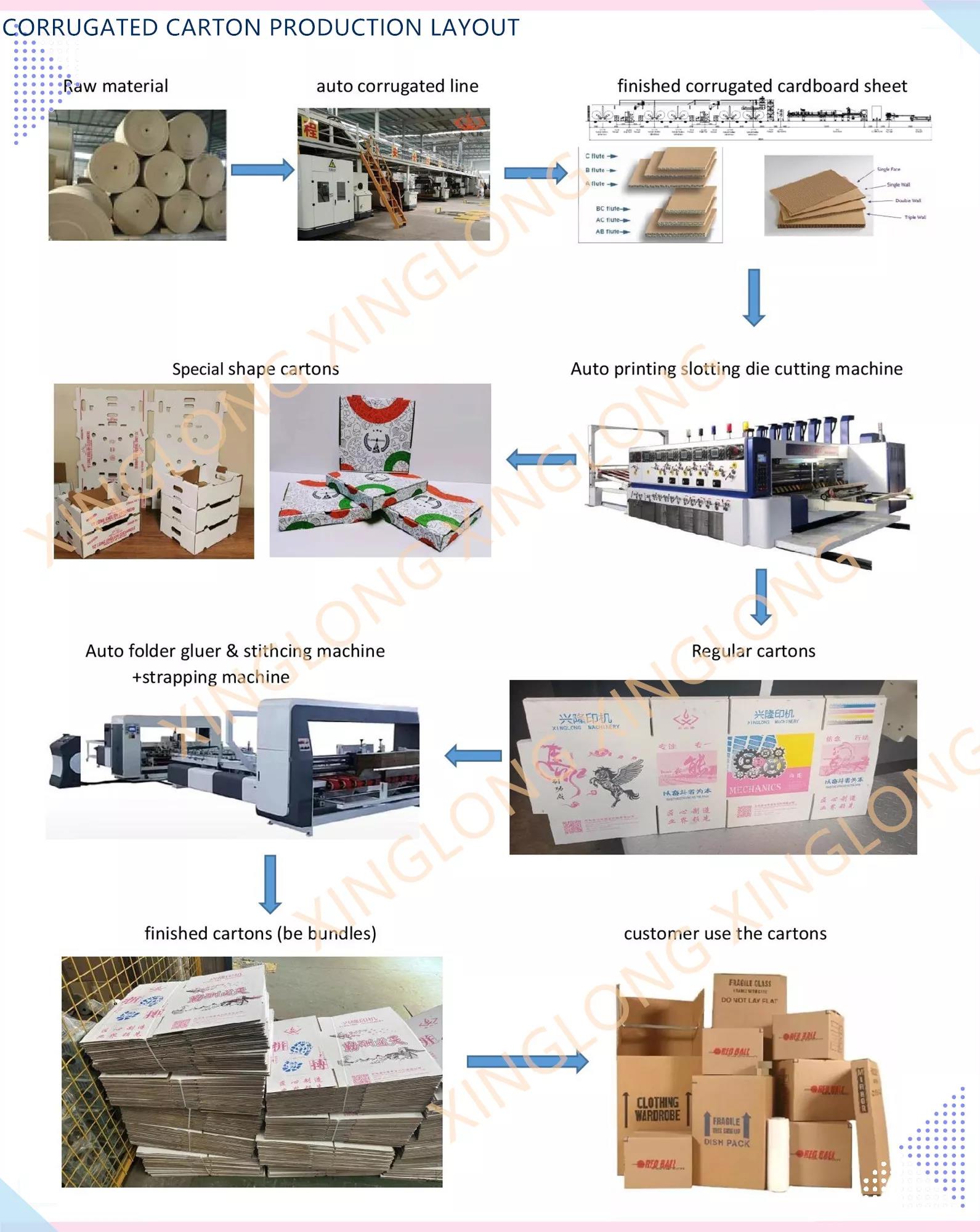

Corrugated cardboard production line is the professional advanced equipment for produce 3ply, 5ply, 7ply corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.
We produce different grade machines according to customers’ demand of speed, function
Main specification
1. width:1400mm, 1600mm, 1800, 2000, 2200, 2500mm
2. Design speed: 200m/min, 150m/min, 120m/min, 100m/min, 80m/min
3. Heating method: steam
No. | Name | Qty | Feature |
1 | Hydraulic Mill RollStand
| 5 | --Max support paper diameter:1500mm --Up-down lift, left-right move controlled by hydraulic --Expansion clamp, 2-point brake by --pneumatic control --with trolley and track |
2 | Pre-heater
| 4 | --The roller φ800 mm,Electric adjustment angle,adjusting heating area within the range of 270 ° |
3 | Single Facer
| 2 | --Corrugated rollerφ320mm, 48CrMo high quality alloy steel, --Independent gearbox,universal joint drive structure |
4 | Conveying Bridge
| 1 | --The main beam is connected with the GB 200 channel steel, 150H steel, 63 angle steel --Suction tension and electric correcting |
5 | Triplex Pre-heater
| 1 | --The rollerφ800 mm,electric adjustment angle angle,adjusting heating area within the range of 270 ° |
6 | Glue Machine
| 1 | --Glue roller φ269mm,carved 25 line pit type mesh --With preheater device --Independent frequency motor drive --Circulating supply glue with PLC control --Man-machine interface display |
7 | DF-80 Double Facer
| 1 | --Main frame is 400 mm GB channel steel --Hot plate 600 mm 14 pcs --4 M cooling section --Adopt pressure shoes lifting by plc control --The upper and lower belt correct automatically --Temperature display --Main drive Frequency motor drive --Good quality high speed cotton woven belt |
8 | Thin Blade Machine
| 1 | -Electric correction -alloy steel blade -5blades and 8scorers -electric adjust blade,pneumatic lock blade die |
9 | NC cut off | 1 | -Helical knife, computer control,operate by touch screen -KEB servo driver from Germany |
10 | angel deliver sheetstacker | 1 | --Double layers and counting independently. --with horizontal output,PLC control |
11 | Glue Making System
| 1 | --Customers supply the pipeline --The glue making device includes: carrier tank,main body tank,storage tank,glue feeding pump and returning pump |
12 | Internal Steam System
| 1 | --Steam system components adopt GB valva: Contains rotary joint,up and down distributor ,drain valve and pressure gauge, etc --Boiler and pipeline supply by customer |
