450F
xinglong
Automatic Laminator Machine
New
China,Hebei
Ordinary Product
Provided
Automatic
1 Year
Cstomized
Easy to Operate
Provided

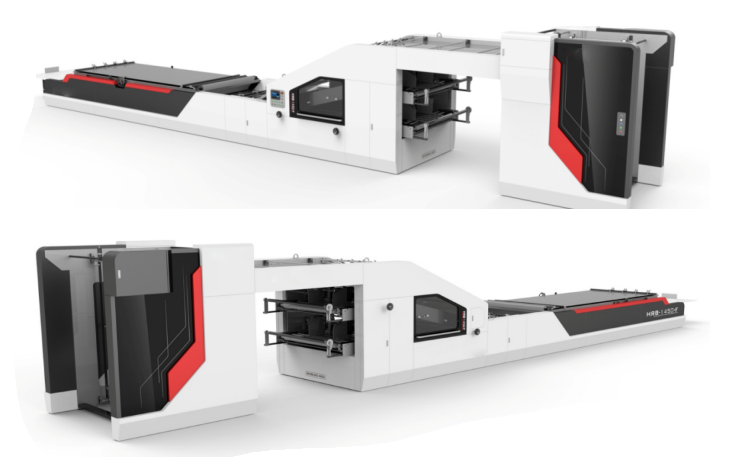

Automatic 5PLY Flute Laminator Machine
Introduction:
The fully automatic multi layer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

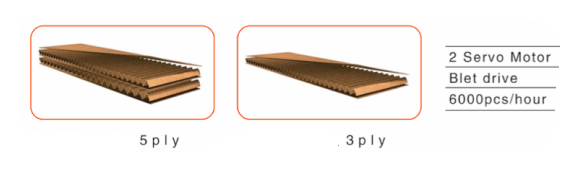

1 MACHINE CAN DO
3PLY/4PLY/5PLY
3 IN 1
Specification
Model | 1300F | 1450F | 1600F | ||
Max paper size | 1280x1100mm | 1430x1100mm | 1580x1100mm | ||
Min paper size | 500x500mm | ||||
Face paper thickness | 150-600gsm | ||||
Bottom paper | A/B/C/E/F/G 2ply flute | ||||
Precision | 1.5mm | ||||
Max Speed | 6000pcs/h | ||||
Height of face paper pile | 1600mm | ||||
Face paper table capacity | 1500kg | ||||
Height of bottom 2ply pile | 400mm | ||||
Total power | 20kw | ||||
Dimension | 15x2.2x2.6m | 15x2.4x2.6m | 15x2.5x2.6m | ||
Machine weight | 5000kg | 5500kg | 6000kg | ||
