AFG2800
xinglong
Automatic
Xinglong
Easy to Operate
Provided
Ordinary Product
New
Electric
Hebei, China
Provided
1 Year
Auto folder gluer+PP strapping inline
AFG Series Automatic Folder Gluer Machine
MACHINE FEATURE
AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.
MAIN TECHNOLOGY PARAMETERS
| Model | AFG2800 |
| Max cardboard size | 1200×2400 |
| Min cardboard size | 170*425 |

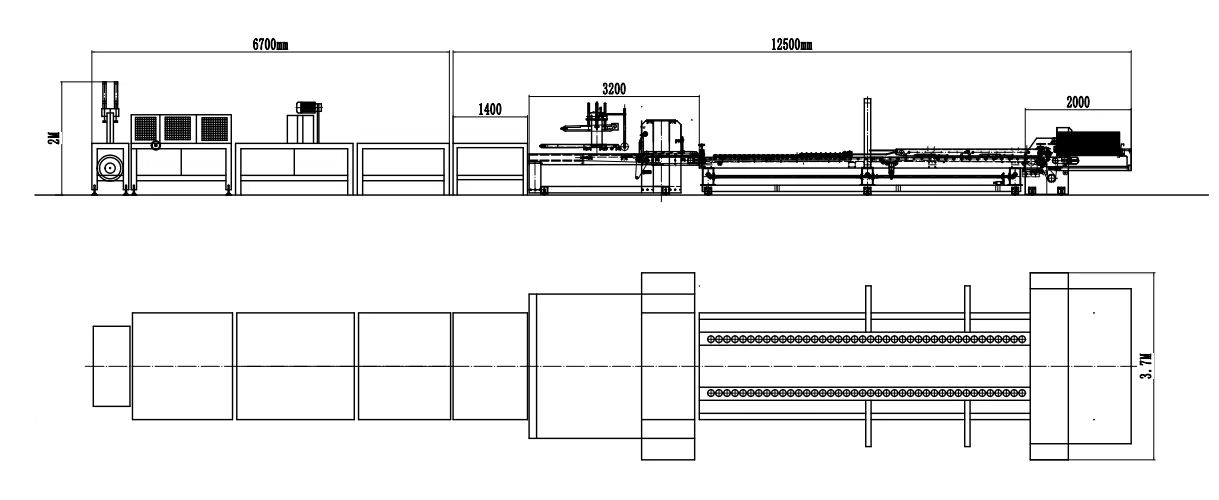

| Dimension | L12500*W3200*H1600 |
| Motor power | 12kw |
| Machine weight | 5500kg |
Carton Size
| Model | AFG2800 | |
| A | Max | 800mm |
| Min | 130mm | |
| B | Max | 2400mm |
| Min | 420mm | |
| C | Max | 400mm |
| Min | 70mm | |
| D | Max | 1200mm |
| Min | 170mm |
Auto PP strapping machine
MACHINE FEATURE
● The strapping machine consists of three units. paper conveyor and steering unit,gather align unit and no-man power strapping unit.
● This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery, electricity and gas.
●Fast packing speed: PLC control, stable performance, compact packing time, faster.
●Operating capacity:9-18 pieces/ min;
● Working environment: the relative humidity is less than or equal to 90%, the temperature is 0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A);
●The bandwidth is 5 mm ( 9mm optionally) ; the tape reel specification: the inner diameter of the paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and the band width is 175-190 mm;
● Bonding method: hot fusion;
● The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent, the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg;
● Air source pressure: 0.5-0.8MPa; roller material: stainless steel; roller diameter: 50mm, wall thickness: 1.2-1.5mm;
●Transportation speed: 0 -50m / min;
