Auto Folder gluer with PP strapping machine

Auto Folder Gluer Machine with PP Strapping Machine

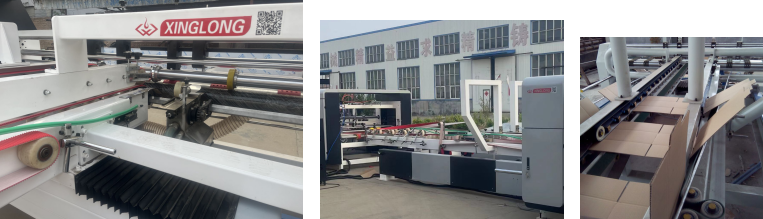

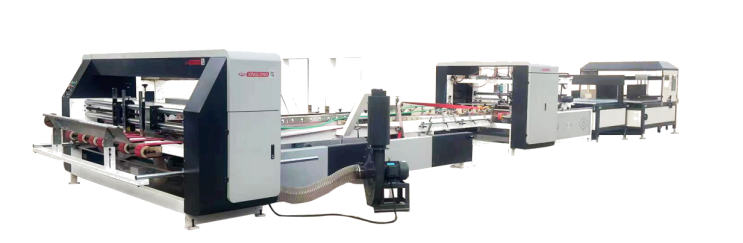

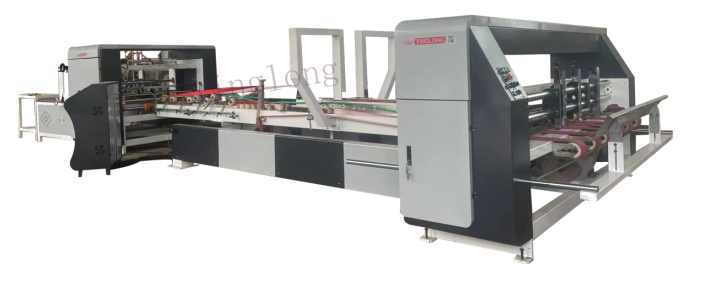

AFG Series Automatic Folder Gluer Machine

MACHINE FEATURE

    AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed.  The average speed about 150sheets/min, with high speed, saves power and labor.

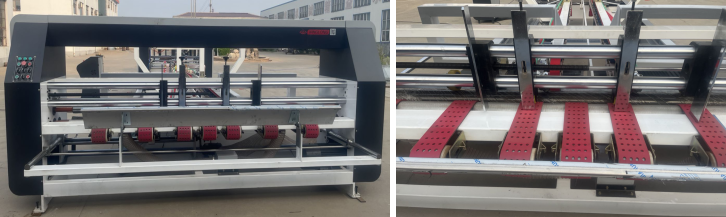

 Feeding part

• Belt type lead edge with vacuum suction feeding system is more better to feed bend board


• Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.


• Scorer wheel is adjustable, it suit to cardboard thickness 2-8mm


• It can do second scorer, so correct bad creased board.

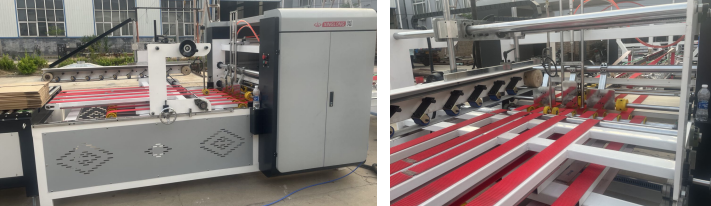

 Folding & gluing part

• Simple structure, glue amount can be adjustable, easy clean


• It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.


• Automatically gluing, recycle glue, never stop, don't need add glue by hand, save time and power.


• Imported wearable rubber belt convey board, automatically folding.


• Equipped with board correction and scorer correction device.


 Counting & Stacking part

• Stacking and counting are simple and reliable


• Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.


• With correction function, correct deviation


• Counting and output by pneumatic control, fast and accurately.




MAIN TECHNOLOGY PARAMETERS

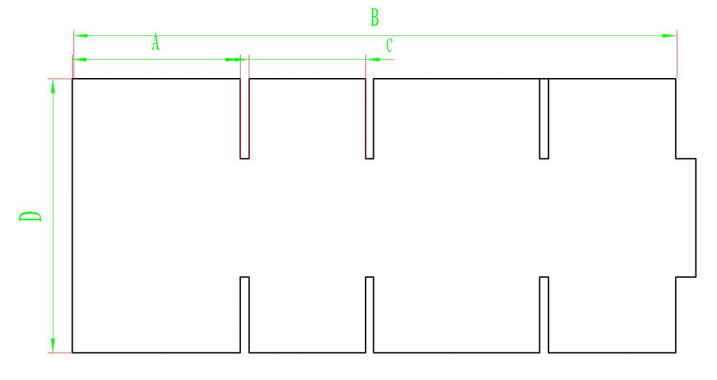

 Carton size

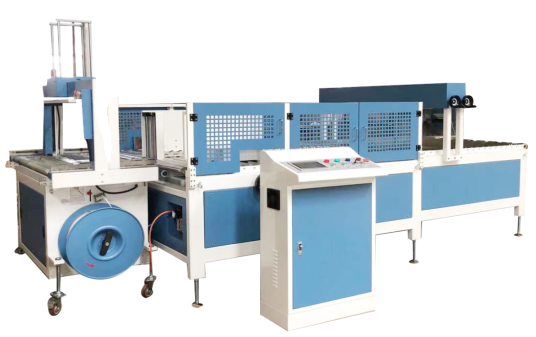

Auto PP Strapping Machine

 MACHINE FEATURE

• The strapping machine consists of three units. paper conveyor and steering unit,gather align unit and no-man power strapping unit.


• This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery, electricity and gas.


• Fast packing speed: PLC control, stable performance, compact packing time, faster.


• Operating capacity:9-18 pieces/ min;


• Working environment: the relative humidity is less than or equal to 90%, the temperature is 0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A);


• The bandwidth is 5 mm ( 9mm optionally) ; the tape reel specification: the inner diameter of the paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and the band width is 175-190 mm;


• Bonding method: hot fusion;

• The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent, the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg;


• Air source pressure: 0.5-0.8MPa; roller material: stainless steel; roller diameter: 50mm, wall thickness: 1.2-1.5mm;


• Transportation speed: 0 -50m / min;
