AYKM1224
xinglong

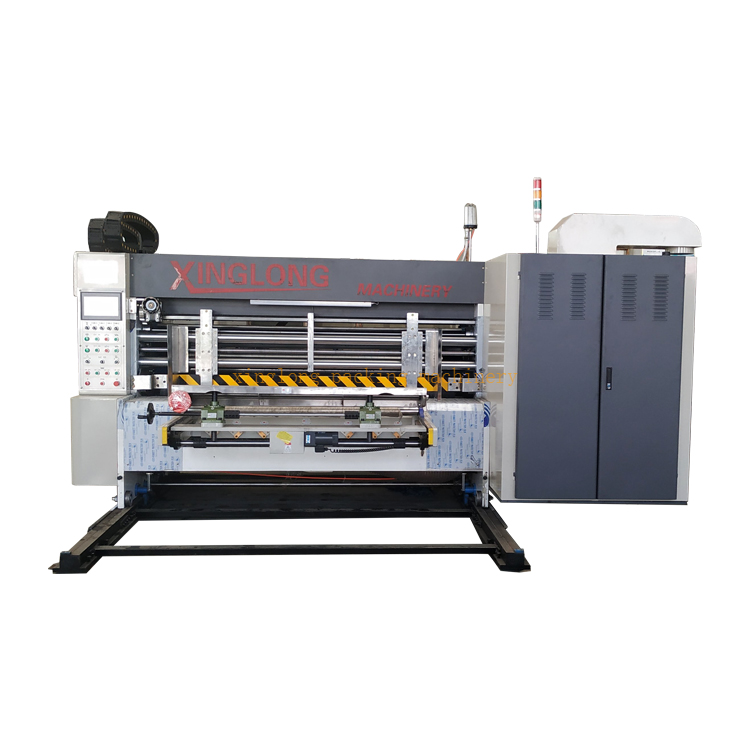

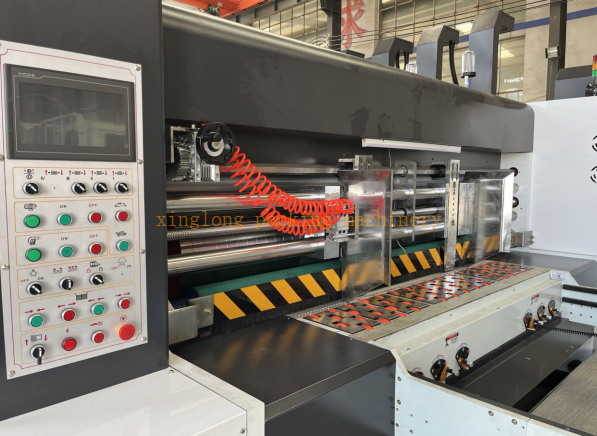

Automatic Printing slotting die cutting machine
Automatic
Ordinary Product
Optional
China,Hebei
1 Year
Provided
Video Technical Support
Easy to Operate
Lead edge feeding
AYKM Series Printing die cutting Machine

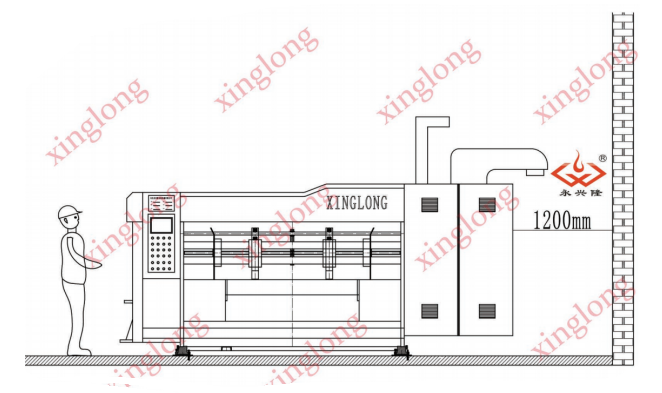

MACHINE GROUND DRAWINGS
Main Technology Parameters
Model | AYKM1224 |
Machine inside width (mm) | 2600 |
Max feeding paper size(mm) | 1200mm*2400mm |
Max effective printing size(mm) | 1200mm*2200mm |
Min coverage size(mm) | 350mm*750mm |
Design speed (pcs/min) | 150pcs/min |
Working speed (pcs/min) | 0-120 pcs/min |
Standard Thickness of printing plate | 4-6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 2-9mm |
Wall thickness | 40mm |
Main motor power | 18kw |
Standard Lpi of anilox roller | 250 |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
The main drive gear is adopted 40Cr alloy steel, carburizing quenching treatment, hardness HRC58-62 ,And gear grinding processing precision level 5-7. adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Phase adjustment adopt PLC control with touch screen.
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Adopt double shell, beautiful and generous, reduce noise.
1. Feeding unit
2.Printing unit

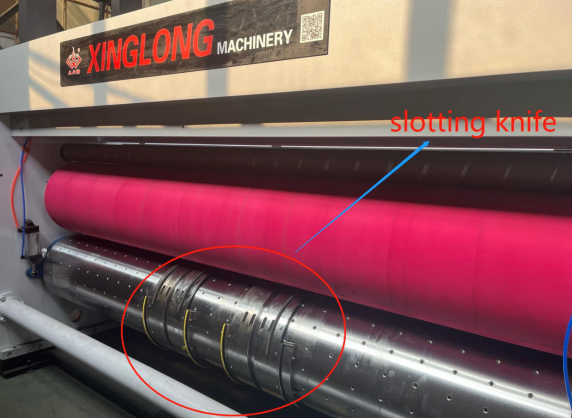

3.Die-cutting unit + slotting knife

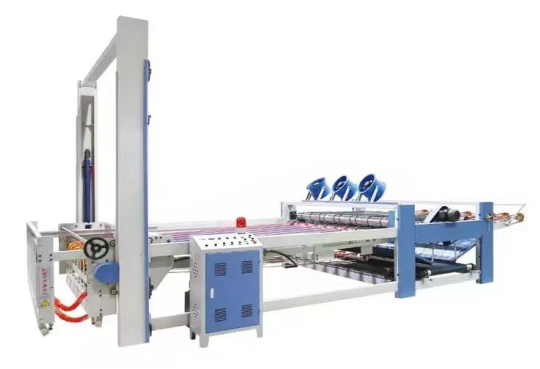

Vibrator and stacker unit
Vibrator unit
◆ Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
◆ Equipped with waste removal force fan and waste discharge brush
◆ Waste paper discharge device
◆ Seismic waste strength adjustable
◆ High elastic round belt has long service life and cannot damage cardboard.
◆ Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.
Stacker unit
◆ Design speed: 150m/min
◆ Maximum stacking length gantry:1600mm
◆ Upper gantry stacking, electric lift.
◆ The whole wide belt conveys the paper neatly and smoothly;
◆ Electric stacking, and collection of cardboard, can make the cardboard storage height;
◆ Photoelectric measurement of stack height.
AYKM Series Printing die cutting Machine
MACHINE GROUND DRAWINGS
Main Technology Parameters
Model | AYKM1224 |
Machine inside width (mm) | 2600 |
Max feeding paper size(mm) | 1200mm*2400mm |
Max effective printing size(mm) | 1200mm*2200mm |
Min coverage size(mm) | 350mm*750mm |
Design speed (pcs/min) | 150pcs/min |
Working speed (pcs/min) | 0-120 pcs/min |
Standard Thickness of printing plate | 4-6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 2-9mm |
Wall thickness | 40mm |
Main motor power | 18kw |
Standard Lpi of anilox roller | 250 |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
The main drive gear is adopted 40Cr alloy steel, carburizing quenching treatment, hardness HRC58-62 ,And gear grinding processing precision level 5-7. adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Phase adjustment adopt PLC control with touch screen.
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Adopt double shell, beautiful and generous, reduce noise.
1. Feeding unit
2.Printing unit
3.Die-cutting unit + slotting knife
Vibrator and stacker unit
Vibrator unit
◆ Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
◆ Equipped with waste removal force fan and waste discharge brush
◆ Waste paper discharge device
◆ Seismic waste strength adjustable
◆ High elastic round belt has long service life and cannot damage cardboard.
◆ Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.
Stacker unit
◆ Design speed: 150m/min
◆ Maximum stacking length gantry:1600mm
◆ Upper gantry stacking, electric lift.
◆ The whole wide belt conveys the paper neatly and smoothly;
◆ Electric stacking, and collection of cardboard, can make the cardboard storage height;
◆ Photoelectric measurement of stack height.
