AFG1224
xinglong
Automatic
New
Ordinary Product
China,Hebei
1 Year
Easy to Operate
High speed
Provided
Provided
Lead edge feeding

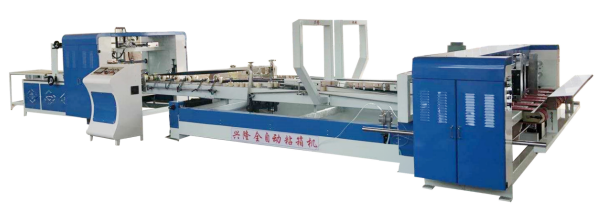

AFG Series Automatic Folder Gluer Machine
Machine Features:
AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .
It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.

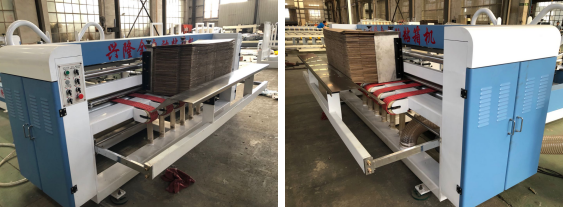

Feeding Unit
Belt type lead edge with vacuum suction feeding system is more better to feed bend board
Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.
Scorer wheel is adjustable
It can do second scorer, so correct bad creased board.

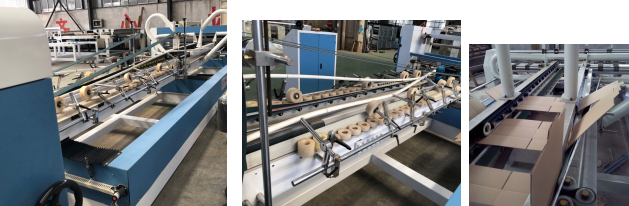

Folding & Gluing Unit
Simple structure, glue amount can be adjustable, easy clean
It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.
Automatically gluing, recycle glue, never stop, don’t need add glue by hand, save time and power.
Imported wearable rubber belt convey board, automatically folding.
Equipped with board correction and scorer correction device.

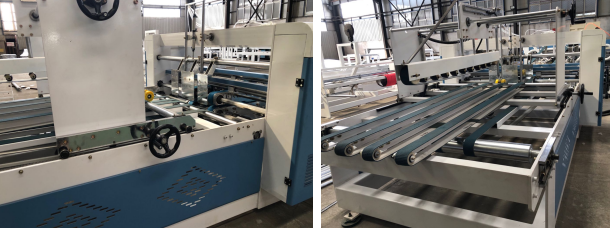

Counting & Stacking Unit
Stacking and counting are simple and reliable
Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.
With correction function, correct deviation
Counting and output by pneumatic control, fast and accurately
Main Technology Parameters:
Model | AFG2800 |
Max cardboard size (mm) | 1200*2400 |
Min cardboard size (mm) | 170*425 |
Dimension (mm) | L12500*W3200*H1600 |
Motor power | About 12kw |
Machine weight | 5000kg |
Loading space | 38.8cbm |

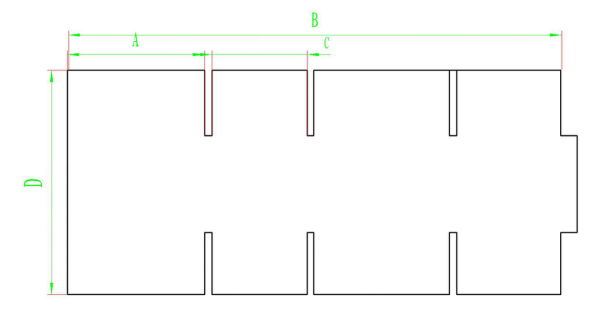

Carton Size:
Model | AFG2800 | |
A | Max | 850mm |
Min | 130mm | |
B | Max | 2400mm |
Min | 420mm | |
C | Max | 450mm |
Min | 70mm | |
D | Max | 1200mm |
Min | 170mm |
Automatic PP strapping machine
Machine Introduction
※ The strapping machine consists of three units. paper conveyer and steering unit,gather align unit and no-man power strapping unit.
※This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery, electricity and gas.
※Fast packing speed: PLC control, stable performance, compact packing time, faster.
※Operating capacity:9-18 pieces/ min;
※Working environment: the relative humidity is less than or equal to 90%, the temperature is 0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A);
※The bandwidth is 5 mm - 9 mm, optionally; the tape reel specification: the inner diameter of the paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and the band width is 175-190 mm;
※Bonding method: hot fusion;
※The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent, the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg;
※ Air source pressure: 0.5-0.8MPa; roller material: stainless steel; roller diameter: 50mm, wall thickness: 1.2-1.5mm;
※Transportation speed: 0 -50m / min;
※Machine weight:about 2000KGS
※Machine dimensions:2100*5040*1670mm
※Machine loading size:17.8cbm
