Other
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
New
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Film, Case
Plastic, Wood
Automatic
Electric
380v50hz
about 20kw
Hebei, China
Xinglong
about 2 T
customized
CE certification
optional
customized
Automatic Folder Gluer Machine/carton machine
container, wooden cases, wooden pallets
one year
AFG2400
film
carton folding gluing
carton gluing
CE,BV
Engineers available to service machinery overseas

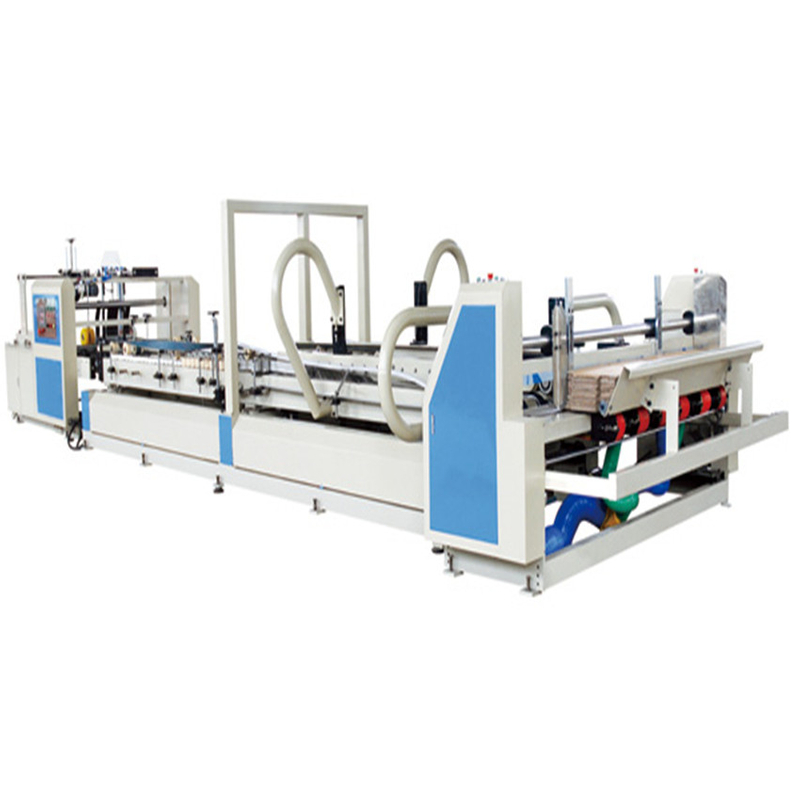

Automatic Folder Gluer Machine/carton machine
Machine Features:
AFG Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .
It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.

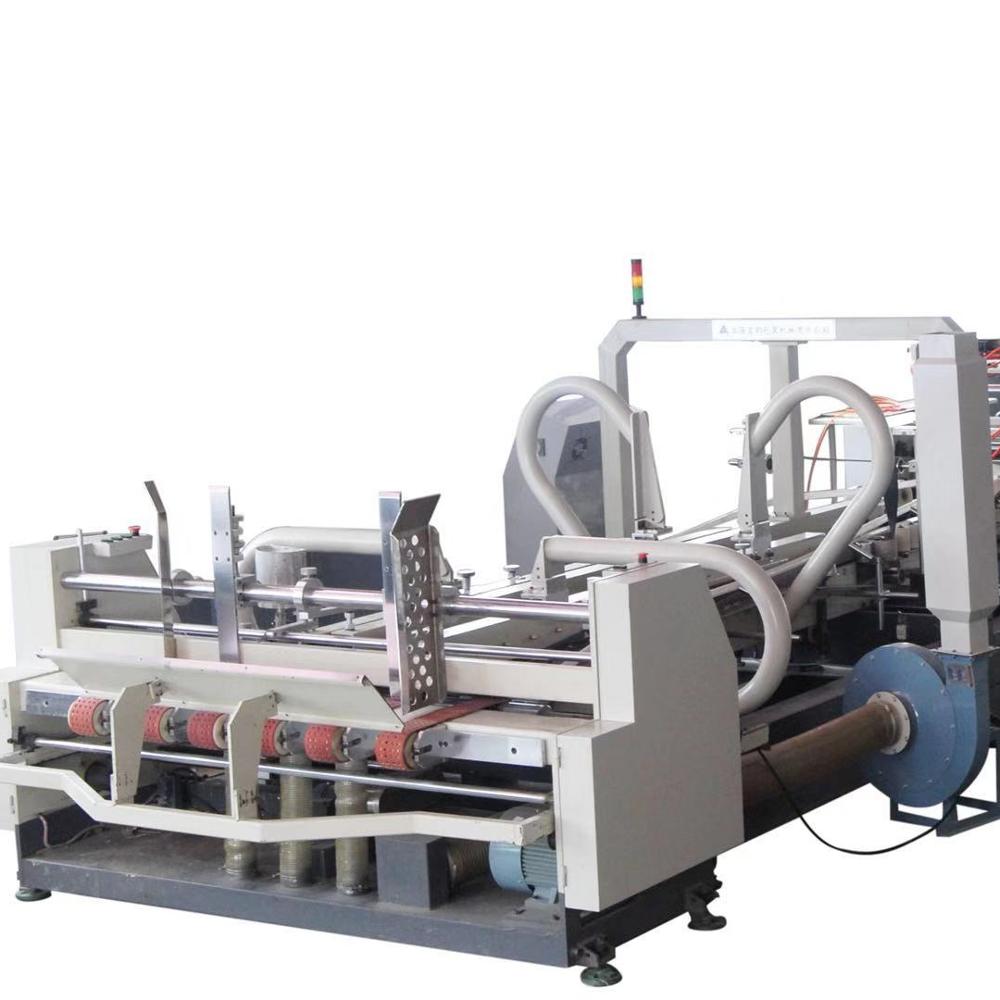

Feeding part
l Belt type lead edge with vacuum suction feeding system is more better to feed bend board
l Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.
l Scorer wheel is adjustable, it suit to cardboard thickness 2-8mm
l It can do second scorer, so correct bad creased board.

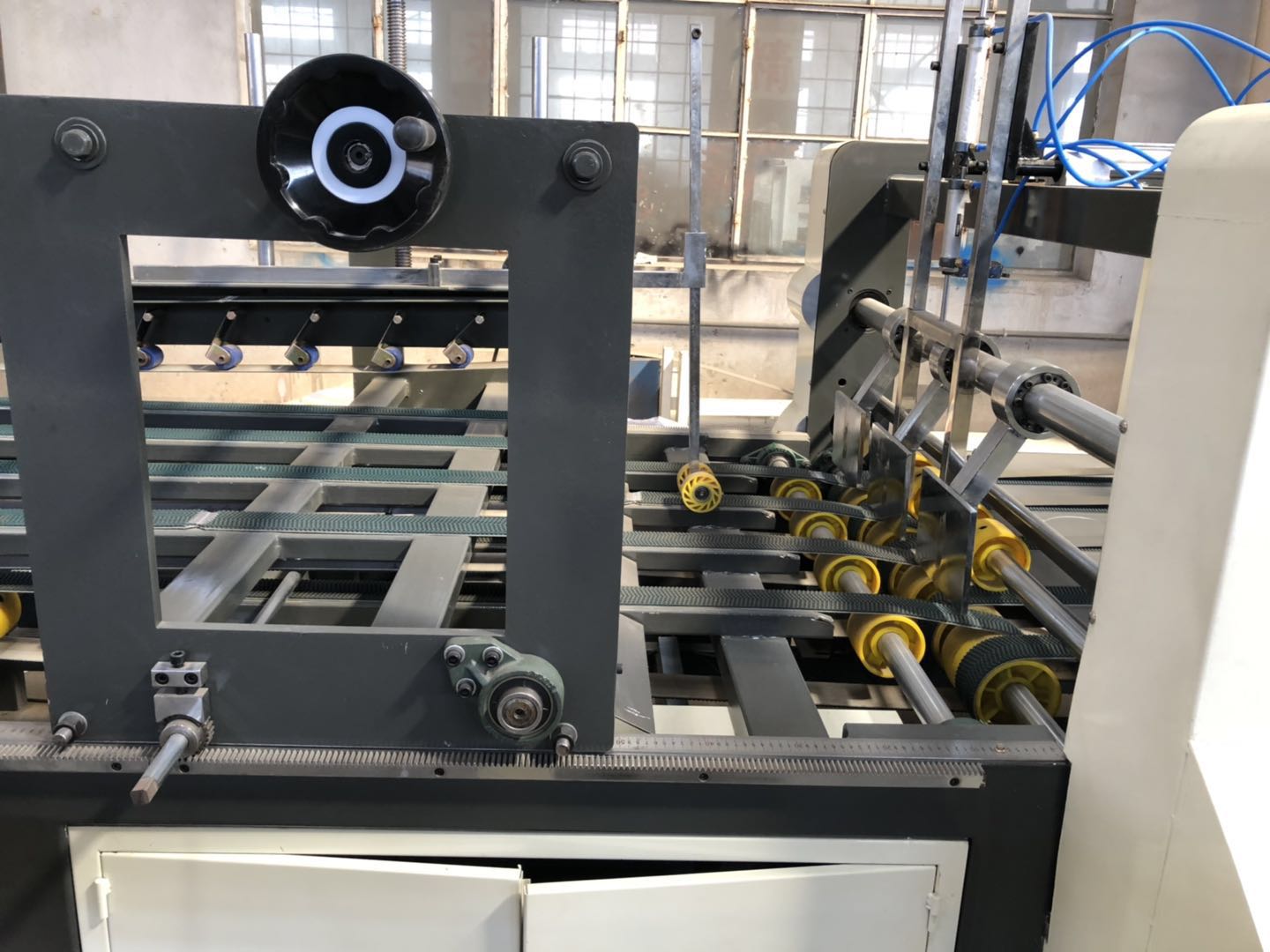

Folding & gluing part
l Simple structure, glue amount can be adjustable, easy clean
l It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.
l Automatically gluing, recycle glue, never stop, don’t need add glue by hand, save time and power.
l Imported wearable rubber belt convey board, automatically folding.
l Equipped with board correction and scorer correction device.
Counting & Stacking part
l Stacking and counting are simple and reliable
l Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.
l With correction function, correct deviation
l Counting and output by pneumatic control, fast and accurately.
Model |
| AFG2400 | AFG2600 | AFG2800 |
A | Max | 880mm | 880mm | 880mm |
Min | 80mm | 80mm | 80mm | |
B | Max | 2400mm | 2600mm | 2800mm |
Min | 700mm | 700mm | 700mm | |
C | Max | 840mm | 840mm | 840mm |
Min | 160mm | 160mm | 160mm | |
D | Max | 1000mm | 1200mm | 1200mm |
Min | 300mm | 300mm | 300mm |
