5 ply high speed corrugated cardboard production line,carton machine

Quantity:
  • Other
  • 1 YEAR
  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Energy & Mining
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Foil, Case
  • Paper, Wood
  • Automatic
  • Electric
  • 380v/410v/440v 50Hz
  • 100-150kw
  • Hebei, China
  • XINGLONG
  • Contact
  • Machine Model
  • CE
  • High-accuracy
  • Engineers available to service machinery overseas
  • OPTIONAL
  • Rewinding Machine
  • Polyethylene
  • Machine Usage
  • High Packing Speed
  • Honeycomb Board
  • Quilt Coiling Machine
  • Stand Pouch

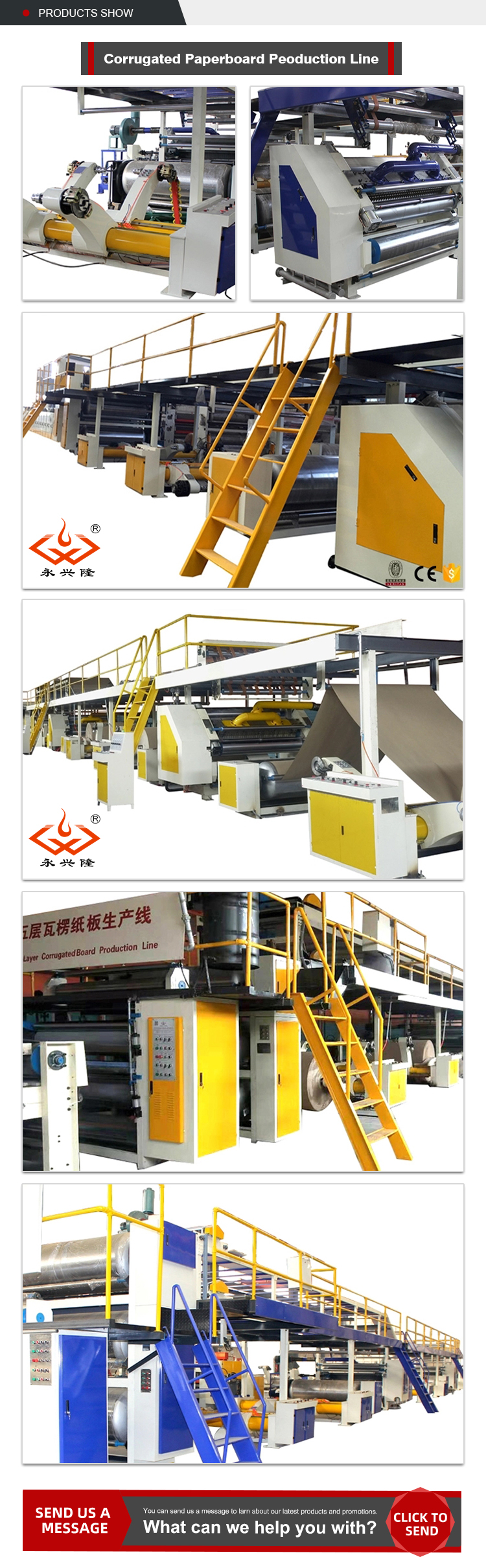

5 ply high speed corrugated cardboard production line,carton machine

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the Mill Roll Stand ,liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air compression system and glue macking system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60—220m/min; the paper width 1600-2200mm and A,B,C,E UV flute production line can satisfy different customers.



No.

Name

Sets

Comment

1

Mill roll stand

Electic mill roll stand , expansion dop top, pneumatioc  brake

2

Single facer

vac-sorb,φ320  alloy roller  ,cardan drive

3

Feeding paper bridge

Electric adjust  deviation,adsorb tension

4

Second gluing machine

Conversion synchronous control

5

Triply pre-heater

φ 800,electic wrap angle(including qualification certificate )

6

pre-heater

φ 800,land type electic wrap angle(including qualification certificate )

7

Dry formed

part

520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )

8

Heat formed

part

Adopt up and down intensive roller ,length  8m

9

Feeding paper belt

High qualit carton belt , electic promote

10

Thin blade slitter scorer mahcine

5 blade 8 line , electric Correct error , alloy blade

11

Corss cutter

Computer control cutting cardboard  length 500-9999mm; cutting cardboard  precision ±1mm

12

Main drive

Main power 25KW

13

Make paste system

Barrel type ,electic stir circulate glue design

14

Stand feeding paper car

Includ sliping  way

15

Pump

Electic  aeration

16

Electic system

One Operate cabinet ,one sinlge facer  1 main drive

17

Steam system

Not including heat source and pipe

18

Gantry stacker

Belt drive type





• Our factory is a professional corrugated cardboard carton box making machines manufacturer


 for over 20 years.


• We can provide every customer superior quality products at competitive price.


• If you have any interests about the machine, please feel free to contact me.


• Betty zhang


WhatsApp/Skype:15100856622


• DONGGUANG XINGLONG PACKING MACHINERY CO., LTD.


• ADD: MAHAI INDUSTRIAL AREA SOUTH TO DONGGUANG COUNTY, HEBEI PROVINCE,


 CHINA
