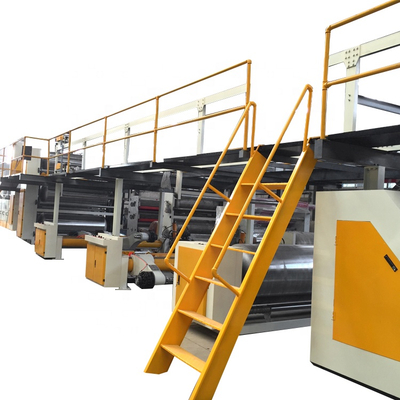

5 ply fully automatic box corrugated cardboard making machine

Quantity:
  • Other
  • 1 YEAR
  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
  • Cartons, Cans, Barrel, Stand-up Pouch, Film, Foil
  • Paper, Wood
  • Automatic
  • Steam.oil ,electric
  • 220V50HZ/380V50HZ
  • about 100kw
  • China
  • Xinglong
  • 100tons
  • CE certificate
  • Long Service Life
  • Overseas service center available
  • 120-180m/min
  • 80-150 m/min
  • 280-360mm
  • Wraparound Case Packaging Machine
  • 40-230 Bag/min
  • Packing Volume
  • Back Sealing Bag

5 ply fully automatic box corrugated cardboard making machine



Product Description


Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, liner preheater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air cmpression system and gue making system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad,our company has developed and designed these production lines with the speed 60-220m/min, the paper width 1600-2200mm and A,B,C,E,UV flute production line can satisfy different customrs.

Tips: Please contact us for the full version of video.

Main units:

No.

Name

Sets

Comment

1

Mill roll stand

Electric mill roll stand , expansion dop top, pneumatioc  brake

2

Single facer

vac-sorb,φ320  alloy roller  ,cardan drive

3

Feeding paper bridge

Electric adjust  deviation,adsorb tension

4

Second gluing machine

Conversion synchronous control

5

Triply pre-heater

φ 800,electric wrap angle(including qualification certificate )

6

pre-heater

φ 800,land type electric wrap angle(including qualification certificate )

7

Dry formed

part

520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )

8

Heat formed

part

Adopt up and down intensive roller ,length  8m

9

Feeding paper belt

High quality carton belt , electric promote

10

Thin blade slitter scorer mahcine

5 blade 8 line , electric Correct error , alloy blade

11

Corss cutter

Computer control cutting cardboard  length 500-9999mm; cutting cardboard  precision ±1mm

12

Main drive

Main power 25KW
