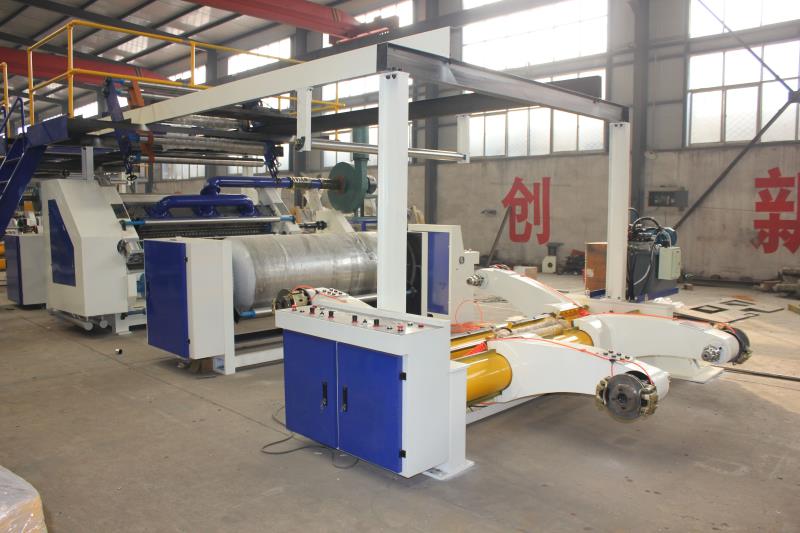

5 ply corrugated Paper board making machine line

Quantity:
  • Packaging Line
  • Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops
  • New
  • Beverage, Commodity
  • Cartons
  • Paper
  • Automatic
  • Electric
  • 220V/380V
  • Hebei, China
  • Xinglong
  • carton machine size customized
  • About 120tons
  • CE
  • 1 YEAR
  • Field installation, commissioning and training
  • High-accuracy
  • A,B,C,E UV flute
  • 1200-2200mm
  • 60-220m/min
  • Steam, electric, thermal oil

5 ply corrugated Paper  board making  machine line



Product Description

 Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.

Main units:

No.

Name

Sets

Comment

1

Mill roll stand

Electric mill roll stand , expansion dop top, pneumatioc  brake

2

Single facer

vac-sorb,φ320  alloy roller  ,cardan drive

3

Feeding paper bridge

Electric adjust deviation,adsorb tension

4

Second gluing machine

Conversion synchronous control

5

Triply pre-heater

φ 800,electric wrap angle


6

pre-heater

φ 800,land type electric wrap angle


7

Dry formed

part

520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller

8

Heat formed

part

Adopt up and down intensive roller ,length  8m

9

Thin blade slitter scorer machine

5 blade 8 line , electric Correct error , alloy blade

10

Corss cutter

Computer control cutting cardboard  length 500-9999mm;

cutting cardboard  precision ±1mm

11

Main drive

Main power 25KW

12

Gantry stacker

Belt drive type
