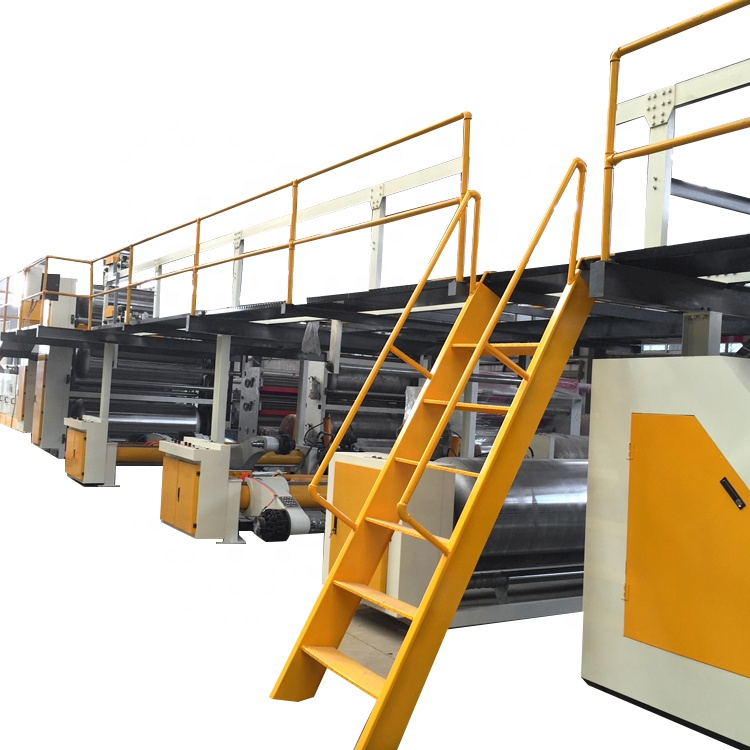

3 or 5 layer corrugated cardboard production line paperboard making machine

Quantity:
  • Packaging Line
  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • New
  • Beverage, Chemical, Food, Machinery & Hardware, Medical, Apparel, Textiles
  • Cartons, Cans, Bottles, Barrel, Film, Belt
  • Plastic, Wood
  • Automatic
  • Electric
  • 380v50hz 3phase
  • Hebei, China
  • Xinglong
  • customized
  • 120T
  • CE certification
  • 1 YEAR
  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
  • Energy saving
  • Ordinary Product
  • Provided
  • Provided
  • 1 YEAR
  • Gear, Engine
  • optional
  • 80,120,150,220m/min
  • carton board making machine
  • 1 year
  • lower, medium, high grade
  • oil, steam, electric customized
  • Corrugated Cardboard Production Line
  • 2/3/5 Layers Line Width 1400-1800mm

3 or 5 layer corrugated cardboard production line paperboard making machine

3 or 5 layer corrugated cardboard production line, carton board making machine

3 or 5ply corrugated carton production line, corrugated cardboard production line, 3 or 5 corrugated cardboard production line, single wall and double wall corrugated board can be produced. Besides the application scope of single wall corrugated board, The double wall product is also widely used as packing material in many fields such as TV set, refrigerator, fruit, cigarette, beverage, and so on. Two flute combinations (A&B, C&B) as well as special customer-tailored flutes are provided. Steam heating and oil heating are optional (but oil heating is not suitable for line with speed above 100m/min).

The standard five ply line is made up of

Single facer (2),

mill roll stand (3~5),

preheater (4),

multiplex preheater (preheating roll diameter should be φ900mm for speed above 120m/min),

conveying bridge (1),

duplex glue machine (1),

double facer (1),

slitter scorer (1) (thin-blade or flaring slitting tool is optional),

cut-off (1),

stacker (1).

Speed of 80m/min, 100m/min, 150m/min or 180 m/min 220m/min can meet customers requirements.


Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.

Technology parameter


WJ100-1800-i type three layer corrugated paperboard production line
Effective width
1800mm
Design produce speed
100m/min
Three layer work speed
80-100m/min
Five layer work speed
-----------------
Seven layer work speed
-------------------
The highest change single speed
100m/min
Longitudinal separation accuracy
±1mm
Cross-cutting precision
±1mm
Steam requirement
The maximum pressure 1.2Mpa
Common pressure 0.8-1.1Mpa
use2500kg-3000kg/Hr
Electricity demand
AC380V 50Hz 3PH
Total power≈120KW
Running Power≈60KW
Compressed air
The maximum pressure 9kg/cm2
Common pressure4-8kg/cm2
use1m³/min
Note
Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.
Top paper index
100gsm--180gsmRing crush index(N.m/g)≥8 (Water containing8-10%)
Core paper index
80gsm--160gsm Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
In paper index
90gsm--160gsmRing crush index(N.m/g)≥6 (Water containing8-10%)
Space
≈Lmin46m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)
