3 Ply Corrugated Cardboard Production Line Carton Box Making Machine

Share to:

3 Ply Corrugated Cardboard Production Line Carton Box Making Machine

Availability:

Quantity:



Inquire Add to Basket

Type:
Packaging Line
Applicable Industries:
Manufacturing Plant, packaging
Condition:
New
Application:
Machinery & Hardware, packaging
Packaging Type:
Cartons
Packaging Material:
Paper, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
China
Brand Name:
XINGLONG
Dimension(L*W*H):
About 60m*4.3m*4.5 m (L*W*H)
Certification:
CE ISO
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Key Selling Points:
Long Service Life
Max Effective width:
1600mm
Design spee:
80m/min
Working speed:
0-60m/min

Product Description

Product Description

3/5/7 ply corrugated cardboard production line

Main Technology Parameters
Model	WJ80-1600
Max Effective width	1600mm
Design spee	80m/min
Working speed	0-60m/min
Steam pressure and consumption	Pressure: 1-1.3Mpa consumption: 1800kg/h
Air pressure and consumptio	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min
Cutting length and precisio	500-9999mm ±1mm
Total powe	About 150kw
Total lengt	About 60m (depend on base drawing)
Dimensio	About 60m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.

Note: some parts equipped by consumers

1. Steam system: one set steam boiler that rate capacity is 2t/h, rate pressure 1.25-1.3Mpa
2. Compressed air tube, glue pipe, steam pipe and water return pipe
3. Water, electricity, gas installation ground work.
4. Equipment machine grease, lubrication oil, hydraulic oil, lubrication grease and high temperature grease.
5. Test paper, corn starch, industry CaOH, borax
6. Food and drink, hotel for installation and training people.
7. Common tools and accessories

Other Models:

Mode	WJ80-1600	WJ80-1800	WJ80-2000	WJ80-2200	WJ80-2500
Max Effective width	1600mm	1800mm	2000mm	2200mm	2500mm
Design speed	80m/min	80m/min	80m/min	80m/min	80m/min
Working speed	0-60m/min	0-60m/min	0-60m/min	0-60m/min	0-60m/min
Steam pressure and consumption	Pressure: 1-1.3Mpa consumption: 1800kg/h	Pressure: 1-1.3Mpa consumption:1800kg/h	Pressure: 1-1.3Mpa consumption:1800kg/h	Pressure: 1-1.3Mpa consumption:1800kg/h	Pressure: 1-1.3Mpa consumption:1800kg/h
Air pressure and consumption	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min
Cutting length and precision	500-9999mm ±1mm	500-9999mm ±1mm	500-9999mm ±1mm	500-9999mm ±1mm	500-9999mm ±1mm
Total power	About 150kw	About 150kw	About 150kw	About 200kw	About 200kw
Total length	About 60m (depend on base drawing)	About 60m (depend on base drawing)	About 60m (depend on base drawing)	About 60m (depend on base drawing)	About 60m (depend on base drawing)
Dimension	About 60m×4.3m× 4.5 m (L×W×H)	About 60m×4.3m× 4.5 m (L×W×H)	About 60m×4.5m× 4.5 m (L×W×H)	About 60m×4.7m× 4.5 m (L×W×H)	About 60m×5m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine

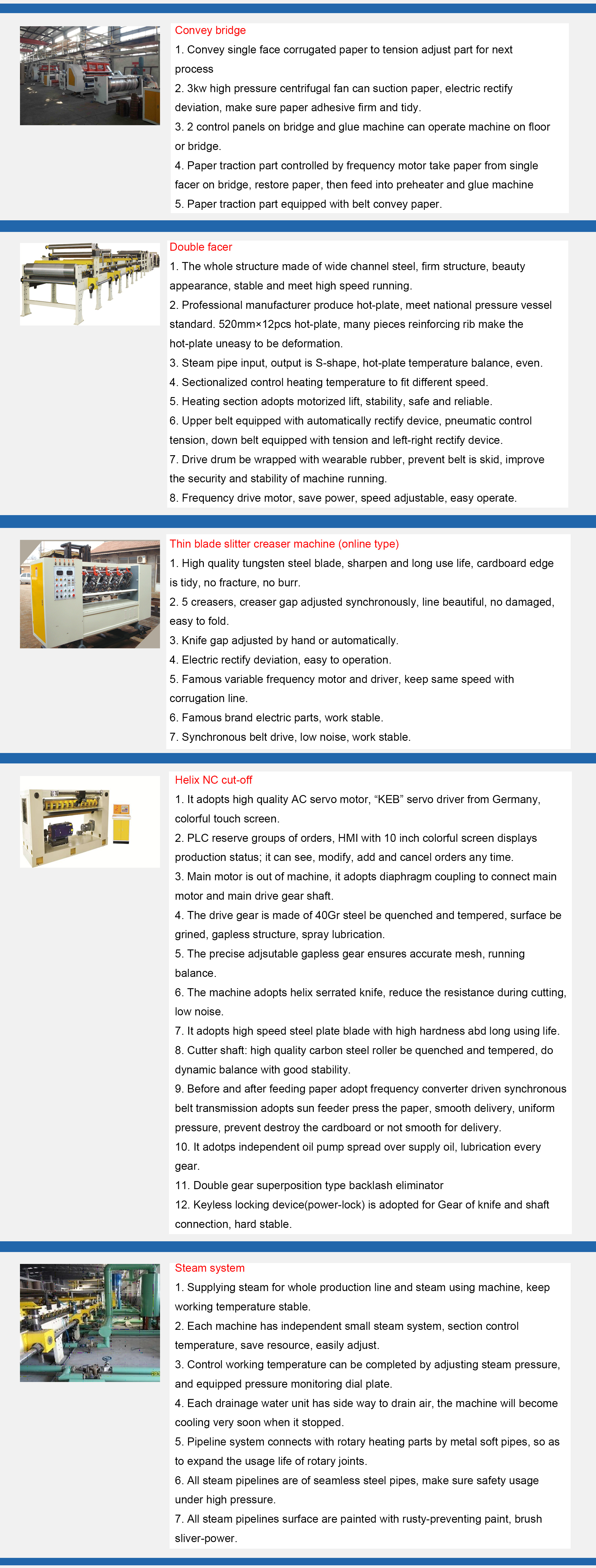

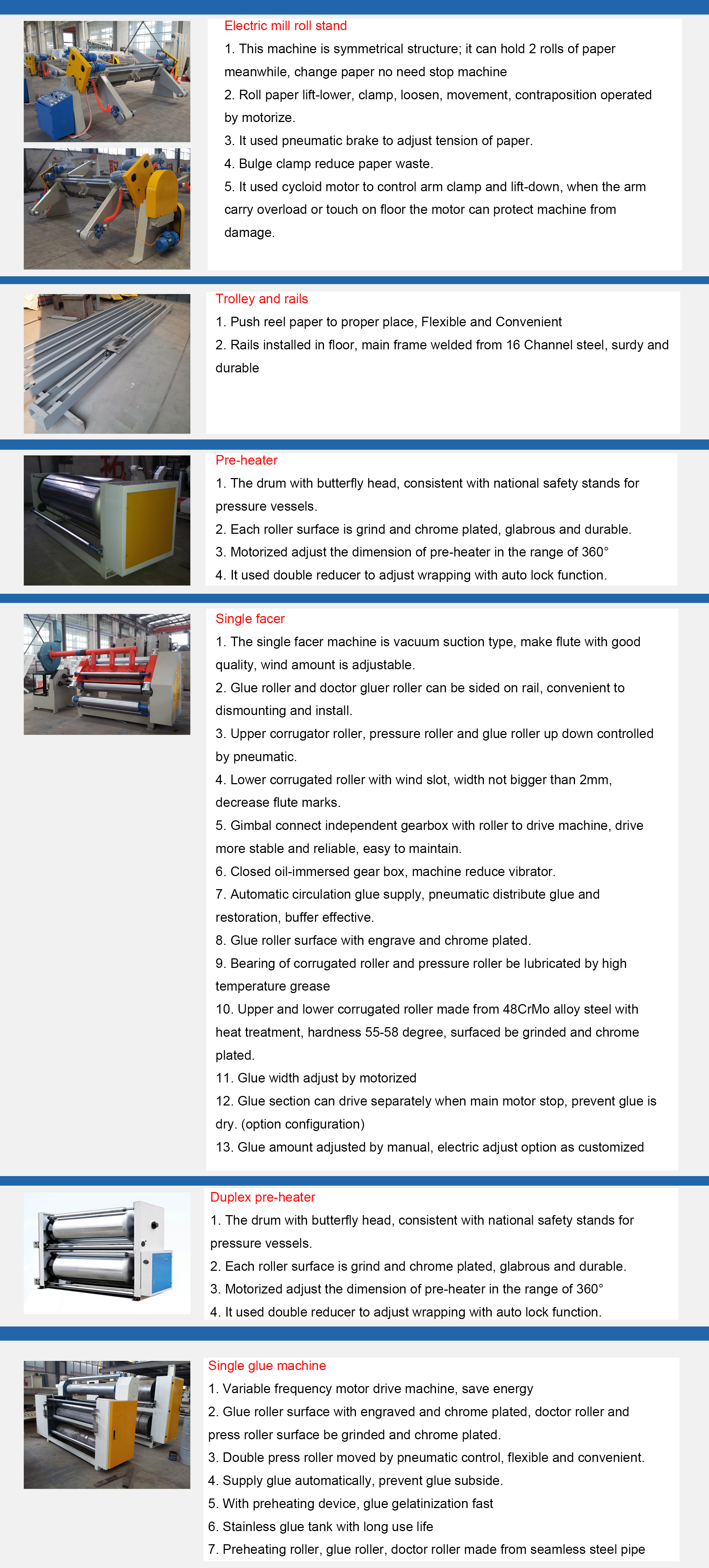

Machine Detail:

After Sales Service

1. We can send engineers to users factory install machine and traininng.

2. we will provide layout, elecric drawing and related documents
3. warranty: 1year

FAQ

1. Q: Are you a manufacturer, trading company or a third party?A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.2. Q: How does your factory do regarding quality controlling?A: 1) All raw material we used are environmental-friendly2) Skillful workers care every details in handling the producing and packing process3) Quality control department are specially responsible for quality in each processWe have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.3. Q: What is the payment terms?A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.4. Q: How about the after-sale service?A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.2) To solve the problems with videos/pictures.3) One year warranty for spare parts change.
