3/5/7 Layer Corrugated Cardboard Production Line

  • Packaging Line

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Cigarettes, Tobacco

  • Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Film, Foil, Belt

  • Paper, Wood

  • Automatic

  • Steam

  • 220v/380v

  • Hebei, China

  • Xinglong

  • 60-70tons

  • CE

  • 1 YEAR

  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

  • High-accuracy

  • Ordinary Product

  • Provided

  • Provided

  • 1 YEAR

  • Gear, Engine

  • 60/80/100/120/140/160/180m

  • 1600 /1800/ 2000/ 2200mm

  • 1600 1800 2000 2200

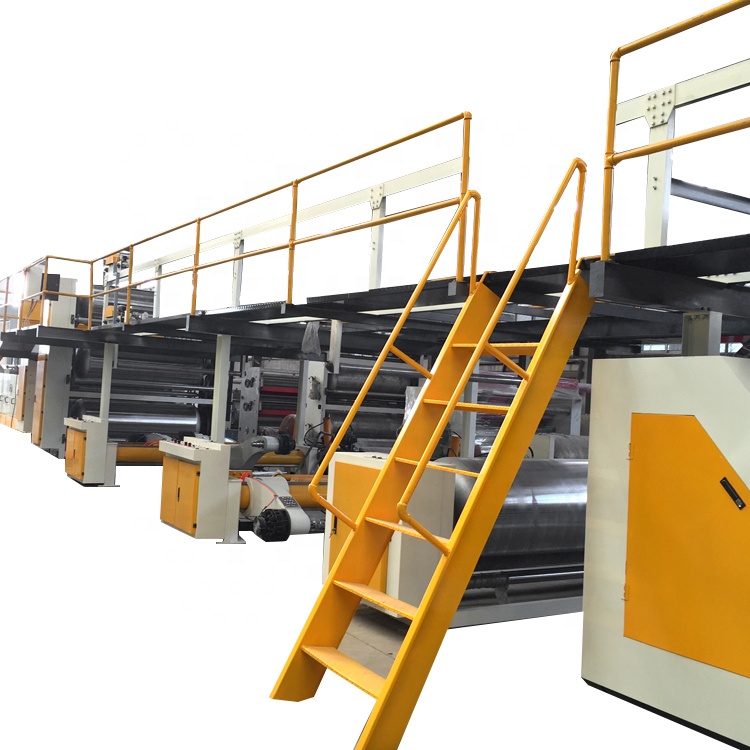

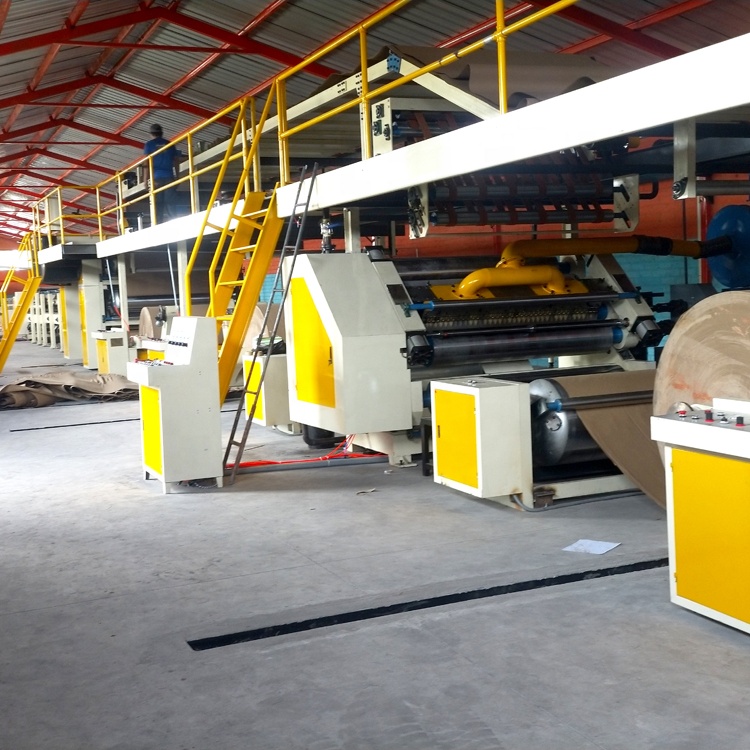

3/5/7 Layer Corrugated Cardboard Production Line

Our company specialize in produce 3,5,7ply corrugated cardboard production line, we have width from 1400mm-2500mm is available. Different speed and grade depend on different users, have Mechainical and fully computer control production line.

Main equippment list
1. mill roll stand (mechanical and hydraulic shaftless is available)
2. splicer(option, it is used for high speed production line)
3. single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe

Main technology parameter

Model WJ120-1800
Effective width 1800mm
Design speed 120m/min
Working speed 0-100m/min
Steam pressure and consumption Pressure: 1-1.3Mpa   consumption: 2500-3200kg/h
Air pressure and consumption Pressure: 0.8-1.0Mpa   consumption: 1.3m³/min
Total power About 200kw
Total length About 80m(depend on base drawing)
Dimension About 80m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.
