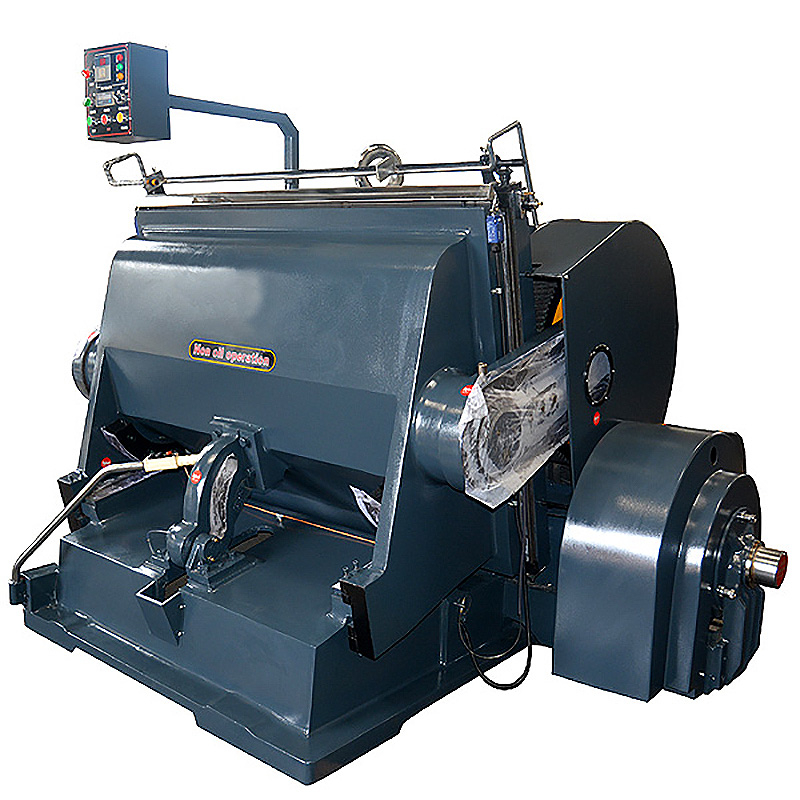

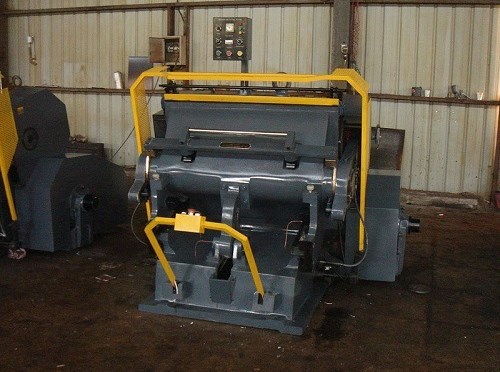

2019 newest carton box paper board die cutting and creasing machine

Quantity:
  • Packaging Line, Die cutting and creasing machine corrugated paperboard box machinery
  • Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Advertising Company
  • New
  • Apparel, Commodity, Food, Medical, Textiles, Beverage, Chemical, Machinery & Hardware
  • Film, Case
  • Plastic, Wood
  • Automatic
  • Electric
  • 3PH 410/380v50hz customized
  • Hebei, China
  • Xinglong
  • customized
  • about 5000kg
  • CE certification
  • 1 YEAR, 1 year
  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
  • Long Service Life
  • 2017 newest die cutting and creasing machine
  • Customized
  • 60pcs/min
  • 1800*1300mm
  • 16±2(strokes/min)
  • 15KW
  • plastic or no package

2019 newest die cutting and creasing machine

Product Description


Use and Characteristics:

1. The four safety protection system for gate, triangle, handle, light-operated, it is more safety.

2. Four functions: single cutting, continuous cutting, working in delay time and counting.

3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.

4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.



Main Technology Parameters:

Model

Max effective area

Working speed

WACRULELENGTH

Motor power

Weight

PYQ203D

930×670mm

23±2(strokes/min)

<25m

3.0kw

3000kg

ML1100

1100×800mm

20±2(strokes/min)

<32m

4.0kw

4500kg

ML1200

1200×830mm

20±2(strokes/min)

<35m

4.0kw

4800kg

ML1300

1300×920mm

18±2(strokes/min)

<40m

5.5kw

6000kg

ML1400

1400×1000mm

17±2(strokes/min)

<45m

5.5kw

6800kg

ML1500

1500×1050mm

16±2(strokes/min)

<45m

5.5kw

7500kg

ML1600

1600×1250mm

16±2(strokes/min)

<50m

11kw

11000kg

ML1800

1800×1300mm

16±2(strokes/min)

<62m

15kw

13500kg









FAQ


1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.


2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


4. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.


5. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
