2000mm B flute corrugated carton cardboard machines

Availability:
Quantity:
  • Packaging Line

  • Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles

  • Cartons, Film

  • Plastic, Wood

  • Automatic

  • Electric

  • 380V/50HZ

  • Hebei, China

  • XING LONG

  • 660*320*210mm

  • about 9tons

  • CE

  • 1 YEAR, 12 Months

  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service

  • 200mm B flute corrugated carton cardboard machine

  • A,B,C,E,UV

  • 60-120 meters/min

  • Customize

  • 380V, 50HZ

  • High Efficiency

  • Wooden Case

  • Customizable

  • Engineers Avialable Service Oversea

2000mm B flute corrugated carton carboard machines

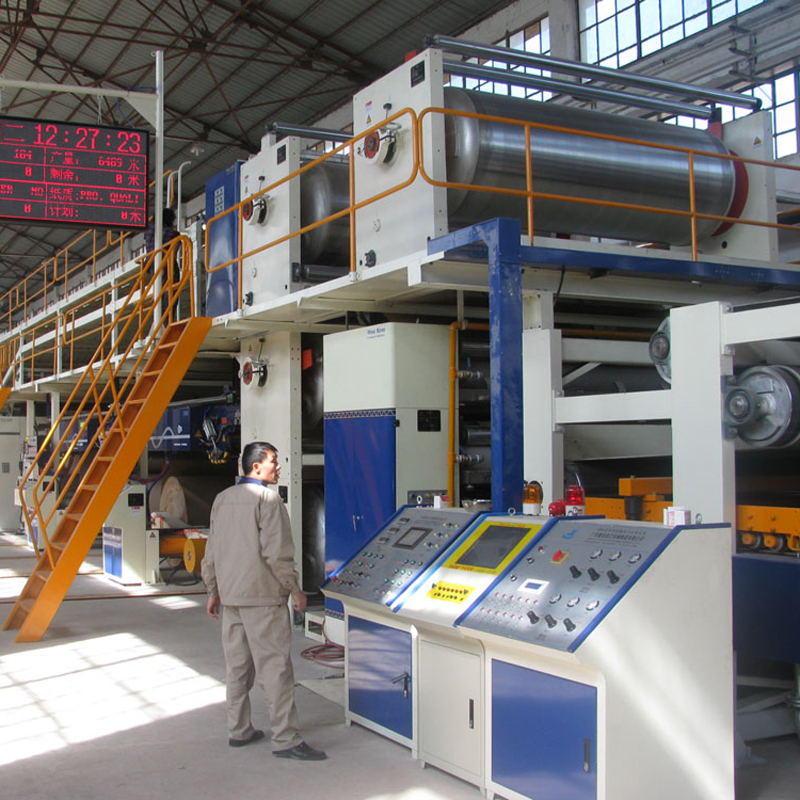

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, liner preheater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air cmpression system and gue making system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad,our company has developed and designed these production lines with the speed 60-220m/min, the paper width 1600-2200mm and A,B,C,E,UV flute production line can satisfy different customrs.


Box making machine main units:

No.

Name

Sets

Comment

1

Mill roll stand

Electric mill roll stand , expansion dop top, pneumatioc  brake

    2

Trolley

Include slide way

     3

Pre-heater

Φ800, electric adjust heating area

4

Single facer

Vac-sorb,φ320  alloy roller  ,cardan drive

5

Conveyor bridge

Electric collection, adsorption tension

6

Triply pre-heater

φ 800, electric adjust heating area

7

Gluing machine

Frequency Synchronous transmission

8

Dring part

520mm*15pcs heat plate, with up down tension pressure roller  (with quality certificate)

9

Cooling part

With up down tension pressure roller, length is 4meters

10

Main drive

Adjustable speed motor

11

Conveyor belt

Quality cotton woven belt, electric lift

12

NC cut-off

Computer control, Straight knive

13

Slitter scorer

5blades8scores, electric collection, alloy blade

14

Make paste system

With horizontal output

15

Glue making system

Automatic recycle send glue

16

Electric control system

2control desk of single facer , 1 of main drive, 1of NC cut-off

17

Air compressor

Electric charging

18

Steam heating system

Without boiler and main pipe

Drawing:









1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
