1800mm
xinglong
Fold Corrugated Cardboard and Stakcer Machine
Make Corrugated Cardboard
Corrugated Cardboard Production Line
China, Hebei
1 Year
Video Technical Support
Ordinary Product
Provided
Provided
High Efficiency

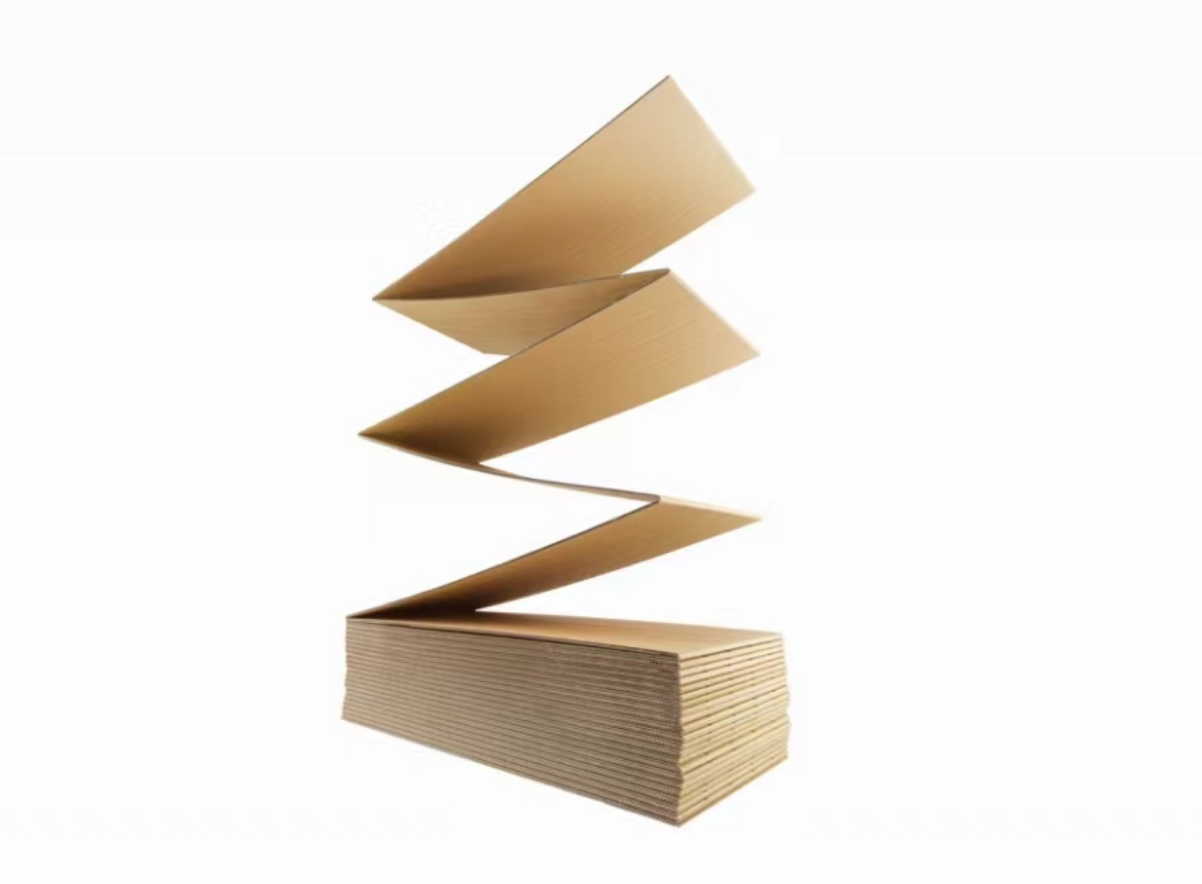

1800mm ''Z'' Type Fold Cardboard and Stacker Machines (Swing Type)
NO. | ITEM NAME | SPECIFICATIONS |
A | Auto Transportation | Transfer the cardboard which after creasing to the stacker of the corrugated line backend. |
B | Computer touch line machine | Computer control, AC servo drive. |
C | Auto pre- Folding part | Lift the transported continuous cardboard to the right height, and transfer the transverse cardboard over, vertically Send it to the automatic creased part or to the artificial creases. |
D | Auto Folding part | Automatic creases, stack to the tray or logistics department interconnected system. |
E | Online electrical control part | Automatic synchronization, automatic count, automatic control. |

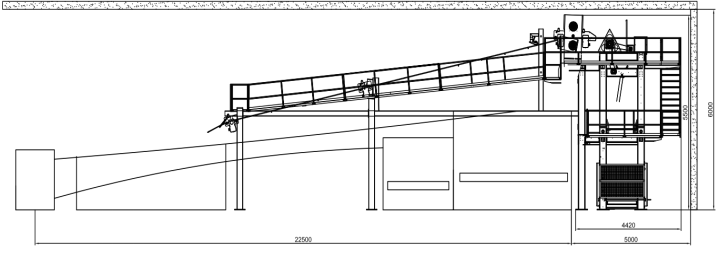

PROJECT LAYOUT:
BASIC FUNCTIONS
The qualified corrugated board produced by the corrugated board production line enters the continuous board stacking machine, the conveying part of the continuous stacking machine delivers the corrugated board to the computer horizontal press, and automatically tracks it according to the production speed.
Continuous cardboard longitudinal cutting machine, AC servo control, automatic ordering, the continuous cardboard according to the set size, longitudinal cutting, and transported to the computer horizontal press.
Continuous cardboard computer horizontal press, AC servo driver control AC servo motor, according to the feed measurement meter wheel data, according to the set size, the corrugated cardboard horizontal indentation.
The continuous reactor prefold part is responsible for folding the delivered cardboard with transverse indentation vertically, and turning to the downward delivery. Automatically follow the production speed.
Continuous stacking machine automatic folding part, responsible for automatic prefolding of continuous cardboard folding, and piled into the tray or logistics system, according to the order requirements, automatic stacking, automatic output.

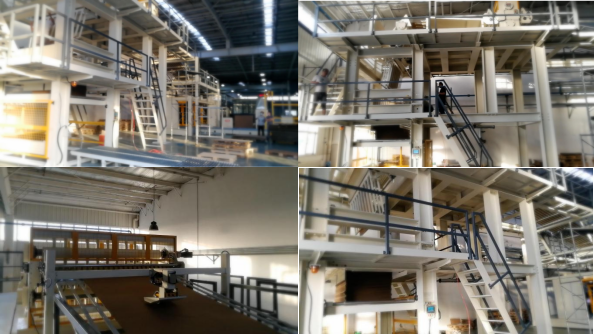

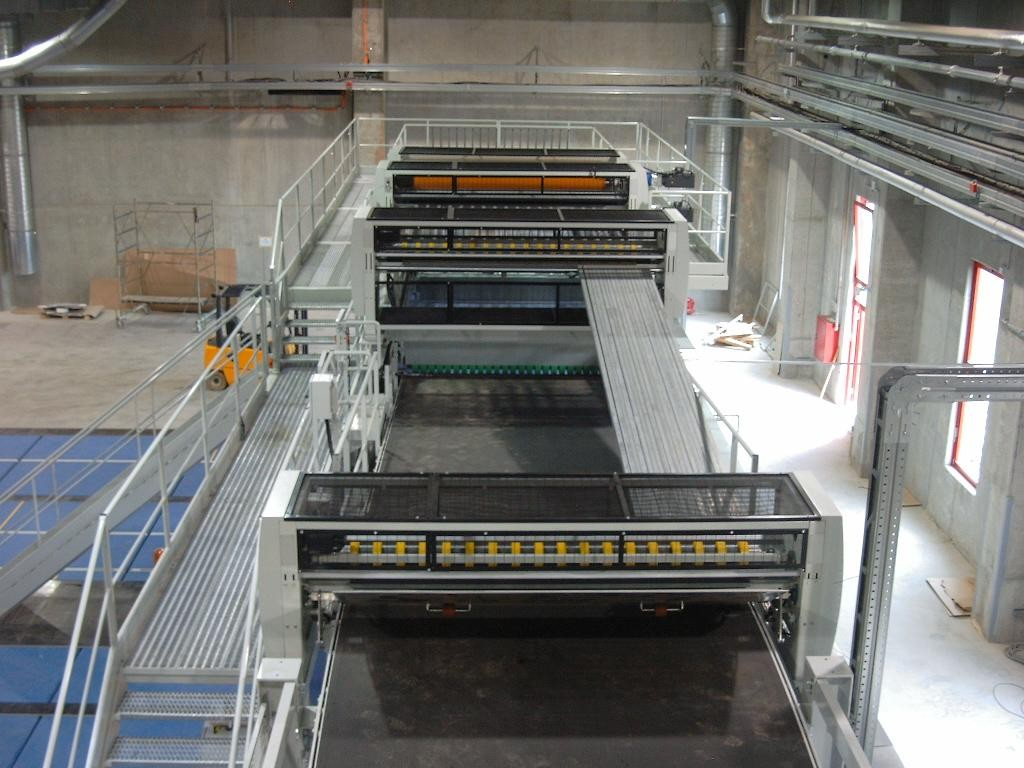

PHOTO OF THE SCENE
BASIC PARAMETERS： | |
Model | 1800-100 |
Max. Paper Collecting Width | 1800mm |
Paper collecting length | 900-1500mm |
Stacking height | Max.1200mm |
Line speed | 180m/min |
Dimension（mm） | 25500×4300×8500 |
Total weight | About 13.5t |
