1200mm corrugated carton box stitching making machine servo stitcher

Share to:

1200mm corrugated carton box stitching making machine servo stitcher

Availability:

Quantity:



Inquire Add to Basket

Type:
Other
Warranty:
1.5 years
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company, packaging
Condition:
New
Application:
carton
Packaging Type:
Case, container
Packaging Material:
Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V
Power:
0.37KW
Place of Origin:
Hebei, China
Brand Name:
XINGLONG
Weight:
500KG
Dimension(L*W*H):
1900*650*1600mm
Certification:
CE
Key Selling Points:
Long Service Life
Arm effective length:
1200mm
Total height:
1600mm
Seat length:
1330mm
Stitching speed:
150-450times/min
Stitching thickness:
3ply, 5ply, 7ply
Applicable stitching:
2.25mm*0.75mm 1.80mm*0.59mm(w*h)
Motor power:
0.37KW
After-sales Service Provided:
Engineers available to service machinery overseas

Product Description

Product Description

Manual Box Stitching Machine
Model	DXJ-1200	DXJ-1400
Arm effective length	1200mm	1400mm
Total height	1600mm	1600mm
Seat length	1500mm	1500mm
Stitching speed	250times/min	250times/min
Stitching thickness	3ply, 5ply, 7ply	3ply, 5ply, 7ply
Applicable stitching	1.80mm0.59mm(wh)	1.80mm0.59mm(wh)
Motor power	0.37kw	0.37kw
Weight	450kg	500kg
Dimension	1900×650×1600mm (L×W×H)	2100×650×1600mm (L×W×H)

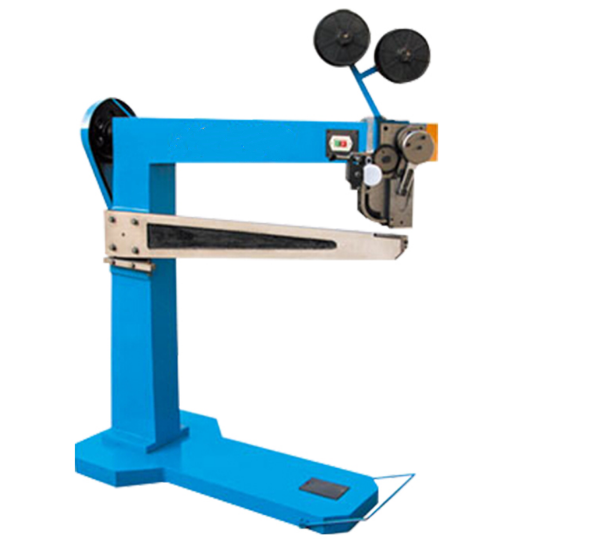

DXJ Series
Manual Box Stitching Machine

The DXJ Box stitching machine adopts double eccentric wheel structure, pressure angle used suitable cutter point. The interchangeability assembling parts adopt rolling bearing so machine run more stable and faster, stitch fixable, long time use life.

Servo Manual Stitching Machine
Model	DXJ-1200	DXJ-1400
Arm effective length	1200mm	1400mm
Total height	1600mm	1600mm
Seat length	1330mm	1500mm
Stitching speed	150-450times/min
Stitching thickness	3ply, 5ply, 7ply
Applicable stitching	2.25mm0.75mm 1.80mm0.59mm(w*h)
Motor power	0.37kw	0.37kw

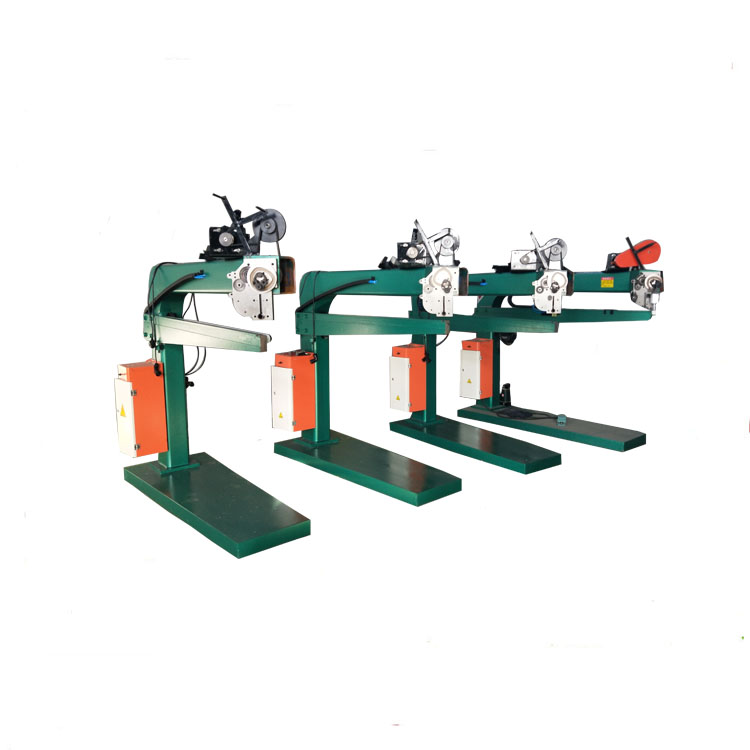

DXJ Servo type

manual stitching machine

1.This stitcher machine use the advantages of servo motor and driver to release sudden stop and sudden start, it replace the machine clutch and electrical clutch, also improve the stitching precision and use lift.

2.Double servo and single type option, speed is adjustable, so it is no requirement to operator’s skill.

3.Stitching head simple and easy to maintains, adopt cam revolving transmission, stitch head use alloy blade, rod use bearing connect rod, can reduce friction, prolong using life.

4.Paper feeding part use servo controller, accurate pitch of nails, no requirements to operator.

FAQ

1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are
also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned
us a high reputation among the customers.

3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.

4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
