Indian customer inspecting auto folder gluer machine

Views: 22     Author: Site Editor     Publish Time: 2019-12-13      Origin: Site

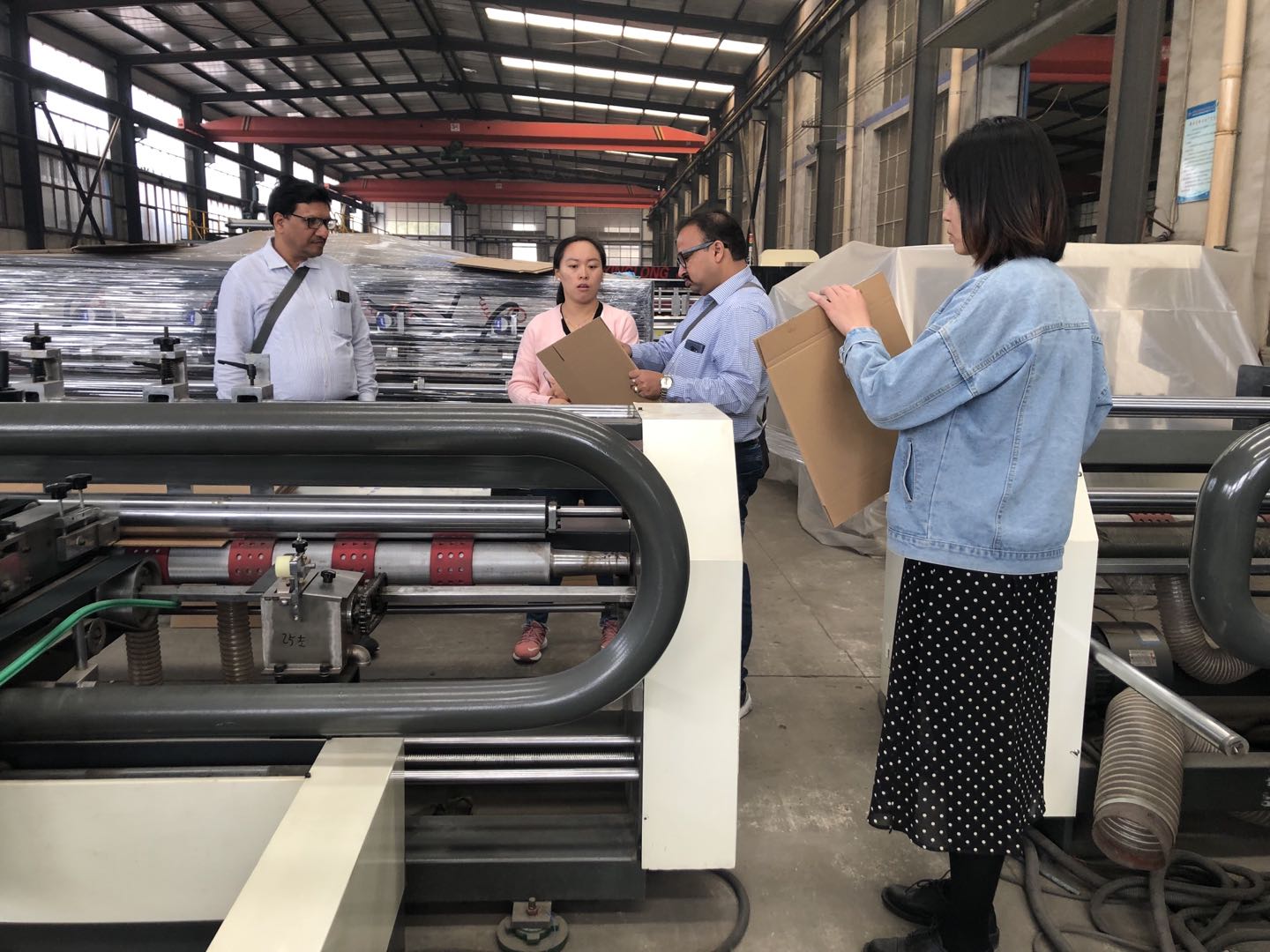

Indian customer inspecting auto folder gluer machine

微信图片_201912130844271

Main Technology Parameters:微信图片_201912130844272

Model

ZXJ-Q2600

ZXJ-Q2800

ZXJ-Q3000



Max cardboard   size

1200×2400

1200×2600

1200×2800


Min cardboard   size

170*450

170*450

170*450


Dimension

L12500×W3000×H1600

L12500*W3200*H1600

L12500*W3400*H1600


Motor power

10kw

12kw

12kw


Machine weight

5500kg

6500kg

7500kg

Application   board thickness

3layer or 5layer

Machine instruction

The machine includes feeding part, gluing and folding part, counting and stacking part. Digital control, PLC adjust widthoptionalConventional models without, double frequency motor working synchronous, control easy, fast, accurately. Feed, glue folder, count and stack automatically, high speed, save labor cost.


微信图片_20191211113912

Feeding part

l  Adopt belt lead edge feeder with suction, working accurately.

l  Adopt high grade electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation

l  Height of press wheel is be adjusted , suitable sheet thickness 2-8mm

l  Use frequency motor working with folding part together, feeding speed 0-150m/min

l  Front baffle and belt is be moved.

微信图片_20191211113947

Glue and fold part

l  Frequency motor, no noise, speed adjustable fast and stable

l  Use import high friction belt feed sheet, stack automatically.

l  Use stainless steel wheel gluing, glue amount average, no fault and save glue

l  Fold part equipped with correction and crease device

l  Fold part equipped with two row adjustable guide wheel, high precision

l  Fold speed 0-150m/min

微信图片_20191211113920

Count and stack part

l  Automatic stacking, output tidiness

l  counting part with frequency motor, speed adjustable, working stable

l  Belt feed out carton, stack tidiness, speed 0-130m/min

l  Lapping plate beat carton, correction, small error.

l  Count and feed out by pneumatic work, PLC control, fast and accurately

l  Use PLC and touch screen, easy work, it can input data non stop machine, count automatically.

l  Feed out part equipped with bottom out belt and upon press belt, press synchronously, carton glue firmly, tidiness no mismatch.
