Automatic corrugated cardboard folder gluer carton box making machinery

Availability:
Quantity:
  • Gluing Machine

  • Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop

  • New

  • Food, Beverage, Commodity

  • Cartons

  • Paper

  • Automatic

  • Electric

  • 220v/380v customized

  • Hebei, China

  • Xinglong

  • 12500*3000*1600

  • 5500kg

  • CE

  • 1 YEAR

  • Field installation, commissioning and training, Video technical support, Online support

  • High-accuracy

  • 3layer or 5layer

  • 1200mm*2400mm

  • 170mm*450mm

Automatic corrugated cardboard folder gluer carton box making machinery

      The machine includes feeding part, gluing and folding part, counting and stacking part. Digital control, PLC adjust width(optional,Conventional models without), double frequency motor working synchronous, control easy, fast, accurately. Feed, glue folder, count and stack automatically, high speed, save labor cost.
Product Description

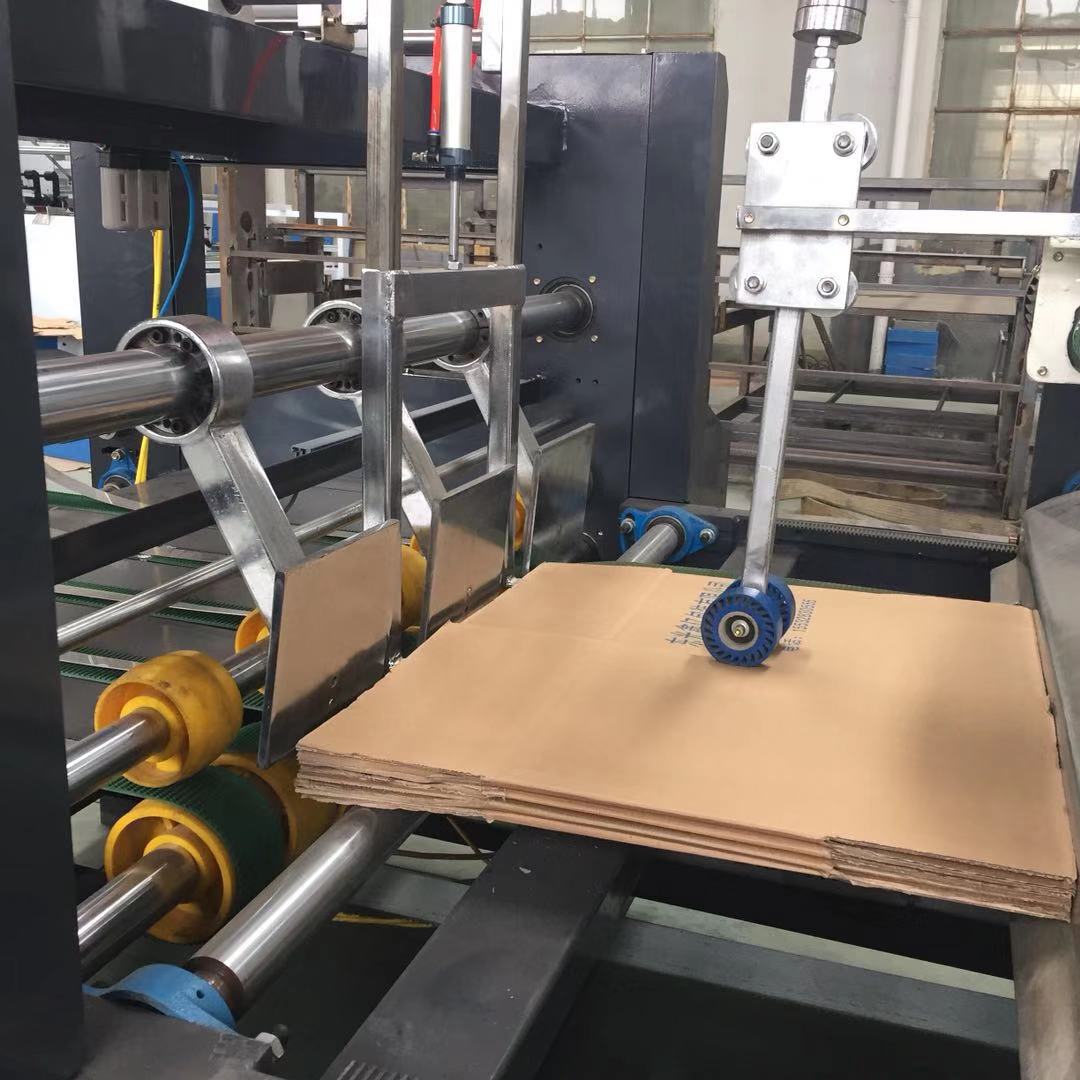

Feeding part
*Adopt belt lead edge feeder with suction, working accurately.
* Adopt high grade electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation Height of press wheel is be adjusted , suitable sheet thickness 2-8mm
* Use frequency motor working with folding part together, feeding speed 0-150m/minFront baffle and belt is be moved.

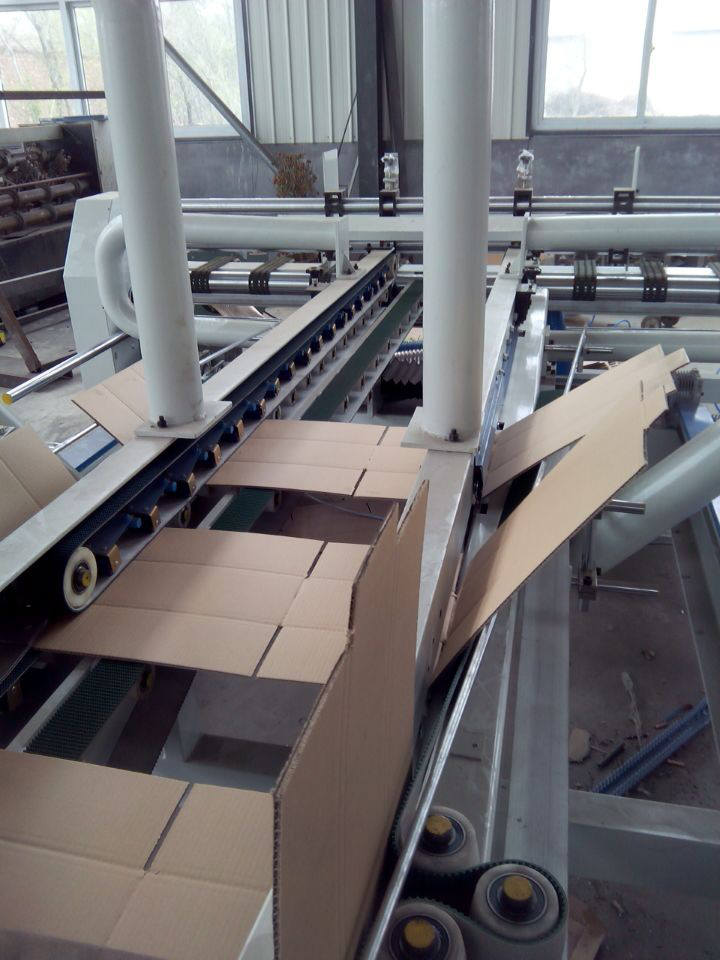

Glue and fold part
*Frequency motor, no noise, speed adjustable fast and stable
*Use import high friction belt feed sheet, stack automatically.
* Use stainless steel wheel gluing, glue amount average, no fault and save glue
*Fold part equipped with correction and crease device *Fold part equipped with two row adjustable guide wheel, high precisionFold speed 0-150m/min
Count and stack part
* Automatic stacking, output tidiness*counting part with frequency motor, speed adjustable, working stable* Belt feed out carton, stack tidiness, speed 0-130m/min*Lapping plate beat carton, correction, small error. *Count and feed out by pneumatic work, PLC control, fast and accurately*Use PLC and touch screen, easy work, it can input data non stop machine, count automatically.*Feed out part equipped with bottom out belt and upon press belt, press synchronously, carton glue firmly, tidiness no mismatch.
Size Information
Model
ZXJ-QⅠ2600
ZXJ-QⅠ2800
Max cardboard size
1200×2400
1200×2600
Min cardboard size
170*450
170*450
Dimension
L12500×W3000×H1600
L12500*W3200*H1600
Motor power
10kw
12kw
Machine weight
5500kg
6500kg
Application board thickness
3layer or 5layer

Size Chart of This Design
Carton Size:

Model

ZXJ-QⅠ2600
ZXJ-QⅠ2800
A
Max
880mm
880mm

Min
80mm
80mm
B
Max
2400mm
2600mm

Min
700mm
700mm
C
Max
840mm
840mm

Min
160mm
160mm
D
Max
1200mm
1200mm

Min
300mm
300mm
