American customer come to order automatic printing slotting carton machine

Views:15     Author:Site Editor     Publish Time: 2019-10-27      Origin:Site

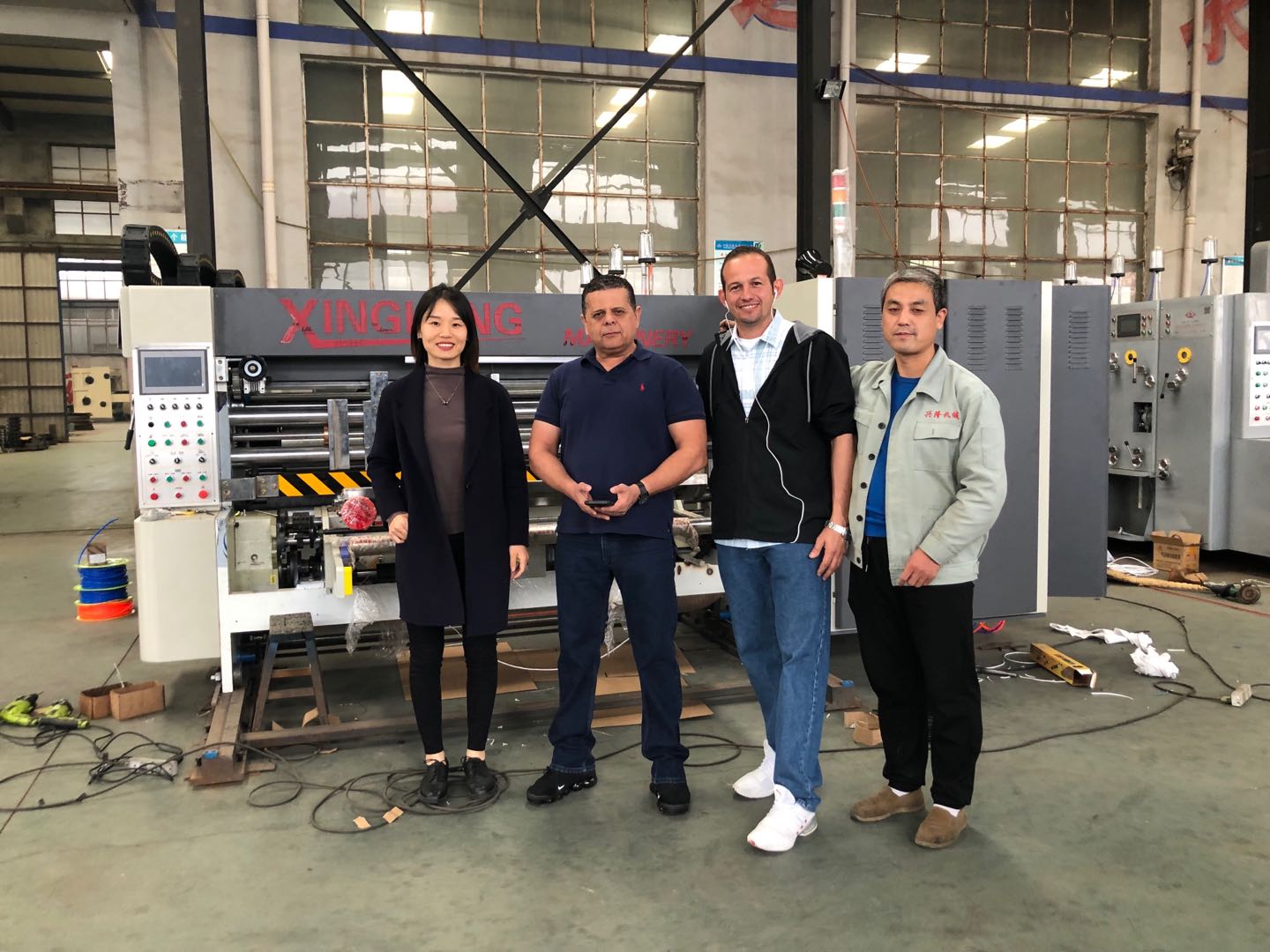

American customer visited and ordered automatic carton machienry box color printing slotting machine

Performance and Characteristics

  • The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.

  • Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

  • All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

  • Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

  • The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

  • The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

  • Motorized digital phase adjustment with "automatic zero return" and "memories" function ( options: PLC control with touch screen)

  • The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

  • Main motor is VFD, working stability, low power consumption.

Specification:

Model  QYKMA405-2600 QYKMA480-2600
Machine inside width (mm) 2600 2600
Max feeding paper size(mm) 1200*2400 1450*2400
Max effective printing size(mm) 1200*2200 1450*2200
Min coverage size(mm) 350*500mm 350*500mm
Min slotting space(mm) 190*50*190*50 190*50*190*50
Design speed 100pcs/min 100pcs/min
Working speed 60-80pcs/min 60-80pcs/min
Standard Thickness of printing plate 6mm 6mm
Printing precision ±0.75mm ±0.75mm
Thickness of cardboard 1.2-9mm 1.2-9mm
Wall thickness 40mm 40mm
Main motor power About 11kw About 11kw
