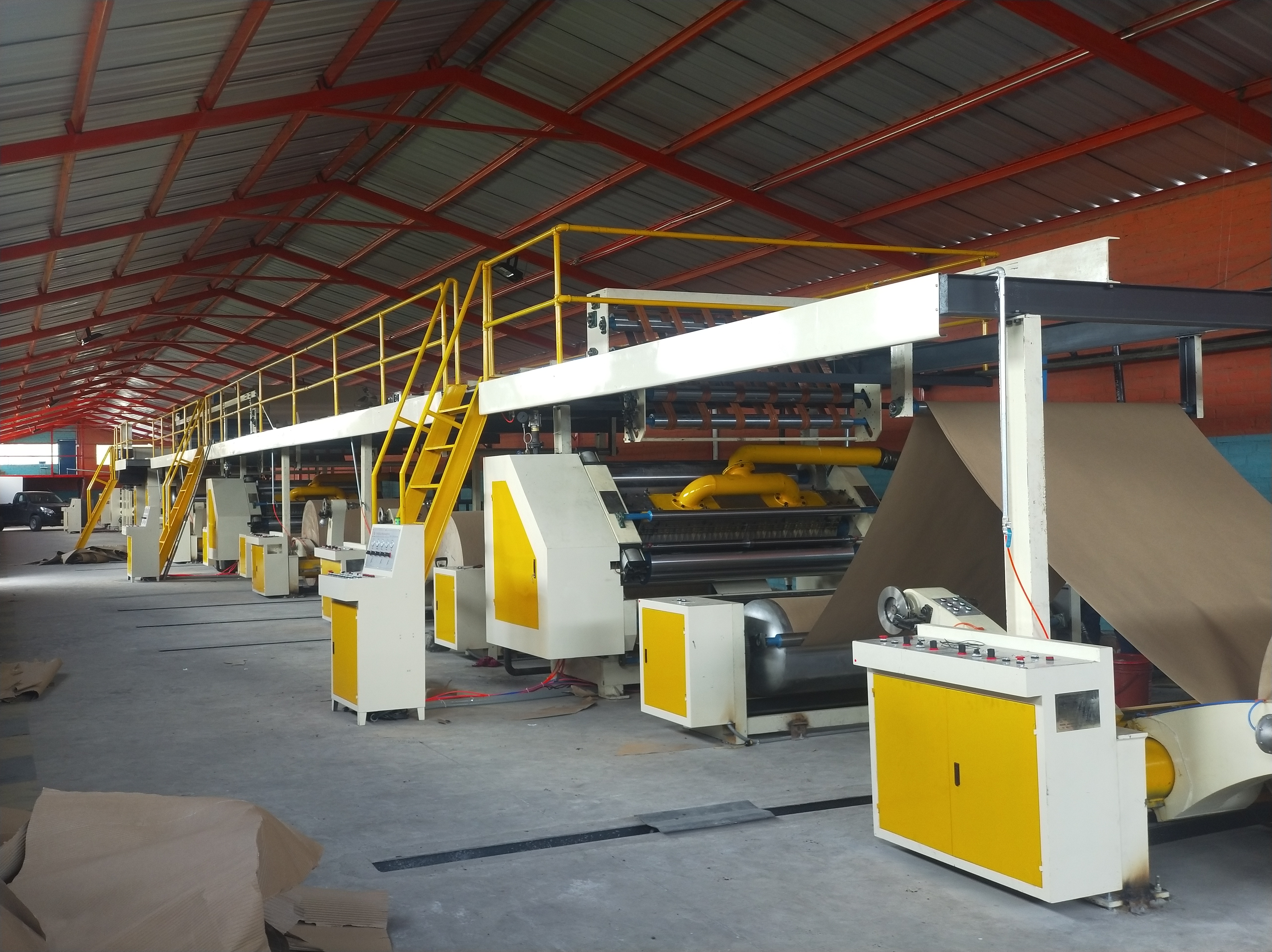

5 ply corrugated cardboard installing at Ecuador customer factory

Views:6     Author:Site Editor     Publish Time: 2019-10-26      Origin:Site

5 ply corrugated cardboard production line

微信图片_201910261432205

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .
The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.

Main equippment list
1. Mill roll stand (mechanical and hydraulic shaftless is available)
2. Splicer(option, it is used for high speed production line)
3. Single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)

Main technology parameter

Model WJ120-1800
Effective width 1800mm
Design speed 120m/min
Working speed 0-100m/min
Steam pressure and consumption Pressure: 1-1.3Mpa   consumption: 2500-3200kg/h
Air pressure and consumption Pressure: 0.8-1.0Mpa   consumption: 1.3m³/min
Total power About 200kw
Total length About 80m(depend on base drawing)
Dimension About 80m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.

微信图片_2019102614322130
